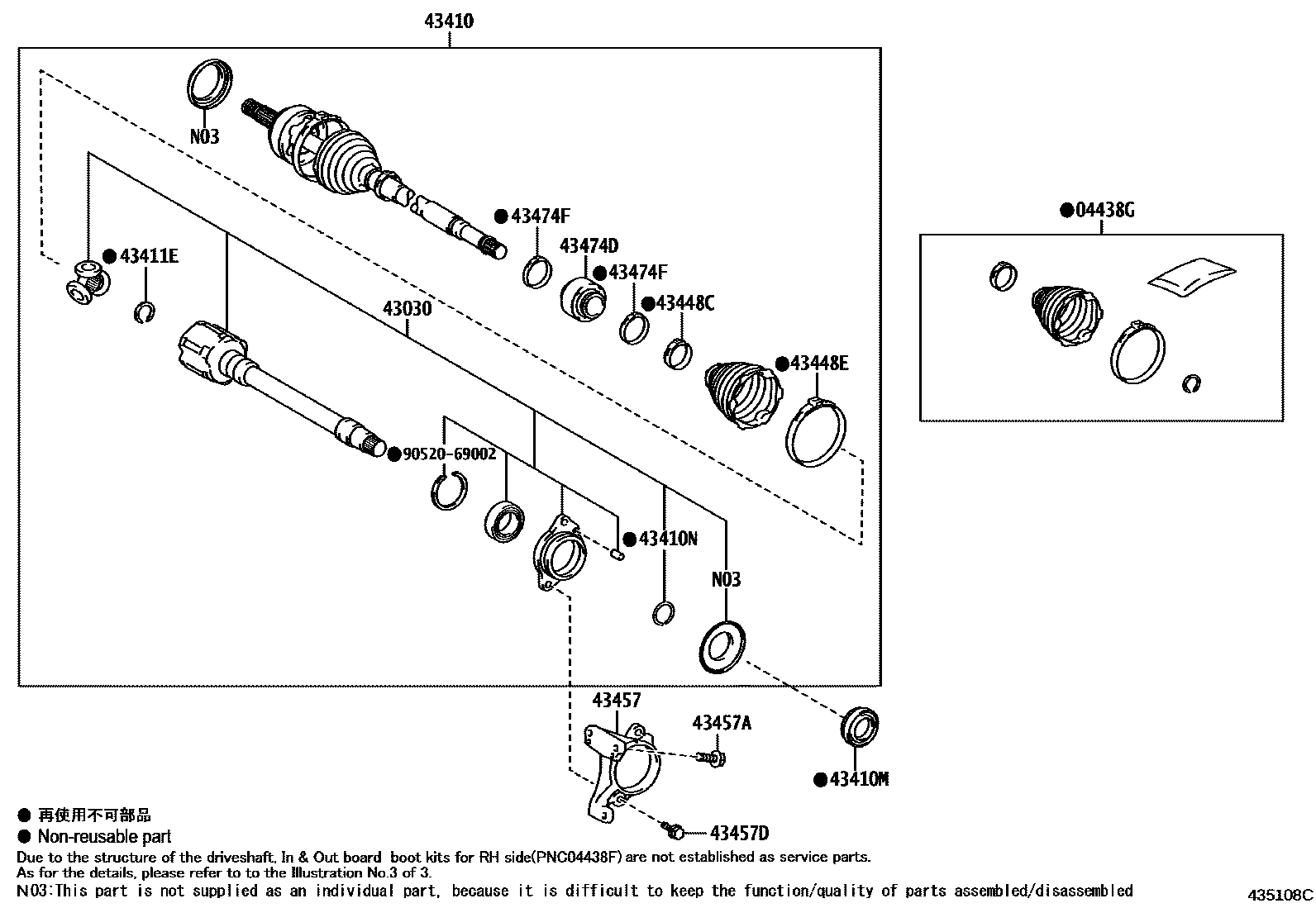

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1RH 0004 1LH 0005 1

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-0E030iAALH15,TALA1#,TALH17202210

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-0E290iAALH15,TALA10202210

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-0E450iTALA15202210

main43410-0E460iAALH15,TALA10202210

main43410-0E470iTALH17202210

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40046iAALH15,TALA10,TALH17202210

main90316-34001iTALA15202210

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-0E200iAALH15,TALA10,TALH17202210

main43425-0E210iTALA15202210

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-0E190iAALH15,TALA1#,TALH17202210

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0E490iAALH15,TALA1#,TALH17202210

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0E590iAALH15,TALA1#,TALH17202210

43457BRACKET, DRIVE SHAFT BEARING

main43457-06090iAALH15,TALA10,TALH17202210

main43457-42190iTALA15202210

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90080-10087iAALH15,TALA1#,TALH17202210

*10-1.25PX32-29.5

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-A0259iAALH15,TALA10,TALH17202210

main90119-10461iTALA15202210

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-F6030iAALH15,TALA1#,TALH17202210

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-0E270iAALH15,TALA1#,TALH17202210

9052069002

main90520-69002

14 parts on this diagram · 5 diagrams in section
