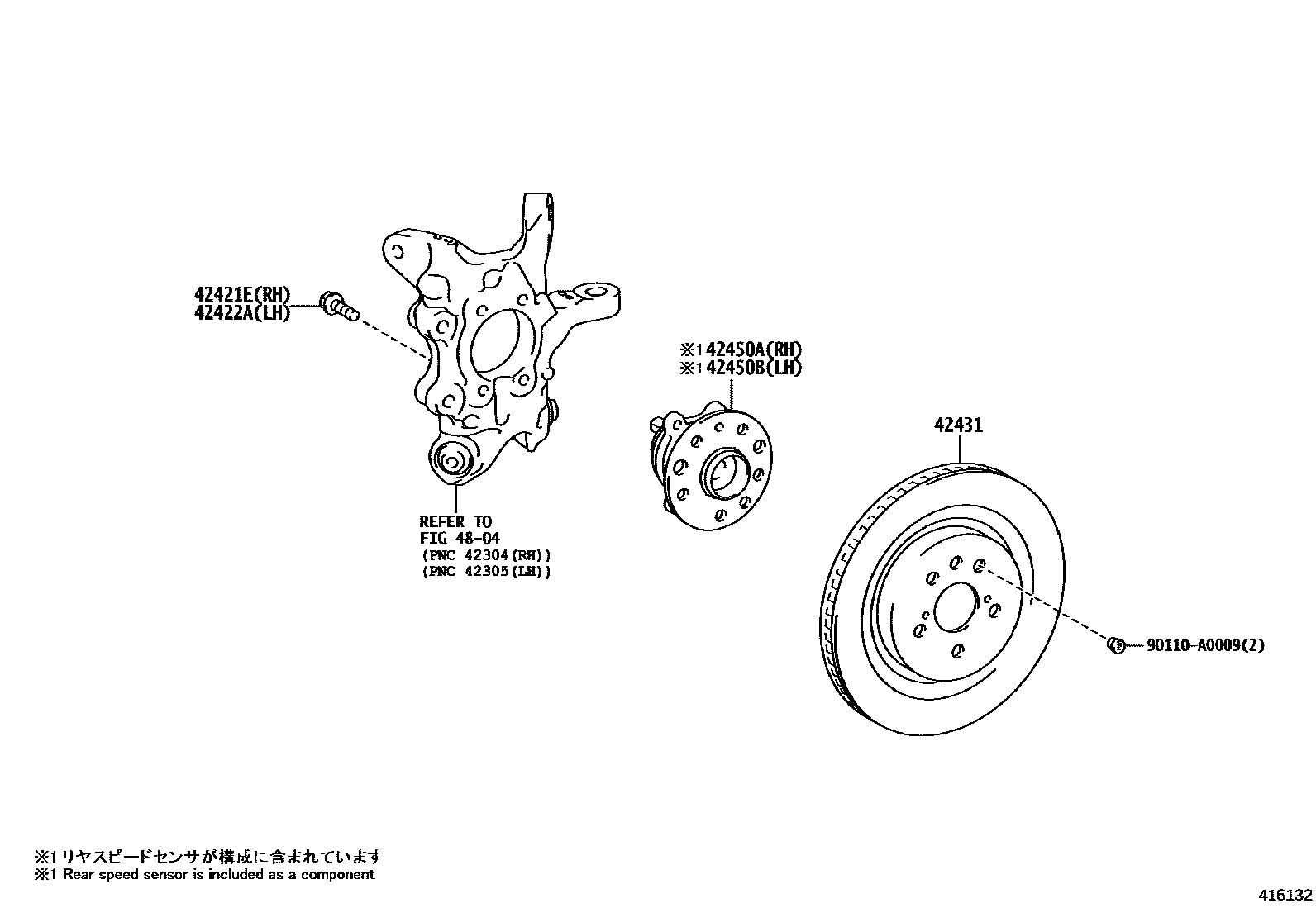

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90110-12017×4iAALH15,TALA1#,TALH17202210

(J)

main90110-A0012×4iAALH15,TALA1#,TALH17202210

(L)

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90110-12017×4iAALH15,TALA1#,TALH17202210

(J)

main90110-A0012×4iAALH15,TALA1#,TALH17202210

(L)

42431DISC, REAR

main42431-0E100×2iAALH15,TALA1#,TALH17202210

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-0E080iAALH15,TALA15,TALH17202210

main42450-0E110iTALA10202210

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-0E080iAALH15,TALA15,TALH17202210

main42450-0E110iTALA10202210

90110A0009

main90110-A0009

6 parts on this diagram · 4 diagrams in section
