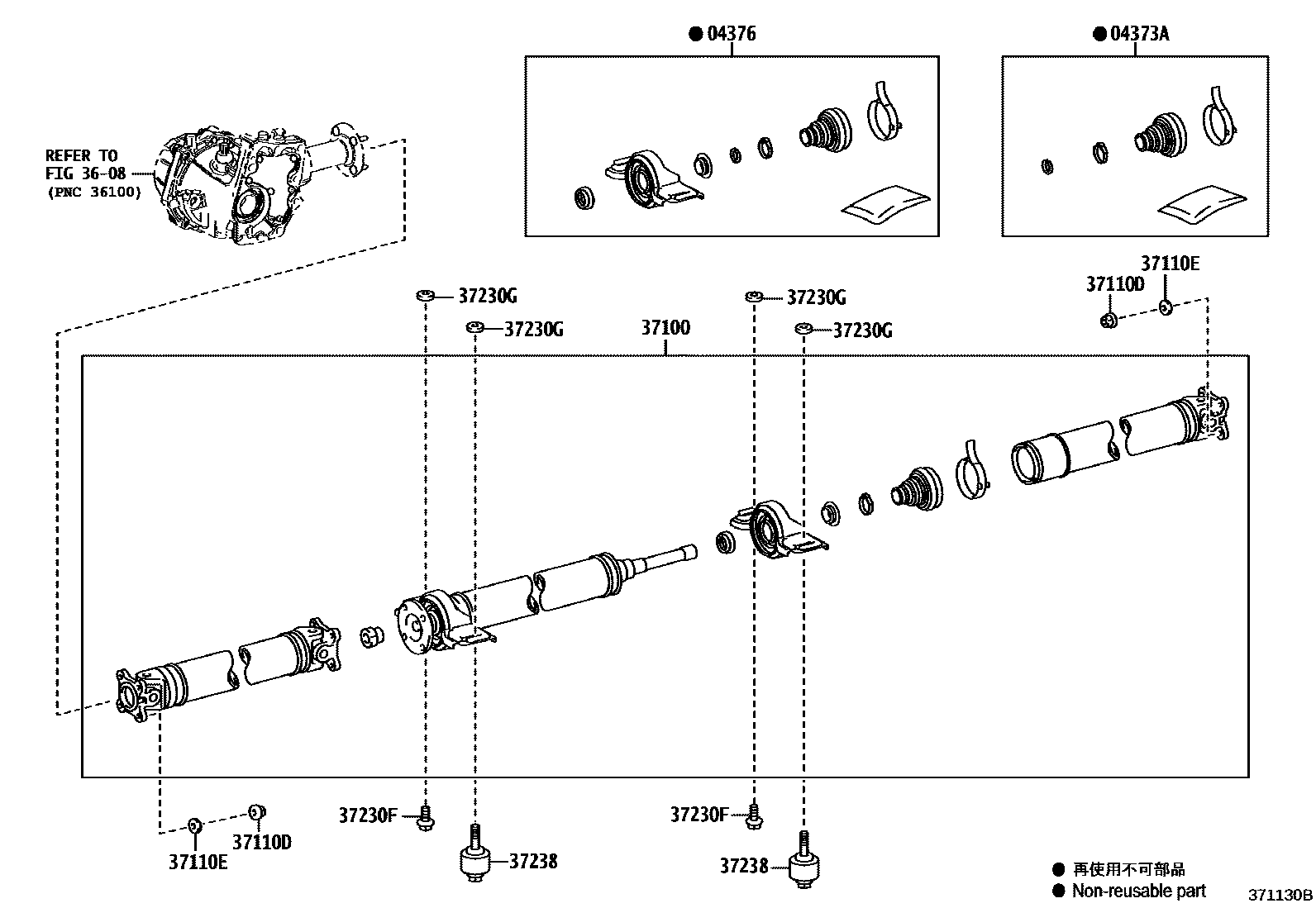

Toyota LEXUS RX SERIES(TMMC523 — PROPELLER SHAFT & UNIVERSAL JOINT
04373ABOOT KIT, UNIVERSAL
3608TRANSFER ASSEMBLY & GASKET KIT
37100SHAFT ASSY, PROPELLER W/CENTER BEARING
37110DNUT (FOR PROPELLER SHAFT)
37110EWASHER (FOR PROPELLER SHAFT)
37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)
37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)
37238DAMPER, CENTER SUPPORT BEARING
9 parts on this diagram · 1 diagram in section
PROPELLER SHAFT & UNIVERSAL JOINT for Toyota LEXUS RX SERIES(TMMC523
This section contains 9 genuine Toyota parts for the PROPELLER SHAFT & UNIVERSAL JOINT system of the Toyota LEXUS RX SERIES(TMMC523. Key components include: BOOT KIT, UNIVERSAL, BEARING KIT, CENTER SUPPORT, TRANSFER ASSEMBLY & GASKET KIT, SHAFT ASSY, PROPELLER W/CENTER BEARING, NUT (FOR PROPELLER SHAFT).
