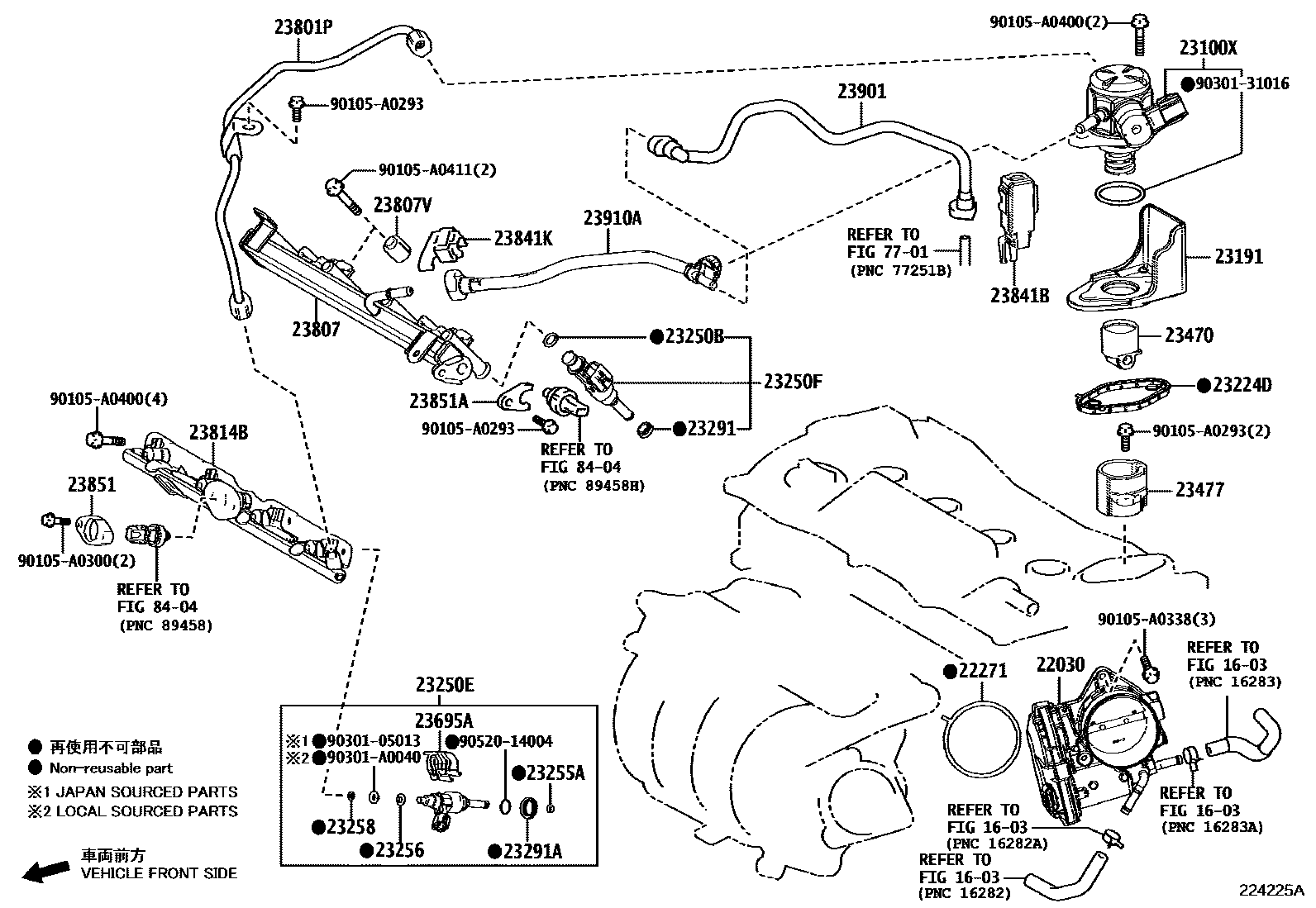

FUEL INJECTION SYSTEM

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-F0020iA25AFXS..AALH15202210

main22030-F0030iT24AFTS..TALA1#,TALH17202210

22271GASKET, THROTTLE BODY

main22271-25030iT24AFTS..TALA1#,TALH17202210

main22271-F0020iA25AFXS..AALH15202210

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23101-F0010iA25AFXS..AALH15202210

main23101-F0020iT24AFTS..TALA1#,TALH17202210

23191FLANGE, FUEL PUMP

main23191-25070iA25AFXS..AALH15202210

23224DGASKET, FUEL PUMP SPACER

main23224-F0011iA25AFXS..AALH15; T24AFTS..TALA1#,TALH17202210

23250BRING, O(FOR FUEL INJECTOR)

main90301-04019×4iT24AFTS..TALA1#,TALH17202210

main90301-A0036×4iA25AFXS..AALH15202210

23250EINJECTOR ASSY, FUEL(FOR DIRECT)

main23209-25070-01×4iT24AFTS..TALA1#,TALH17202210

MARK 1

main23209-25070-02×4iT24AFTS..TALA1#,TALH17202210

MARK 2

main23209-25070-03×4iT24AFTS..TALA1#,TALH17202210

MARK 3

main23209-25070-04×4iT24AFTS..TALA1#,TALH17202210

MARK 4

main23209-25070-05×4iT24AFTS..TALA1#,TALH17202210

MARK 5

main23209-25070-06×4iT24AFTS..TALA1#,TALH17202210

MARK 6

main23209-25070-07×4iT24AFTS..TALA1#,TALH17202210

MARK 7

main23209-25070-08×4iT24AFTS..TALA1#,TALH17202210

MARK 8

main23209-25070-09×4iT24AFTS..TALA1#,TALH17202210

MARK 9

main23209-F0010-01×4iA25AFXS..AALH15202210

MARK 1,REFER REPAIR MANUAL

main23209-F0010-02×4iA25AFXS..AALH15202210

MARK 2,REFER REPAIR MANUAL

main23209-F0010-03×4iA25AFXS..AALH15202210

MARK 3,REFER REPAIR MANUAL

main23209-F0010-04×4iA25AFXS..AALH15202210

MARK 4,REFER REPAIR MANUAL

main23209-F0010-05×4iA25AFXS..AALH15202210

MARK 5,REFER REPAIR MANUAL

main23209-F0010-06×4iA25AFXS..AALH15202210

MARK 6,REFER REPAIR MANUAL

main23209-F0010-07×4iA25AFXS..AALH15202210

MARK 7,REFER REPAIR MANUAL

main23209-F0010-08×4iA25AFXS..AALH15202210

MARK 8,REFER REPAIR MANUAL

main23209-F0010-09×4iA25AFXS..AALH15202210

MARK 9,REFER REPAIR MANUAL

23250FINJECTOR ASSY, FUEL(FOR PORT)

main23209-29175×4iA25AFXS..AALH15202210

(J)

main23209-F9080×4iA25AFXS..AALH15202210

(L)

main23209-F9110×4iT24AFTS..TALA1#,TALH17202210

23255ASEAL, FUEL INJECTOR

main23255-25010×4iA25AFXS..AALH15202210

(J)

main23255-25020×4iT24AFTS..TALA1#,TALH17202210

main23255-F0010×4iA25AFXS..AALH15202210

(L)

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-25010×4iA25AFXS..AALH15202210

(J)

main23256-25020×4iT24AFTS..TALA1#,TALH17202210

main23256-F0010×4iA25AFXS..AALH15202210

(L)

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-25020×4iT24AFTS..TALA1#,TALH17202210

main23258-36010×4iA25AFXS..AALH15202210

23291INSULATOR, INJECTOR VIBRATION

main23291-0V020×4iA25AFXS..AALH15; T24AFTS..TALA1#,TALH17202210

23291AINSULATOR, INJECTOR VIBRATION

main23291-25020×4iT24AFTS..TALA1#,TALH17202210

main23291-31020×4iA25AFXS..AALH15202210

23470LIFTER ASSY, FUEL PUMP

main23470-F0010iA25AFXS..AALH15202210

main23470-F0020iT24AFTS..TALA1#,TALH17202210

23477GUIDE, FUEL PUMP LIFTER

main23477-F0020iT24AFTS..TALA1#,TALH17202210

main23477-F2010iA25AFXS..AALH15202210

23695ACLAMP, NOZZLE HOLDER

main23695-25010×4iA25AFXS..AALH15202210

main23695-25020×4iT24AFTS..TALA1#,TALH17202210

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-25040iT24AFTS..TALA1#,TALH17202210

main23801-F0011iA25AFXS..AALH15202210

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-F0010iT24AFTS..TALA1#,TALH17202210-202307

main23807-F0011iT24AFTS..TALA1#,TALH17202308

main23814-F0023iA25AFXS..AALH15202210

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-25010×2iA25AFXS..AALH15202210

23814BPIPE, FUEL DELIVERY

main23814-25010iA25AFXS..AALH15202210-202211

main23814-25011iA25AFXS..AALH15202211

main23814-F0050iT24AFTS..TALA1#,TALH17202210

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-31070iA25AFXS..AALH15202210

main23841-F0010iT24AFTS..TALA1#,TALH17202210

23841KCLAMP, FUEL PIPE

main23841-25030iT24AFTS..TALA1#,TALH17202210

main23841-F0010iA25AFXS..AALH15202210

23851HOLDER, FUEL PRESSURE SENSOR, NO.1

main23851-F2010iA25AFXS..AALH15; T24AFTS..TALA1#,TALH17202210

23851AHOLDER, FUEL PRESSURE SENSOR, NO.2

main23851-25030iT24AFTS..TALA1#,TALH17202210-202407

main23851-F2080iA25AFXS..AALH15202402

(L)

23901TUBE SUB-ASSY, FUEL

main23901-25160iT24AFTS..TALA1#,TALH17202210

main23901-F0131iA25AFXS..AALH15202210

23910ATUBE SUB-ASSY, FUEL

main23901-F0111iA25AFXS..AALH15202210

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

90105A0293

main90105-A0293

90105A0300

main90105-A0300

90105A0338

main90105-A0338

90105A0400

main90105-A0400

90105A0411

main90105-A0411

9030105013

main90301-05013

9030131016

main90301-31016

90301A0040

main90301-A0040

9052014004

main90520-14004

38 parts on this diagram · 2 diagrams in section
