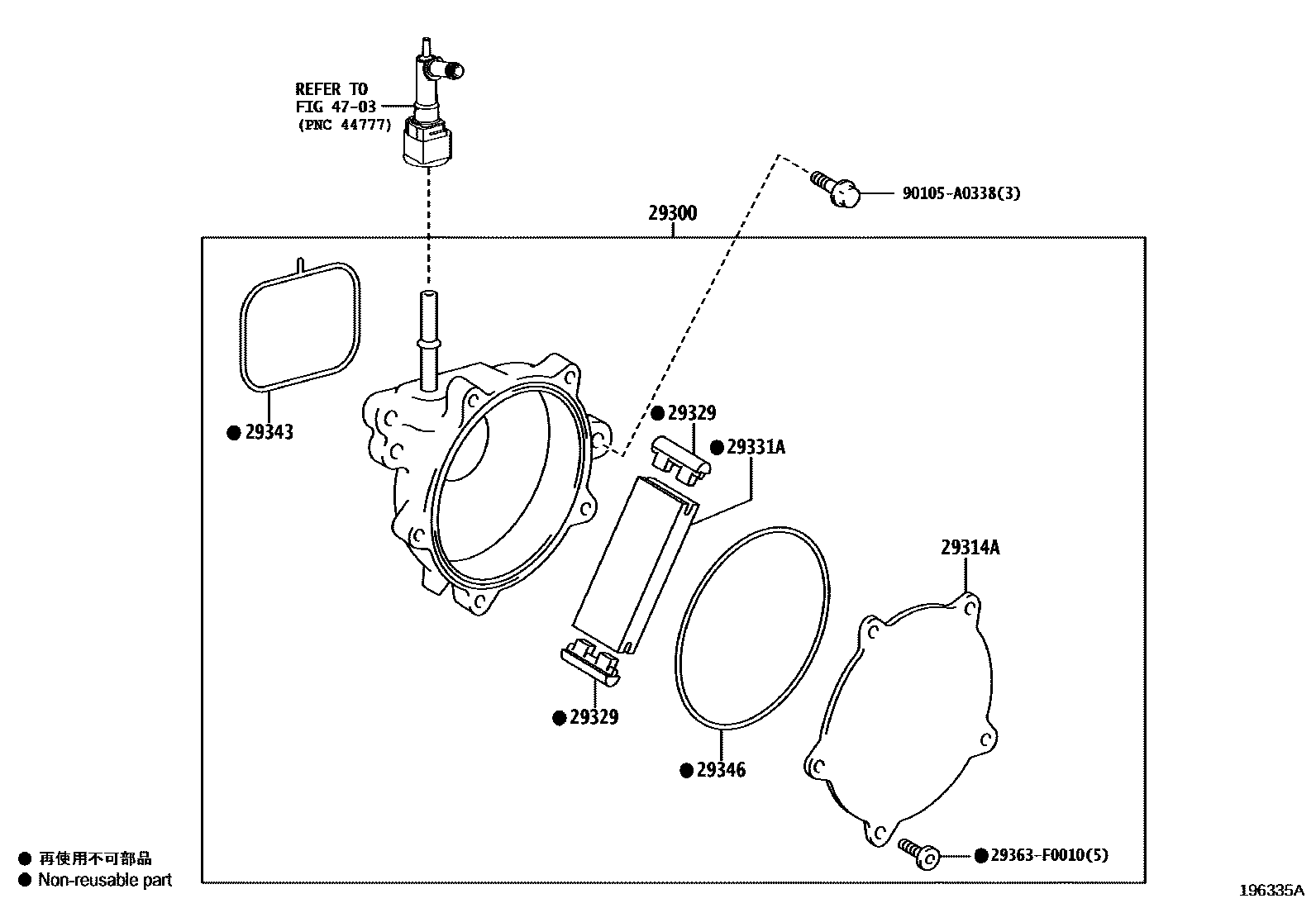

VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-F0012iT24AFTS..TALA1#,TALH17202210

29314ACOVER, END

main29314-F0010iT24AFTS..TALA1#,TALH17202210

29329CAP, VACUUM PUMP VANE

main29329-F0011×2iT24AFTS..TALA1#,TALH17202210

29331AVANE, VACUUM PUMP

main29331-F0010iT24AFTS..TALA1#,TALH17202210

29343RING, O VACUUM PUMP, NO.1

main29343-F0010iT24AFTS..TALA1#,TALH17202210

29346RING, O VACUUM PUMP COVER

main29346-F0010iT24AFTS..TALA1#,TALH17202210

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

29363F0010SCREW, HOLLOW VACUUM PUMP

main29363-F0010

90105A0338

main90105-A0338

9 parts on this diagram · 2 diagrams in section
