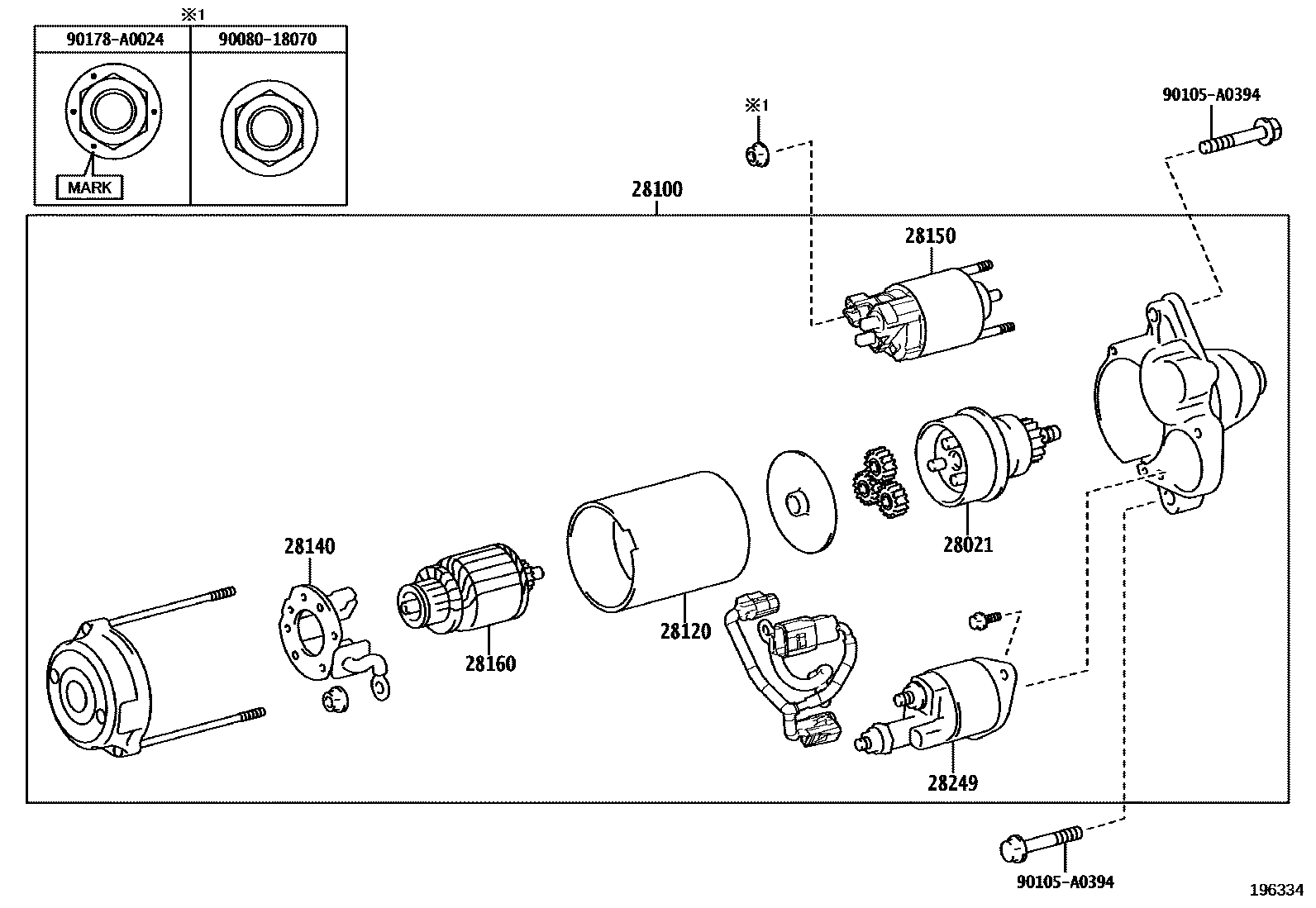

Toyota LEXUS RX SERIES(TMMC523 — STARTER
28021CLUTCH SUB-ASSY, STARTER CENTER BEARING
28100STARTER ASSY
28120YOKE ASSY, STARTER
28140HOLDER ASSY, STARTER BRUSH
28150SWITCH ASSY, MAGNET STARTER
28160ARMATURE ASSY, STARTER
28249RELAY, STARTER INRUSH CURRENT REDUCTION
9008018070
90105A0394
90178A0024
10 parts on this diagram · 1 diagram in section
STARTER for Toyota LEXUS RX SERIES(TMMC523
This section contains 10 genuine Toyota parts for the STARTER system of the Toyota LEXUS RX SERIES(TMMC523. Key components include: CLUTCH SUB-ASSY, STARTER CENTER BEARING, STARTER ASSY, YOKE ASSY, STARTER, HOLDER ASSY, STARTER BRUSH, SWITCH ASSY, MAGNET STARTER.
