Toyota LEXUS RX SERIES(TMMC523 — VACUUM PIPING

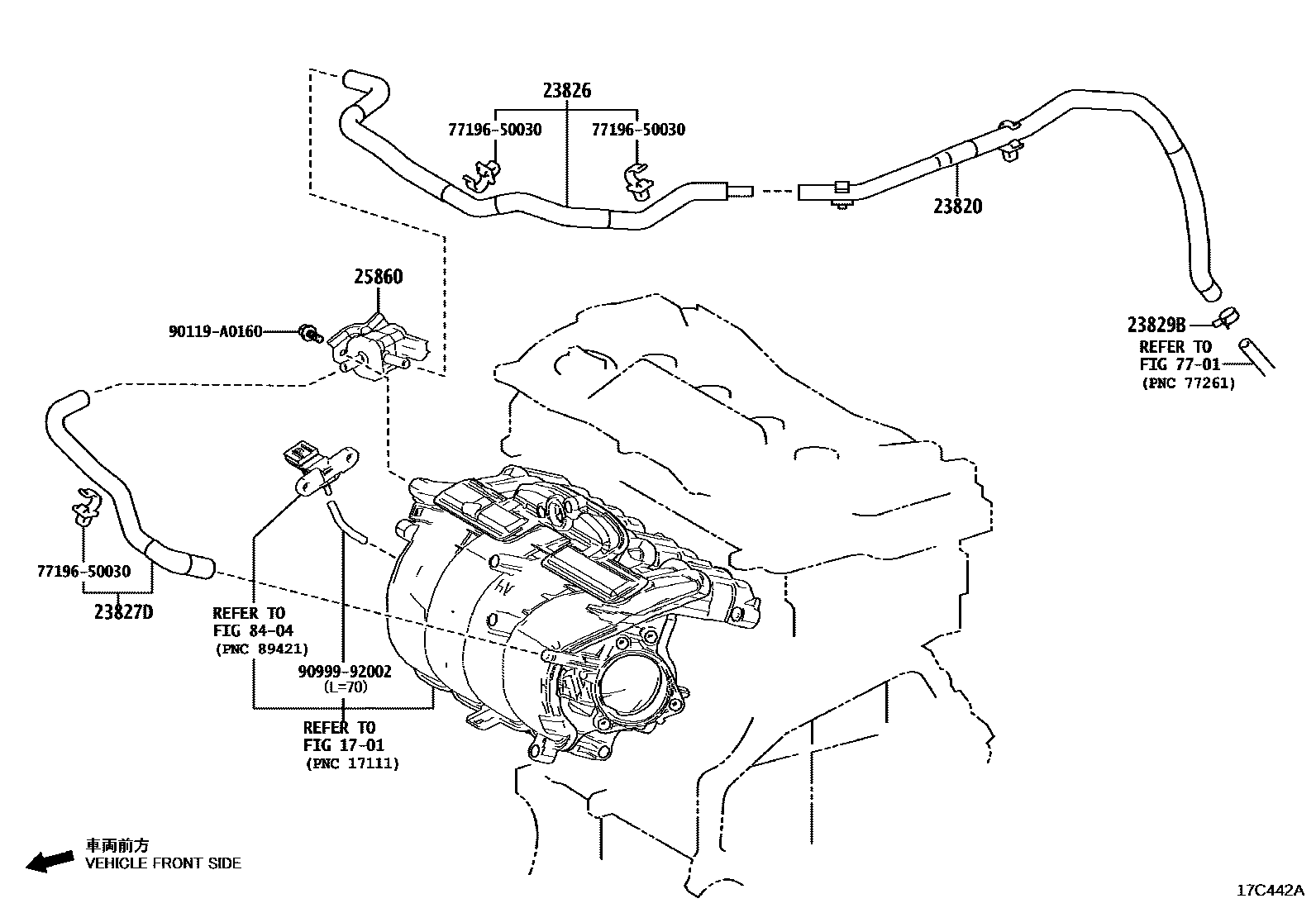

Parts diagram

1701MANIFOLD

→ Go to FIG 17-01

23820HOSE ASSY, FUEL VAPOR FEED

23826HOSE, FUEL VAPOR FEED, NO.1

23827DHOSE, FUEL VAPOR FEED, NO.2

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

25860VALVE ASSY, VACUUM SWITCHING, NO.1

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

7719650030CLAMP, EVAPORATION VENT TUBE, NO.1

90119A0160

9099992002

11 parts on this diagram · 3 diagrams in section

VACUUM PIPING for Toyota LEXUS RX SERIES(TMMC523

This section contains 45 genuine Toyota parts for the VACUUM PIPING system of the Toyota LEXUS RX SERIES(TMMC523. Key components include: MOUNTING, MANIFOLD, AIR CLEANER, CLIP, HOSE, HOSE SUB-ASSY, VACUUM.
