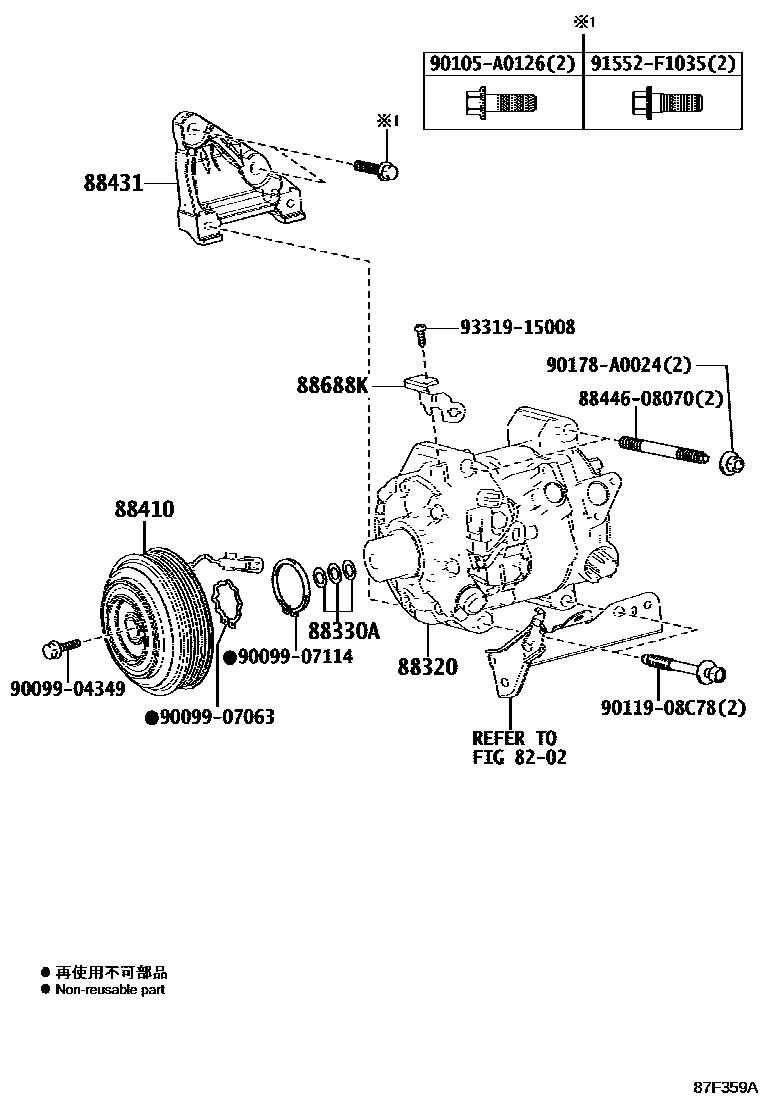

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

8202WIRING & CLAMP

→ Go to FIG 82-02

88320COMPRESSOR ASSY, COOLER

main88320-48320iGGL2#201510-201909

main88320-48330iGGL2#201909

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iGGL2#201909

88410CLUTCH ASSY, MAGNET

main88410-0N010iGGL2#201909

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-0E010iGGL2#201510-201909

main88431-0E040iGGL2#201911

main88431-48070iGYL25201909

88688KBRACKET, COOLER COMPRESSOR

main88688-33570iGGL2#201510-201909

8844608070BOLT, IDLE PULLEY

main88446-08070

9009904349

main90099-04349

9009907063

main90099-07063

9009907114

main90099-07114

90105A0126

main90105-A0126

9011908C78

main90119-08C78

90178A0024

main90178-A0024

91552F1035

main91552-F1035

9331915008

main93319-15008

15 parts on this diagram · 4 diagrams in section
