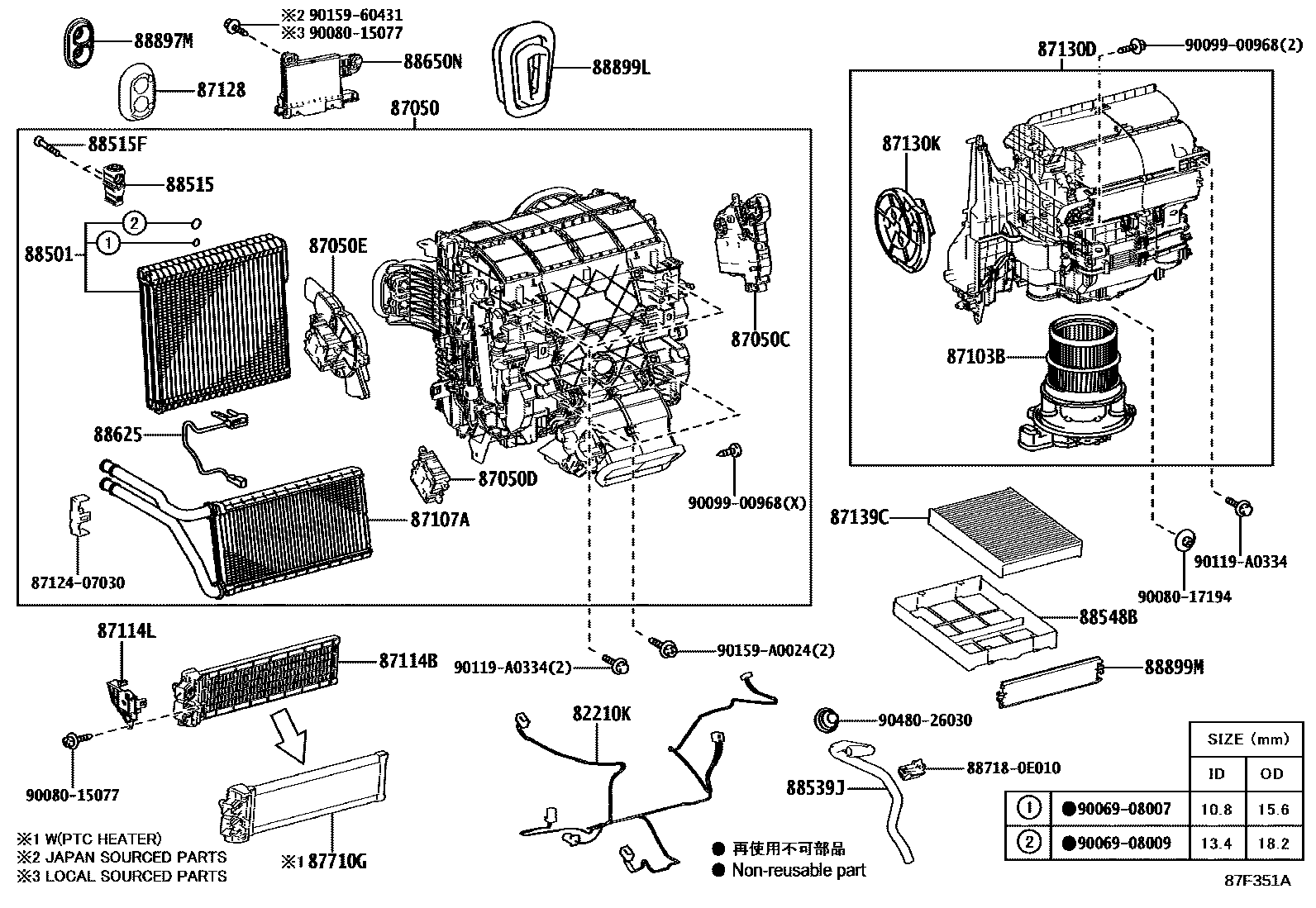

HEATING & AIR CONDITIONING - COOLER UNIT

82210KHARNESS ASSY, AIR CONDITIONER

main82212-0E050i201510-201608

87050RADIATOR ASSY, AIR CONDITIONER

main87050-0E170i201510-201612

main87050-0E180i201510-201909

main87050-0E190i201612-201909

main87050-0E250i201909

main87050-0E260i201909

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-06420i201909

TYPE A

main87106-0E100i201510-201608

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-0E120i201510-201608

87050EDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3

main87106-0E110i201510-201608

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0E090i201510-201608

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-0E040i201510-201608

87114BCOVER, HEATER

main87114-0E080i201510-201909

87114LCOVER, HEATER, NO.2

main87114-0E070i201909

87128GROMMET, HEATER

main87128-0E080i201510-201909

87130DBLOWER ASSY

main87130-0E130i201510-201608

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-0E130i201510-201608

87139CFILTER, CLEAN AIR

main87139-0E040i201510-201608

DEODORANT FILTER

87710GQUICK HEATER ASSY

main87710-58010i201510-201909

COLD AREA SPEC

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0E120i201510-201909

main88501-0E130i201510-201608

main88501-0E180i201909

88515VALVE, COOLER EXPANSION

main88515-0E130i201510-201608

main88515-0E140i201612-201909

main88515-0E150i201909

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542×2i201510-201608

88539JHOSE, DRAIN COOLER

main88539-0E080i201909

88548BCASE, AIR FILTER

main88899-0E030i201909

88625THERMISTOR, COOLER, NO.1

main88620-0E050i201510-201909

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-0E280supersedes 88650-0E481i201510-201611

COLD AREA SPEC

main88650-0E281supersedes 88650-0E421i201612-201712

COLD AREA SPEC

main88650-0E430supersedes 88650-0E481i201510-201611

COLD AREA SPEC&SEAT HEATER-WITH(FRONT & REAR); COLD AREA SPEC&SEAT HEATER-WITH(FRONT ONLY)

main88650-0E431supersedes 88650-0E421i201612-201712

COLD AREA SPEC&SEAT HEATER-WITH(FRONT & REAR); COLD AREA SPEC&SEAT HEATER-WITH(FRONT ONLY)

main88650-0E440supersedes 88650-0E481i201510-201611

SEAT HEATER-WITH(FRONT & REAR); SEAT HEATER-WITH(FRONT ONLY)

main88650-0E441supersedes 88650-0E421i201612-201712

SEAT HEATER-WITH(FRONT & REAR); SEAT HEATER-WITH(FRONT ONLY)

main88650-0E450supersedes 88650-0E551i201510-201611

COLD AREA SPEC

main88650-0E451supersedes 88650-0E461i201612-201712

COLD AREA SPEC

main88650-0E470supersedes 88650-0E480i201712-201807

COLD AREA SPEC

main88650-0E471supersedes 88650-0E481i201808-201909

COLD AREA SPEC

main88650-0E490supersedes 88650-0E480i201712-201807

COLD AREA SPEC&SEAT HEATER-WITH(FRONT & REAR); COLD AREA SPEC&SEAT HEATER-WITH(FRONT ONLY)

main88650-0E491supersedes 88650-0E481i201808-201909

COLD AREA SPEC&SEAT HEATER-WITH(FRONT & REAR); COLD AREA SPEC&SEAT HEATER-WITH(FRONT ONLY)

main88650-0E530supersedes 88650-0E480i201712-201807

SEAT HEATER-WITH(FRONT & REAR); SEAT HEATER-WITH(FRONT ONLY)

main88650-0E531supersedes 88650-0E481i201808-201909

SEAT HEATER-WITH(FRONT & REAR); SEAT HEATER-WITH(FRONT ONLY)

main88650-0E540supersedes 88650-0E550i201712-201807

COLD AREA SPEC

main88650-0E541supersedes 88650-0E551i201808-201909

COLD AREA SPEC

main88650-0E650supersedes 88650-0E680i201909-202108

COLD AREA SPEC&SEAT HEATER-WITH(FRONT & REAR); COLD AREA SPEC&SEAT HEATER-WITH(FRONT ONLY)

main88650-0E660supersedes 88650-0E680i201909-202108

SEAT HEATER-WITH(FRONT & REAR); SEAT HEATER-WITH(FRONT ONLY)

main88650-0E670supersedes 88650-0E680i201909-202108

COLD AREA SPEC

main88650-0E690supersedes 88650-0E720i201909-202108

COLD AREA SPEC&SEAT HEATER-WITH(FRONT & REAR); COLD AREA SPEC&SEAT HEATER-WITH(FRONT ONLY)

main88650-0E700supersedes 88650-0E720i201909-202108

SEAT HEATER-WITH(FRONT & REAR); SEAT HEATER-WITH(FRONT ONLY)

main88650-0E710supersedes 88650-0E720i201909-202108

COLD AREA SPEC

main88650-0E840supersedes 88650-0E870i202108

COLD AREA SPEC&SEAT HEATER-WITH(FRONT & REAR); COLD AREA SPEC&SEAT HEATER-WITH(FRONT ONLY)

main88650-0E850supersedes 88650-0E870i202108

SEAT HEATER-WITH(FRONT & REAR); SEAT HEATER-WITH(FRONT ONLY)

main88650-0E860supersedes 88650-0E870i202108

COLD AREA SPEC

main88650-0E880supersedes 88650-0EA10i202108

COLD AREA SPEC&SEAT HEATER-WITH(FRONT & REAR); COLD AREA SPEC&SEAT HEATER-WITH(FRONT ONLY)

main88650-0E890supersedes 88650-0EA10i202108

SEAT HEATER-WITH(FRONT & REAR); SEAT HEATER-WITH(FRONT ONLY)

main88650-0EA00supersedes 88650-0EA10i202108

COLD AREA SPEC

88897MGROMMET (FOR HEATER PIPE)

main90480-A0004i201510-201608

88899LPARTS, COOLING UNIT

main88899-0E040i201909

88899MPLATE, COVER(FOR AIR FILTER)

main88899-06310i201708-201909

main88899-0E010i201510-201608

8712407030CLAMP, HEATER

main87124-07030

887180E010PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0E010

9006908007

main90069-08007

9006908009

main90069-08009

9008015077

main90080-15077

9008017194

main90080-17194

9009900968

main90099-00968

90119A0334

main90119-A0334

9015960431

main90159-60431

90159A0024

main90159-A0024

9048026030

main90480-26030

35 parts on this diagram · 4 diagrams in section
