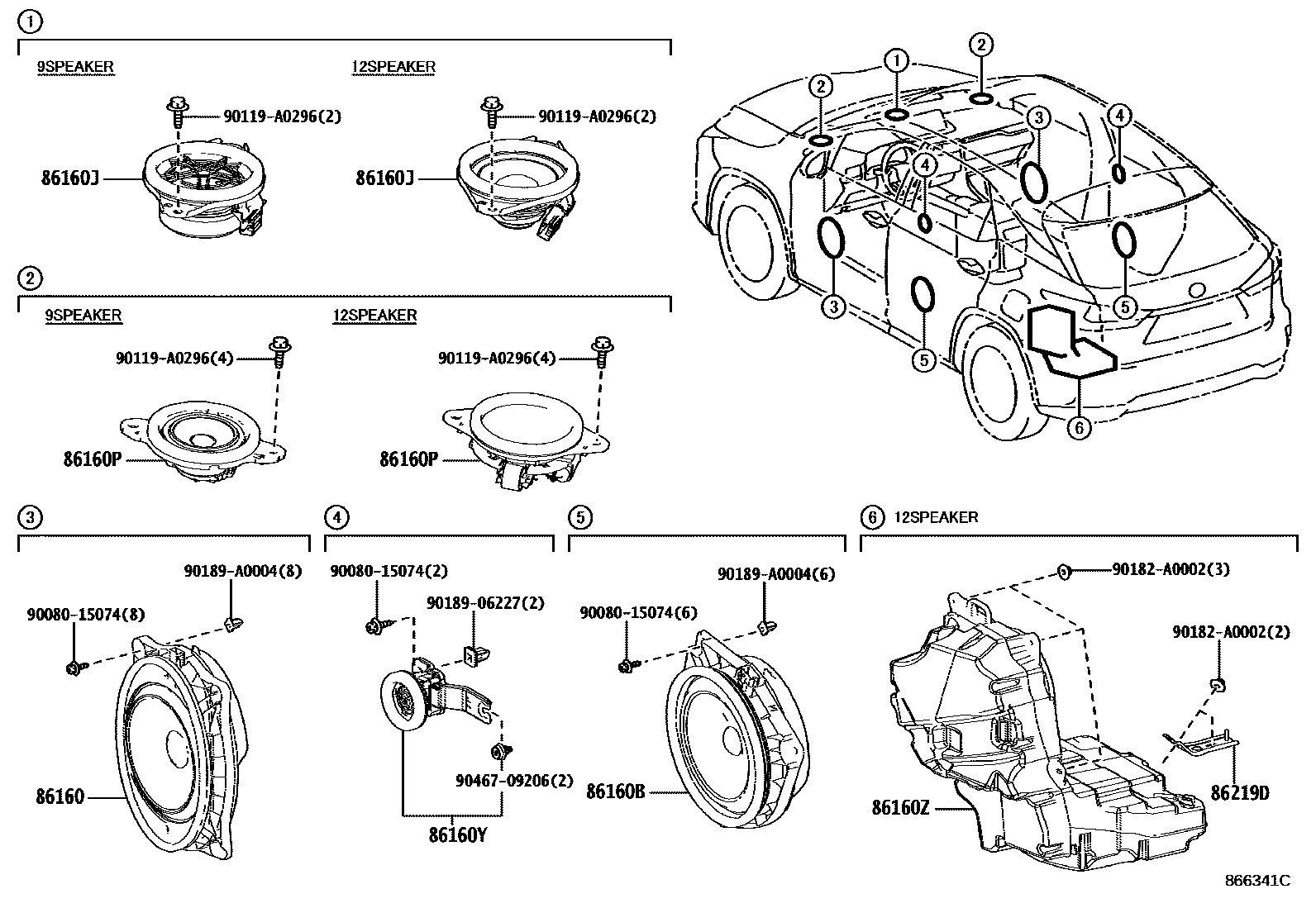

SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-0E300×2supersedes 86160-0E290i201510-201608

SPEAKER-12SPEAKER

main86160-0WW00×2i201510-201909

AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY); AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY)

86160BSPEAKER ASSY, REAR

main86160-0E330×2supersedes 86160-0E320i201510-201608

SPEAKER-12SPEAKER

main86160-0WW30×2i201510-201909

AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY); AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY)

86160JSPEAKER ASSY, FRONT NO.3

main86160-0E310supersedes 86160-0E270i201909

SPEAKER-12SPEAKER

main86160-0WV80i201510-201909

AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY); AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY)

86160PSPEAKER ASSY, FRONT NO.2

main86160-0E360×2supersedes 86160-0E280i201510-201608

SPEAKER-12SPEAKER

main86160-0WV80×2i201712-201909

AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY); AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY)

86160YSPEAKER ASSY, REAR NO.2

main86150-0E050×2supersedes 86150-0E040i201909

SPEAKER-12SPEAKER

main86150-0W380×2i201510-201909

AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY); AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY)

86160ZSPEAKER ASSY, REAR NO.3

main86150-0E070i201510-201909

SPEAKER-12SPEAKER

main86150-0W370i201510-201909

AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY); AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY)

86219DBRACKET, SPEAKER, REAR NO.1

main86219-48011i201909

AUDIO-DVD&SPEAKER-15SPEAKER & *MAR; SPEAKER-12SPEAKER

9008015074

main90080-15074

90119A0296

main90119-A0296

90182A0002

main90182-A0002

9018906227

main90189-06227

90189A0004

main90189-A0004

9046709206

main90467-09206

13 parts on this diagram · 2 diagrams in section
