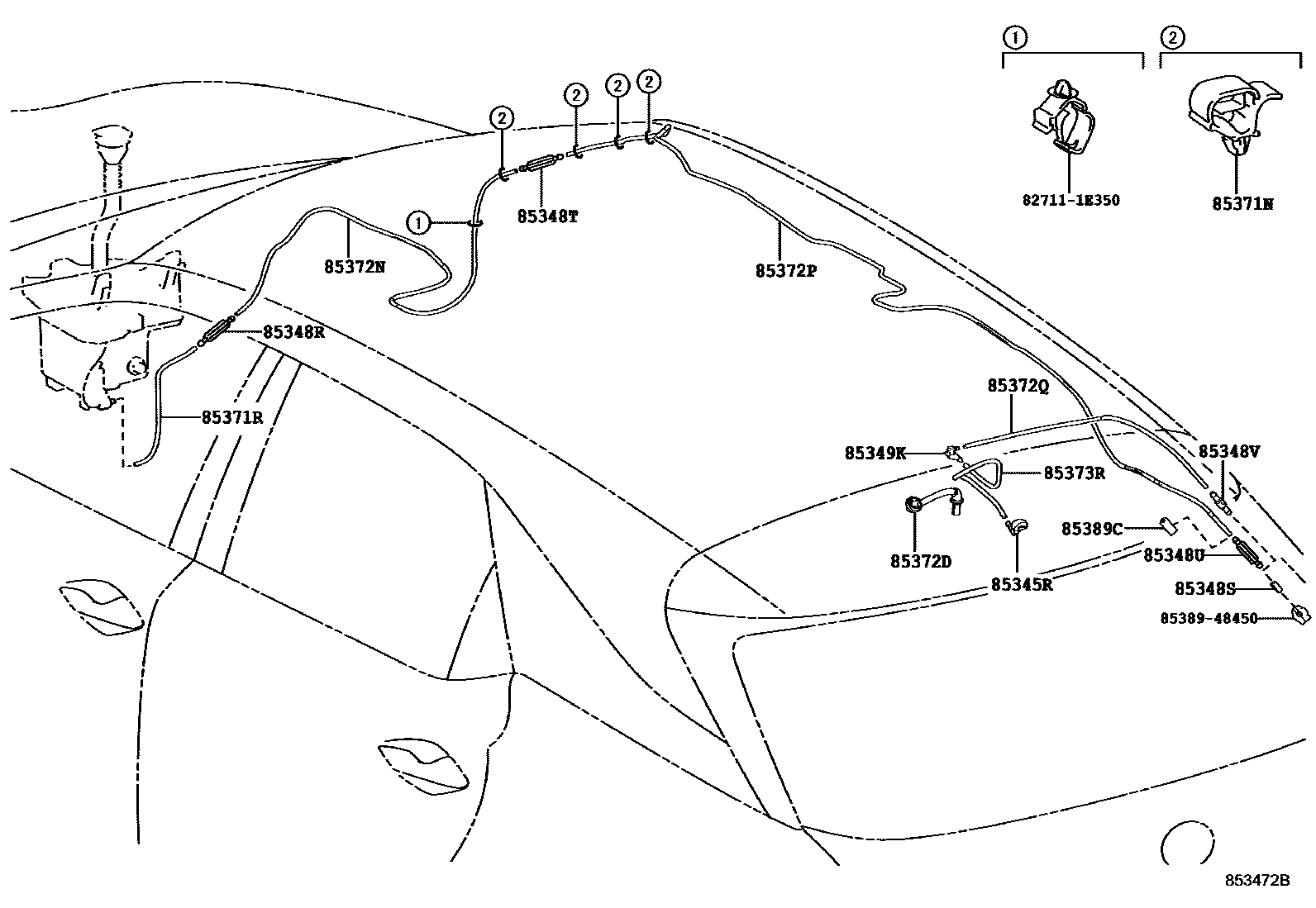

REAR WASHER
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85349KJOINT, REAR WASHER ELBOW, NO.2
85371NCLAMP, REAR WASHER HOSE
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=300; L=300,COLD AREA SPEC; L=300,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE; L=300,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); L=300,HEADLAMP-LED TRIPLE BEAM TYPE; L=300,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
L=280,COLD AREA SPEC&HEADLAMP LEVELING DEVICE-WITH(LED SINGLE BEAM TYPE); L=280,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB&*AFLS)&HEADLAMP LEVELING DEVICE-WITH(LED TRIPLE BEAM TYPE)&CORNERING LAMP-WITH&FRONT FOG & DRIVING LAMP-WITH(WHITE)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP); L=280,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&HEADLAMP LEVELINGDEVICE-WITH(LED TRIPLE BEAM TYPE)&CORNERING LAMP-WITH&FRONT FOG & DRIVING LAMP-WITH(WHITE)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1900
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=2850
L=2750,MOON ROOF-WITH(PANORAMA ROOF)
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=580
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=380
L=380,MOON ROOF-WITH(PANORAMA ROOF)
85389CPROTECTOR, WASHER
827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E350
8538948450PACKING, WINDSHIELD WASHER HOSE, NO.1
main85389-48450
17 parts on this diagram · 2 diagrams in section
