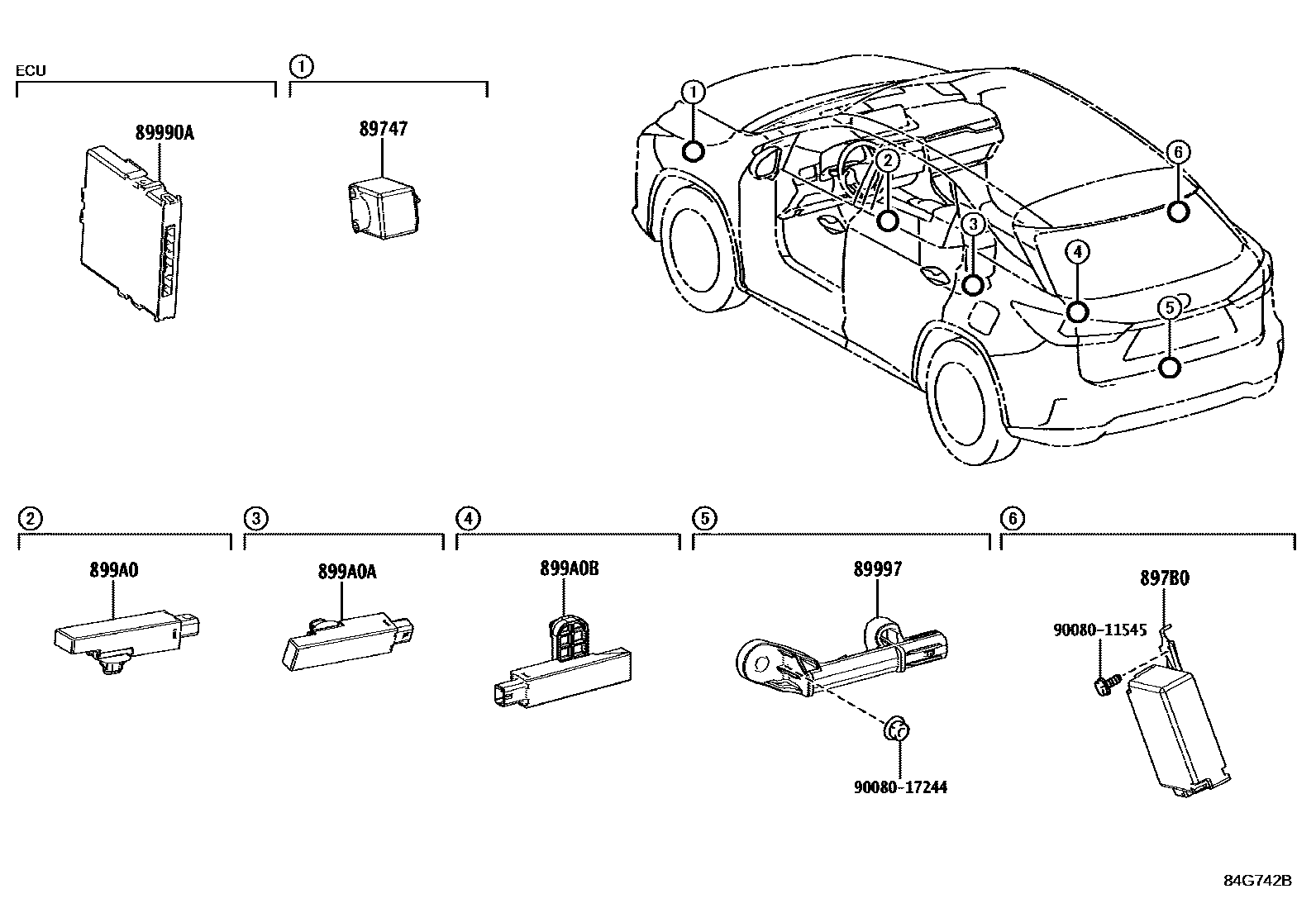

WIRELESS DOOR LOCK

89747BUZZER, WIRELESS DOOR LOCK

main89747-0R020iGYL20201510-201608

897B0RECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-0E030iGYL20201510-201608

main897B0-0E150iGGL2#,GYL25202008

89990ACOMPUTER ASSY, SMART KEY

main89990-0E130iGGL2#201510-201909

main89990-0E140iGYL2#201510-201909

main89990-0E190iGGL2#201909-202008

main89990-0E200iGYL25201909-202008

main89990-0E240iGGL2#202008-202108

main89990-0E250iGYL25202008-202108

main899H0-0E100iGGL2#202108

main899H0-0E110iGYL25202108

89997ANTENNA, ELECTRICAL KEY

main89997-0E050iGYL20201510-201608

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-06030iGYL20201510-201608

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-06030iGYL20201510-201608

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-0E050iGYL20201510-201608

9008011545

main90080-11545

9008017244

main90080-17244

9 parts on this diagram · 1 diagram in section
