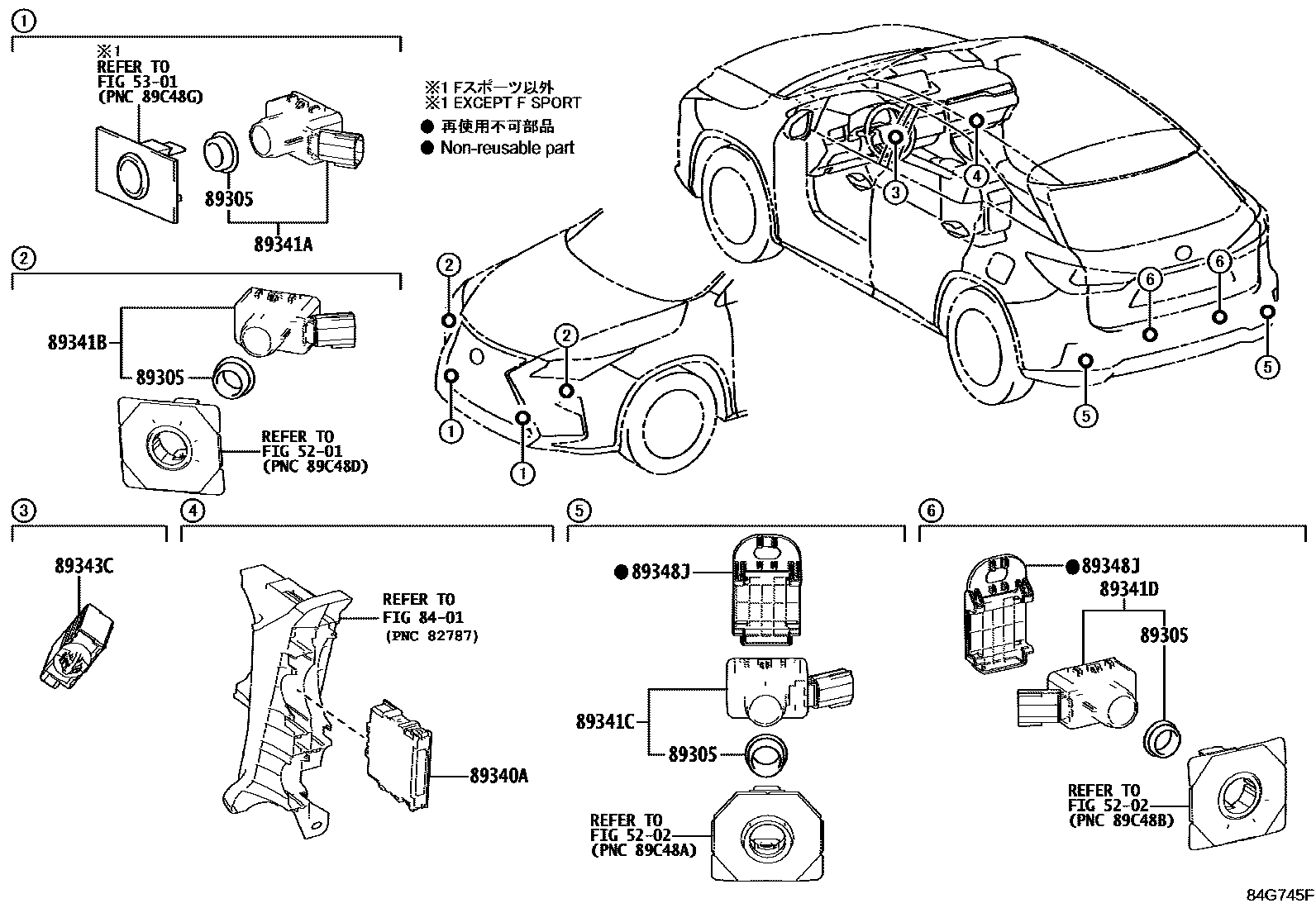

CLEARANCE & BACK SONAR
5201FRONT BUMPER & BUMPER STAY
5202REAR BUMPER & BUMPER STAY
5301RADIATOR GRILLE
8401SWITCH & RELAY & COMPUTER
89305CUSHION SET, ULTRASONIC SENSOR
89340ACOMPUTER ASSY, CLEARANCE WARNING
"F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR); CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR)
"F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR); CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR)
"VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT); PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)
PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB); PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR)
"F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR); CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)
"F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR); CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)
"F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT); CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)
89341ASENSOR, ULTRASONIC, NO.1
CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),DUMMY-MAT BLACK; DUMMY-MAT BLACK
"F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),METALLIC BLACK; "F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),METALLIC BLACK
89341BSENSOR, ULTRASONIC, NO.2
SONIC QUARTZ,085
"F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),MERCURY GRAY MC.,1H9; CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),MERCURY GRAY MC.,1H9; MERCURY GRAY MC.,1H9
"VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),SONIC TITANIUM,1J7; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),SONIC TITANIUM,1J7; SONIC TITANIUM,1J7
"F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),PLATINUM SILVERME.,1J4; CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),PLATINUM SILVER ME.,1J4; PLATINUM SILVER ME.,1J4
"F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),BLACK,212; BLACK,212; CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),BLACK,212
GRAPHITE BLACK GF.,223
"F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),RED MC.CS.,3R1; CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),RED MC.CS.,3R1; RED MC.CS.,3R1
CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SLEEK ECRU ME.,4U7; SLEEK ECRU ME.,4U7
AMBER CS.,4X2; CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),AMBER CS.,4X2
"F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),DEEP BLUE MC.,8X5; CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),DEEP BLUE MC.,8X5; DEEP BLUE MC.,8X5
"F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),WHITE NOVA GF.,083; "F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),WHITE NOVAGF.,083
89341CSENSOR, ULTRASONIC, NO.3
CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SONIC QUARTZ,085; SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
"VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),SONIC TITANIUM,1J7; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),SONIC TITANIUM,1J7; SONIC TITANIUM,1J7
PLATINUM SILVER ME.,1J4
"F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),BLACK,212; BLACK,212; CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SLEEK ECRU ME.,4U7; SLEEK ECRU ME.,4U7
AMBER CS.,4X2
DEEP BLUE MC.,8X5
"F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),WHITE NOVA GF.,083
89341DSENSOR, ULTRASONIC, NO.4
CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SONIC QUARTZ,085; SONIC QUARTZ,085
"F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),MERCURY GRAY MC.,1H9; CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),MERCURY GRAY MC.,1H9; MERCURY GRAY MC.,1H9
"VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),SONIC TITANIUM,1J7; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),SONIC TITANIUM,1J7; SONIC TITANIUM,1J7
PLATINUM SILVER ME.,1J4
BLACK,212
"F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),GRAPHITE BLACK GF.,223; CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),GRAPHITE BLACK GF.,223; GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SLEEK ECRU ME.,4U7; SLEEK ECRU ME.,4U7
AMBER CS.,4X2; CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),AMBER CS.,4X2
DEEP BLUE MC.,8X5
"F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),WHITE NOVA GF.,083; "F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),WHITE NOVAGF.,083
89343CBUZZER, CLEARANCE WARNING, NO.1
"F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR); CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR)
"VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT); PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)
89348JCLIP, ULTRASONIC SENSOR
"F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR); CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR)
12 parts on this diagram · 2 diagrams in section
