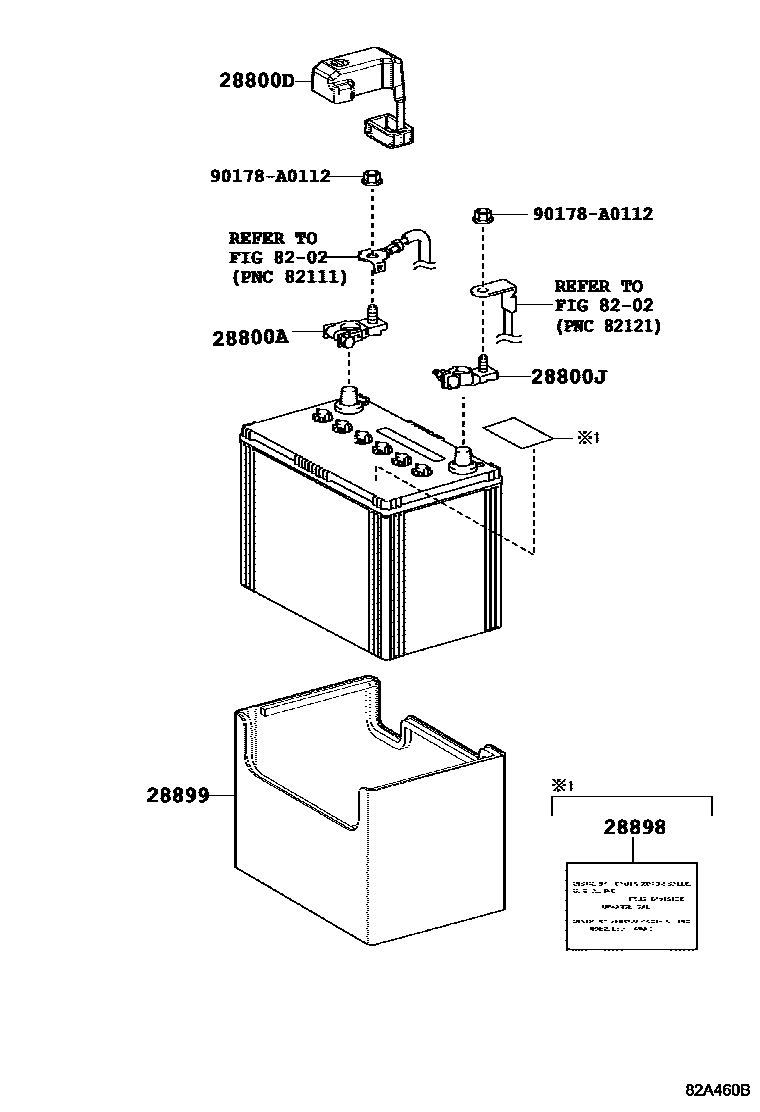

BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 112V BATTERY 0003 1HV BATTERY 0004 1HV BATTERY 0005 1HV BATTERY

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i2GRFXS..GYL25201909

main90982-05056i2GRFKS..GGL2#201510-201909

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-33360i2GRFKS..GGL2#201510-201909

28800JTERMINAL, BATTERY NEGATIVE

main90982-06070i2GRFKS..GGL2#201510-201909

28898PLATE, BATTERY

main28898-0P010i2GRFKS..GGL2#; 2GRFKS..GGL25201510-201909

CANADA SPEC

28899INSULATOR, BATTERY

main28899-0P020i2GRFKS..GGL2#201909

main28899-0P030i2GRFXS..GYL25201510-201909

8202WIRING & CLAMP

→ Go to FIG 82-02

90178A0112

main90178-A0112

7 parts on this diagram · 5 diagrams in section
