INTERIOR LAMP
63372JHOOK, ROOF HEADLINING SUPPORT
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080RLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81081LAMP SUB-ASSY, INTERIOR ILLUMINATION
"F SPORT"*(F); "VERSION L"*(L); F SPORT LO
"F SPORT"*(F); "VERSION L"*(L); F SPORT LO
81230LAMP ASSY, COURTESY
DOOR TRIM-BAMBOO WITHOUT(ILLUMINATION LAMP); DOOR TRIM-BAMBOO WITHOUT(ILLUMINATION LAMP)&SPEAKER-12SPEAKER; DOOR TRIM-BAMBOO WITHOUT(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR; DOOR TRIM-ENGIEERED WOOD & W/O(ILLUMINATION LAMP); DOOR TRIM-ENGIEERED WOOD & W/O(ILLUMINATION LAMP)&SPEAKER-12SPEAKER; DOOR TRIM-ENGIEERED WOOD & W/O(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR; PREMIUM PACKAGE&DOOR TRIM-BAMBOO WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH); PREMIUM PACKAGE&DOOR TRIM-BAMBOO WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER; PREMIUM PACKAGE&DOOR TRIM-BAMBOO WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR; PREMIUM PACKAGE&DOOR TRIM-ENGIEERED WOOD & W/O(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH); PREMIUM PACKAGE&DOOR TRIM-ENGIEERED WOOD & W/O(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER; PREMIUM PACKAGE&DOOR TRIM-ENGIEERED WOOD & W/O(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR
"F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP); "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER; "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR; "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP); "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SPEAKER-12SPEAKER; "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SPEAKER-15SPEAKER &*MAR; "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN); "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER; "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR; DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP); DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP); F SPORT LO&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP); F SPORT LO&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER; F SPORT LO&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR; F SPORT LO&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP); F SPORT LO&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SPEAKER-12SPEAKER; F SPORT LO&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR
81230BBULB(FOR COURTESY LAMP)
12V 5W
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W
81340LAMP ASSY, VANITY
81340BBULB (FOR VANITY LAMP)
12V 8W
81360TLAMP ASSY, SPOT
ECRU,TRIM0#,5#
MOON STONE,TRIM1#,2#,4#
BLACK,TRIM25,26,27,28,3#
ECRU,TRIM0#,5#
MOON STONE,TRIM1#,20,24,29,4#
BLACK,TRIM25,26,27,28,3#,7#

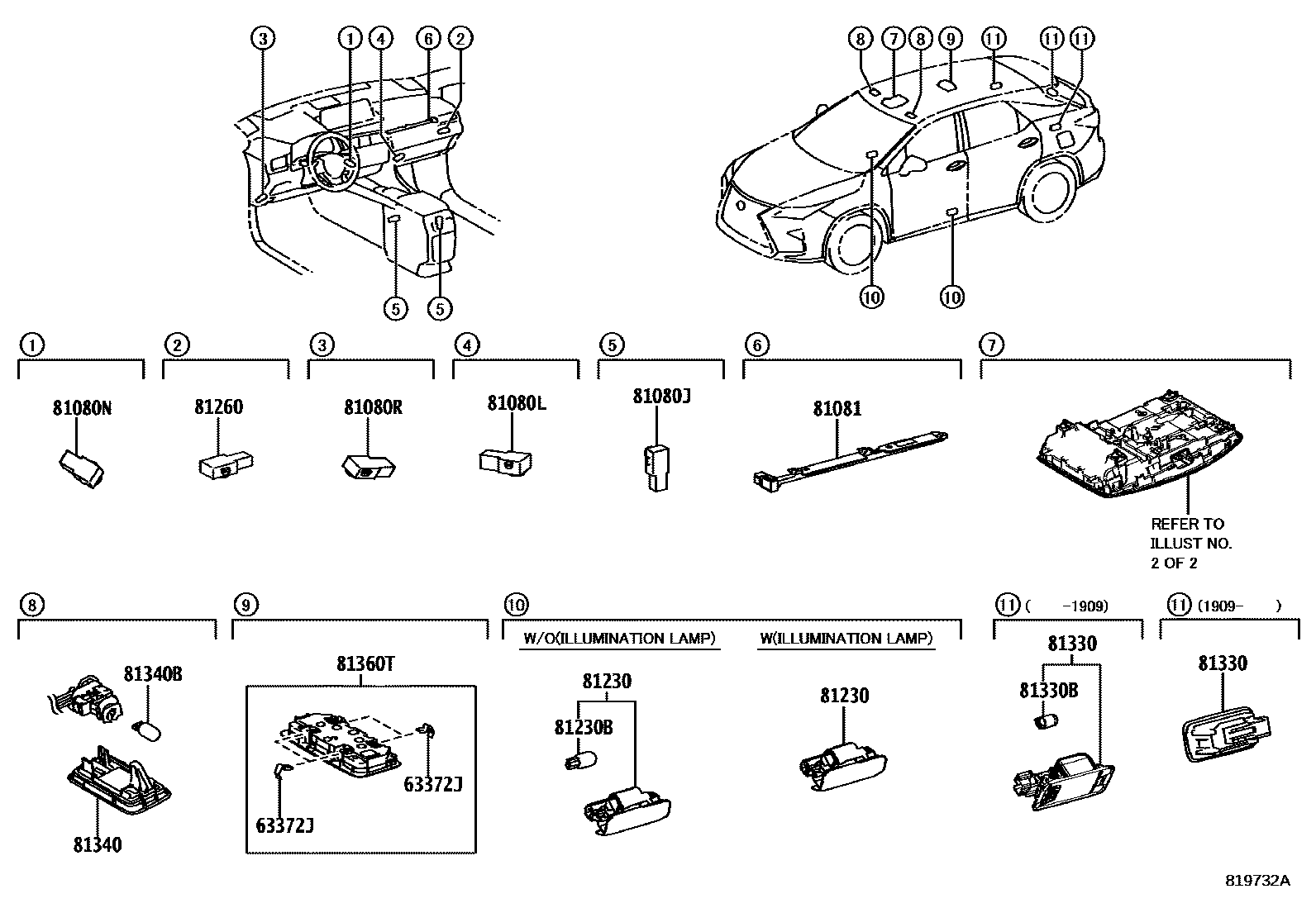

14 parts on this diagram · 2 diagrams in section
