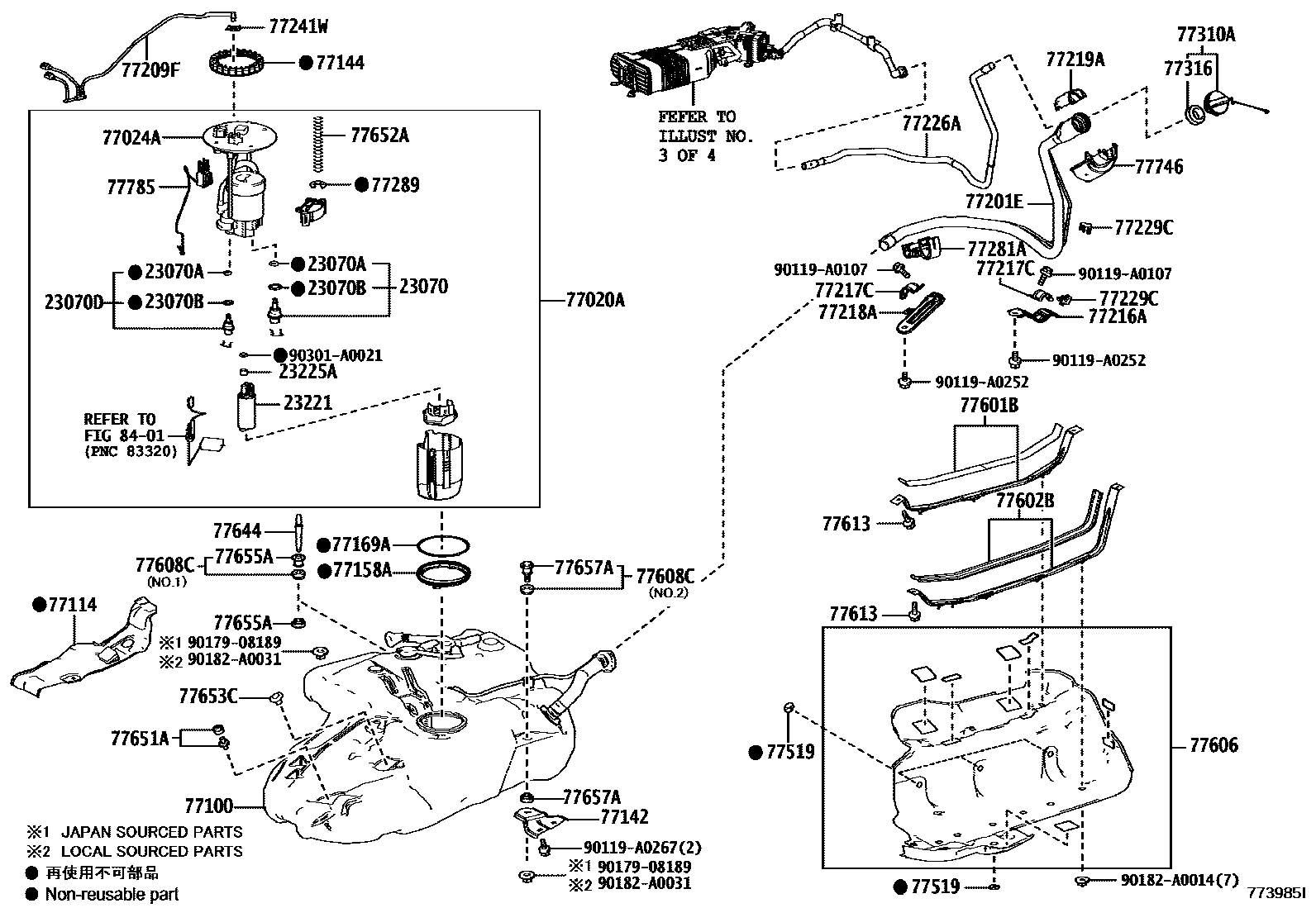

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL PUMP 0005 1FUEL TUBE 0006 1FUEL TUBE 0007 1FUEL TUBE 0008 1FUEL LID OPENER

23070VALVE ASSY, FUEL MAIN

main23070-36010i2GR#..GGL2#,GYL25201909

23070ARING, O, NO.1(FOR FUEL MAIN VALVE)

main90301-04013×2i2GR#..GGL2#,GYL2#201510-201909

23070BRING, O, NO.2(FOR FUEL MAIN VALVE)

main90301-15024×2i2GR#..GGL2#,GYL2#201510-201909

23070DVALVE ASSY, FUEL MAIN, NO.2

main23070-31030i2GR#..GGL2#,GYL25201909

23221PUMP, FUEL

main23221-31130i2GRFXS..GYL25201909

23225ASPACER, FUEL PUMP

main23225-0P010i2GRFKS..GGL2#201909

main23225-31020i2GRFXS..GYL25201909

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-0E130iGGL2#201909

main77020-48260iGYL25201510-201902

main77020-48261iGYL25201903-201909

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-0E100iGGL2#201510-201909

main77024-48090iGYL25201510-201909

77100TANK ASSY, FUEL

main77001-0E100iGGL2#201909

main77001-0E110iGYL2#201510-201603

main77001-0E111iGYL20201603-201608

77114PLATE, FUEL TANK SIDE, REAR

main77114-0E050iGGL2#201510-201909

77142BRACKET, FUEL TANK MOUNTING, REAR

main77142-0E010iGGL2#201510-201909

77144RETAINER, FUEL PUMP GAUGE

main77144-08010iGGL2#201510-201909

77158ASUPPORT, TANK SUCTION TUBE

main77158-08010iGGL2#201510-201909

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0C010iGGL2#201909

main77169-33030iGYL20201510-201608

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-0E110iGGL2#201510-201909

main77201-0E120iGYL25201510-201909

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0E090iGGL2#201909

main77209-0E100iGYL2#201510-201602

main77209-0E101iGYL25201603-201909

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-0E040iGYL20201510-201608

77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-0E050×2iGGL2#,GYL25201510-201909

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-0E060iGYL25201909

main77218-0E080iGGL2#201909

77219ACOVER, FUEL TANK FILLER PIPE

main77219-06110iGYL20201510-201608

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-0E080iGGL2#201510-201909

main77226-0E090iGYL20201510-201608

77229CCLAMP, BREATHER TUBE

main77229-0E010×2iGYL20201510-201608

77241WCLIP, TUBE JOINT

main77241-02010iGYL25201909

main77241-06020iGGL2#201510-201909

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-0E110iGGL2#201909

77281ACLAMP, FUEL FILLER PIPE

main77281-0E030iGYL20201510-201608

77289HOLDER, FUEL TANK PIPE SETTING

main77289-02020iGGL2#201510-201909

77310ACAP ASSY, FUEL TANK

main77300-06090iGYL25202107

main77300-07040iGGL2#201510-201909

main77300-53040iGYL20201510-201608

77316GASKET, FUEL TANK CAP

main77316-06090iGGL2#201909

main77316-75020iGYL25201909-202106

77519SPACER, FUEL TANK BRACKET

main77529-0E010×4iGGL2#201510-201909

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-0E030iGGL2#201909

main77601-0E040iGYL20201510-201608

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-0E030iGGL2#201510-201909

main77602-0E040iGYL25201510-201909

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-0E040iGGL2#201909

main77606-0E050iGYL20201510-201608

77608CCUSHION SET, FUEL TANK

main77608-0E011iGGL2#201909

NO.1

main77608-0E050iGGL2#201510-201909

NO.2

77613BOLT, FUEL TANK BAND SET

main90119-A0267×4iGYL20201510-201608

77644BOLT, FUEL TANK

main77644-0E010iGGL2#201510-201909

77651ACUSHION, FUEL TANK, NO.1

main77651-0E030iGGL2#201909

main77651-12070×3iGYL25201510-201909

77652ACUSHION, FUEL TANK, NO.2

main77652-0E020iGGL2#201510-201909

main77653-60060iGYL25201510-201909

77653CPIN, FUEL TANK BAND, NO.1

main77653-08010iGGL2#201510-201909

77655ACUSHION, FUEL TANK, NO.5

main77655-0E011iGGL2#201510-201909

77657ACUSHION, FUEL TANK, NO.5

main77655-0E020iGGL2#201510-201909

77746FILTER, CHARCOAL CANISTER, NO.2

main77745-06060iGYL20201510-201608

77785HARNESS, FUEL PUMP

main77785-0E080iGGL2#201510-201909

main77785-48070iGYL20201510-201608

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90119A0107

main90119-A0107

90119A0252

main90119-A0252

90119A0267

main90119-A0267

9017908189

main90179-08189

90182A0014

main90182-A0014

90182A0031

main90182-A0031

90301A0021

main90301-A0021

50 parts on this diagram · 8 diagrams in section
