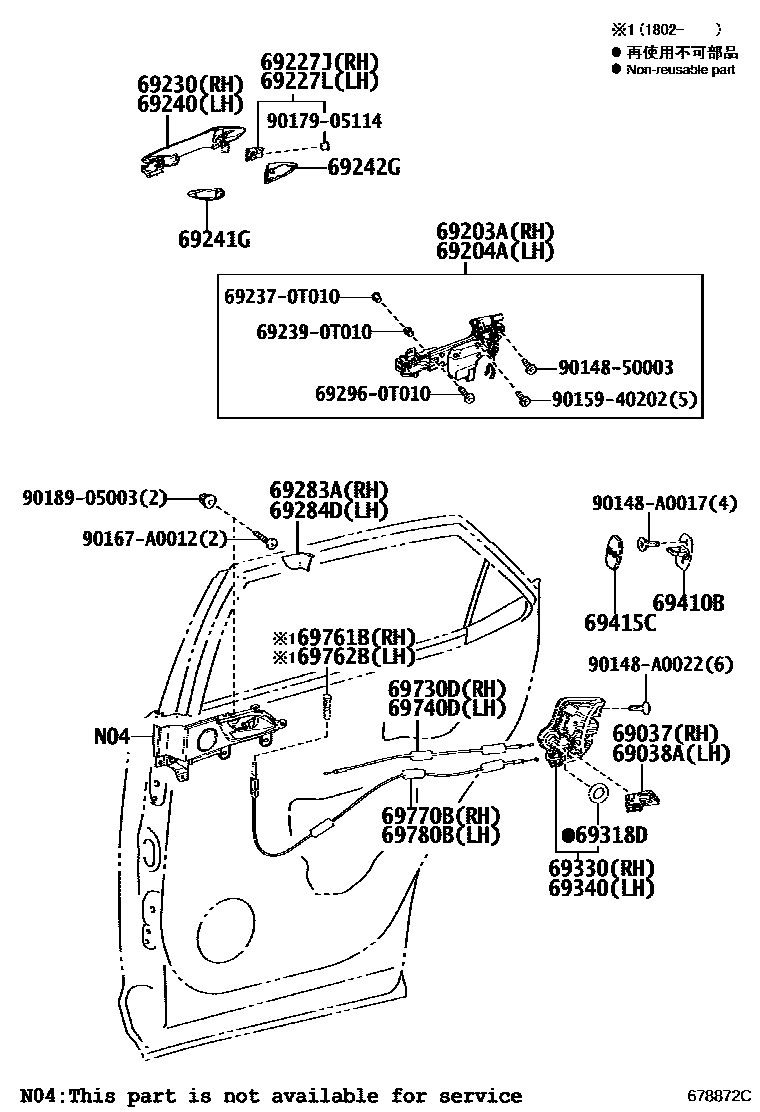

REAR DOOR LOCK & HANDLE

69037COVER SUB-ASSY, REAR DOOR LOCK, RH

main69037-02030iGYL20201510-201608

69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH

main69038-02030iGYL20201510-201608

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-0E070iGYL20201510-201608

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-0E070iGYL20201510-201608

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-0E080iGYL20201510-201608

BLACK MATERIAL

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69228-0E020iGYL20201510-201608

BLACK MATERIAL

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-0E100-A0iGGL2#,GYL25201510-201909

WHITE NOVA GF.,083

main69210-0E100-A1iGGL2#,GYL25201510-201909

SONIC QUARTZ,085

main69210-0E100-B0iGGL2#,GYL25201510-201909

MERCURY GRAY MC.,1H9

main69210-0E100-B1iGYL20201510-201608

PLATINUM SILVER ME.,1J4

main69210-0E100-B2iGGL2#,GYL25201608-201909

SONIC TITANIUM,1J7

main69210-0E100-C0iGGL2#,GYL25201510-201909

BLACK,212

main69210-0E100-C1iGGL2#,GYL25201510-201909

GRAPHITE BLACK GF.,223

main69210-0E100-D0iGGL2#,GYL25201909

RED MC.CS.,3R1

main69210-0E100-E0iGYL20201510-201608

SLEEK ECRU ME.,4U7

main69210-0E100-E1iGGL2#,GYL25201510-201901

AMBER CS.,4X2

main69210-0E100-E2iGGL2#,GYL25201909-202108

ICE ECRU M.M.,4X8

main69210-0E100-G0iGGL2#,GYL25201909

TERRANE KHAKI M.M.,6X4

main69210-0E100-J0iGGL2#,GYL25201510-201909

DEEP BLUE MC.,8X5

main69210-0E100-J1iGGL2#,GYL25202008

CELESTIAL BLUE GF.,8Y6

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69220-0E050-A0iGGL2#,GYL25201909

WHITE NOVA GF.,083

main69220-0E050-A1iGYL20201510-201608

SONIC QUARTZ,085

main69220-0E050-B0iGGL2#,GYL25201909

MERCURY GRAY MC.,1H9

main69220-0E050-B1iGYL20201510-201608

PLATINUM SILVER ME.,1J4

main69220-0E050-B2iGGL2#,GYL25201909

SONIC TITANIUM,1J7

main69220-0E050-C0iGGL2#,GYL25201909-202108

BLACK,212

main69220-0E050-C1iGYL20201510-201608

GRAPHITE BLACK GF.,223

main69220-0E050-D0iGYL20201510-201608

RED MC.CS.,3R1

main69220-0E050-E0iGGL2#,GYL25201510-201909

SLEEK ECRU ME.,4U7

main69220-0E050-E1iGGL2#,GYL25201510-201901

AMBER CS.,4X2

main69220-0E050-E2iGGL2#,GYL25201909-202108

ICE ECRU M.M.,4X8

main69220-0E050-G0iGGL2#,GYL25201909

TERRANE KHAKI M.M.,6X4

main69220-0E050-J0iGGL2#,GYL25201909

DEEP BLUE MC.,8X5

main69220-0E050-J1iGGL2#,GYL25202008

CELESTIAL BLUE GF.,8Y6

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-0E070iGYL20201510-201608

RH

main69242-0E080iGGL2#,GYL25201510-201909

LH

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69241-0E080iGGL2#,GYL25201510-201909

RH

main69242-0E090iGGL2#,GYL25201510-201909

LH

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-0E030-C0iGGL2#,GYL25201909-202008

BLACK,TRIM00,02,04,1#,2#,3#,4#,5#,7#

main69283-0E030-E0iGGL2#,GYL25201510-201909

NOBLE BROWN,TRIM0#,5#

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69284-0E030-C0iGYL20201510-201608

BLACK,TRIM1#,2#,4#

main69284-0E030-E0iGYL20201510-201608

NOBLE BROWN,TRIM0#,5#

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-AA010×2iGYL20201510-201608

69330LOCK ASSY, REAR DOOR, RH

main69050-0E050iGGL2#,GYL25201510-201909

69340LOCK ASSY, REAR DOOR, LH

main69060-0E050iGYL20201510-201608

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-33030×2iGYL20201510-201608

69415CCOVER, DOOR LOCK STRIKER, REAR

main69415-0E010×2iGYL20201510-201608

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-0E070iGYL20201510-201608

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-0E070iGGL2#,GYL25201909

69761BBEZEL, REAR DOOR LOCK CONTROL KNOB, RH

main69761-0E030iGGL2#,GYL25201802-201811

4 SETS

main69761-48040iGGL2#,GYL25201802-201811

1 SET

69762BBEZEL, REAR DOOR LOCK CONTROL KNOB, LH

main69761-0E030iGGL2#,GYL25201909

main69761-48040iGGL2#,GYL25201802-201811

1 SET

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-0E070iGYL20201510-201608

main69770-0E071iGGL2#,GYL25201802-201909

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-0E070iGYL20201510-201608

main69770-0E071iGGL2#,GYL25201802-201909

692370T010RETAINER, DOOR OUTSIDE HANDLE

main69237-0T010

692390T010PIN, BACK DOOR OUTSIDE HANDLE

main69239-0T010

692960T010SCREW, DOOR INSIDE HANDLE

main69296-0T010

9014850003

main90148-50003

90148A0017

main90148-A0017

90148A0022

main90148-A0022

9015940202

main90159-40202

90167A0012

main90167-A0012

9017905114

main90179-05114

9018905003

main90189-05003

33 parts on this diagram · 1 diagram in section
