E
EPC Data

FRONT DOOR LOCK & HANDLE

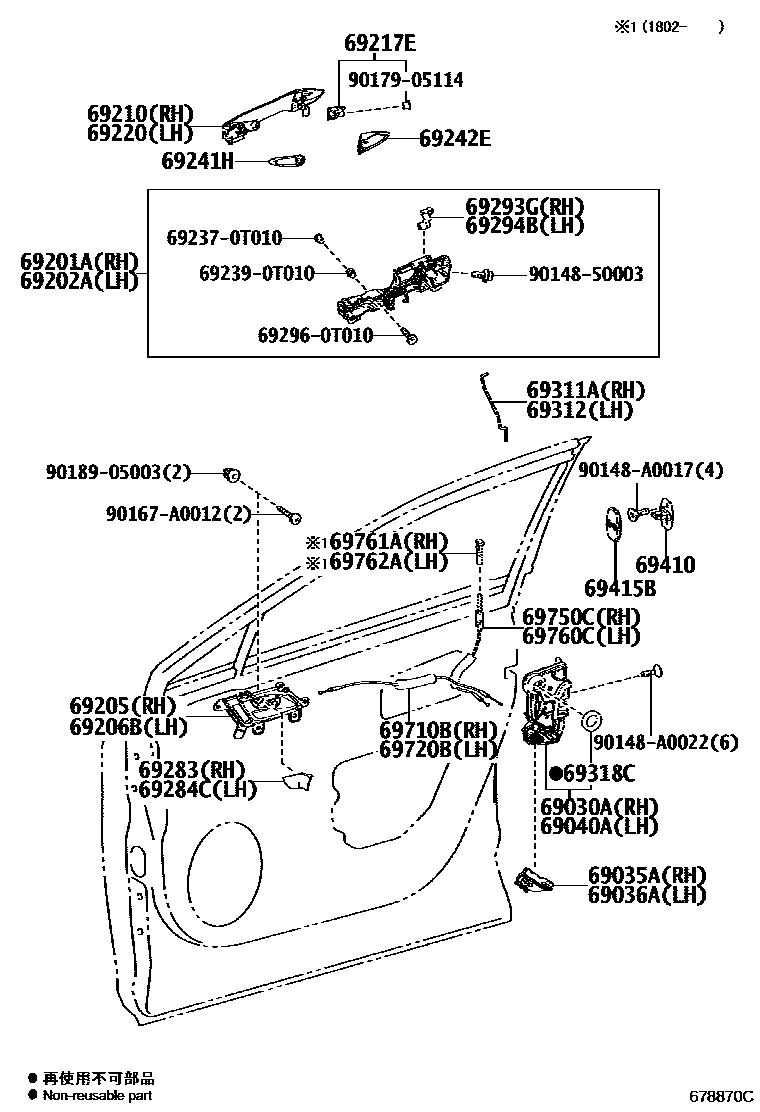

Parts diagram
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
main69030-02380i201909
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
main69035-02030i201510-201909
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
main69036-02030i201510-201608
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
main69040-02440i201909
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-0E020i201510-201909
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-0E020i201909
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main67605-0E020-C0i201510-201608
BLACK,TRIM1#,2#,4#
main67605-0E020-E0i201510-201608
NOBLE BROWN,TRIM0#,5#
main67605-0E021-C0i202008-202105
BLACK,TRIM0#,1#,2#,3#,4#,5#,7#; PREMIUM PACKAGE&22MY SE 2ROWS TMMC&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,5#,7#; PREMIUM PACKAGE&22MY SE 2ROWS TMMC&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM0#,1#,2#,3#,4#,5#,7#; PREMIUM PACKAGE&22MY SE 2ROWS TMMC&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM0#,1#,2#,3#,4#,5#,7#
main67605-0E021-E0i201909-202008
NOBLE BROWN,TRIM00,02,04; PREMIUM PACKAGE&22MY SE 2ROWS TMMC&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM00,02,04; PREMIUM PACKAGE&22MY SE 2ROWS TMMC&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN,TRIM00,02,04; PREMIUM PACKAGE&22MY SE 2ROWS TMMC&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),NOBLE BROWN,TRIM00,02,04
main67605-0E022-C0i202106-202210
PREMIUM PACKAGE&22MY SE 2ROWS TMMC&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK,TRIM0#,1#,2#,3#,5#; PREMIUM PACKAGE&22MY SE 2ROWS TMMC&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM0#,1#,2#,3#,5#; PREMIUM PACKAGE&22MY SE 2ROWS TMMC&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM0#,1#,2#,3#,5#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main67606-0E020-C0i201712-201908
BLACK,TRIM1#,2#
main67606-0E030-C0supersedes 67606-0E020-C0i201510-201712
BLACK,TRIM1#,2#,3#,4#; PREMIUM PACKAGE&DOOR TRIM-BAMBOO WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK,TRIM1#,2#,3#,4#; PREMIUM PACKAGE&DOOR TRIM-BAMBOO WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM1#,2#,3#,4#; PREMIUM PACKAGE&DOOR TRIM-BAMBOO WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM1#,2#,3#,4#; PREMIUM PACKAGE&DOOR TRIM-ENGIEERED WOOD & W/O(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK,TRIM1#,2#,3#,4#; PREMIUM PACKAGE&DOOR TRIM-ENGIEERED WOOD & W/O(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM1#,2#,3#,4#; PREMIUM PACKAGE&DOOR TRIM-ENGIEERED WOOD & W/O(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM1#,2#,3#,4#
main67606-0E030-E0i201510-201608
NOBLE BROWN,TRIM0#,5#
main67606-0E021-C0i201909-202008
BLACK,TRIM04,1#,2#; PREMIUM PACKAGE&22MY SE 2ROWS TMMC&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK,TRIM04,1#,2#; PREMIUM PACKAGE&22MY SE 2ROWS TMMC&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM04,1#,2#; PREMIUM PACKAGE&22MY SE 2ROWS TMMC&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM04,1#,2#
main67606-0E021-E0i201909-202008
NOBLE BROWN,TRIM04; PREMIUM PACKAGE&22MY SE 2ROWS TMMC&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM04; PREMIUM PACKAGE&22MY SE 2ROWS TMMC&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN,TRIM04; PREMIUM PACKAGE&22MY SE 2ROWS TMMC&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),NOBLE BROWN,TRIM04
main67606-0E022-C0i202106-202210
PREMIUM PACKAGE&22MY SE 2ROWS TMMC&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK,TRIM0#,1#,2#; PREMIUM PACKAGE&22MY SE 2ROWS TMMC&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM0#,1#,2#; PREMIUM PACKAGE&22MY SE 2ROWS TMMC&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM0#,1#,2#
main67606-0E031-C0i202008-202105
"F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,5#,7#; "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM0#,1#,2#,3#,4#,5#,7#; "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP),BLACK,TRIM0#,1#,2#,3#,4#,5#,7#; "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,5#,7#; "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SPEAKER-15SPEAKER &*MAR,BLACK,TRIM0#,1#,2#,3#,4#,5#,7#; "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP),BLACK,TRIM0#,1#,2#,3#,4#,5#,7#; "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,5#,7#; "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM0#,1#,2#,3#,4#,5#,7#; "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BLACK,TRIM0#,1#,2#,3#,4#,5#,7#; F SPORT LO&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,5#,7#; F SPORT LO&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM0#,1#,2#,3#,4#,5#,7#; F SPORT LO&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP),BLACK,TRIM0#,1#,2#,3#,4#,5#,7#; F SPORT LO&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,5#,7#; F SPORT LO&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM0#,1#,2#,3#,4#,5#,7#; F SPORT LO&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP),BLACK,TRIM0#,1#,2#,3#,4#,5#,7#
main67606-0E031-E0i201909-202008
"F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,NOBLEBROWN,TRIM00,02; "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN,TRIM00,02; "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP),NOBLE BROWN,TRIM00,02; "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM00,02; "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SPEAKER-15SPEAKER &*MAR,NOBLE BROWN,TRIM00,02; "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP),NOBLE BROWN,TRIM00,02; "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM00,02; "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN,TRIM00,02; "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),NOBLE BROWN,TRIM00,02; F SPORT LO&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM00,02; F SPORT LO&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN,TRIM00,02; F SPORT LO&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP),NOBLE BROWN,TRIM00,02; F SPORT LO&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM00,02; F SPORT LO&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN,TRIM00,02; F SPORT LO&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP),NOBLE BROWN,TRIM00,02; PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM00,02; PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN,TRIM00,02; PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),NOBLE BROWN,TRIM00,02; PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM00,02; PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN,TRIM00,02; PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP),NOBLE BROWN,TRIM00,02
main67606-0E032-C0i202106
"F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK,TRIM0#,1#,2#,3#,5#; "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM0#,1#,2#,3#,5#; "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP),BLACK,TRIM0#,1#,2#,3#,5#; "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK,TRIM0#,1#,2#,3#,5#; "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SPEAKER-15SPEAKER &*MAR,BLACK,TRIM0#,1#,2#,3#,5#; "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP),BLACK,TRIM0#,1#,2#,3#,5#; "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BLACK,TRIM0#,1#,2#,3#,5#; "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM0#,1#,2#,3#,5#; "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BLACK,TRIM0#,1#,2#,3#,5#; F SPORT LO&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK,TRIM0#,1#,2#,3#,5#; F SPORT LO&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM0#,1#,2#,3#,5#; F SPORT LO&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP),BLACK,TRIM0#,1#,2#,3#,5#; F SPORT LO&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK,TRIM0#,1#,2#,3#,5#; F SPORT LO&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM0#,1#,2#,3#,5#; F SPORT LO&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP),BLACK,TRIM0#,1#,2#,3#,5#; PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK,TRIM0#,1#,2#,3#,5#; PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM0#,1#,2#,3#,5#; PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM0#,1#,2#,3#,5#; PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK,TRIM0#,1#,2#,3#,5#; PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM0#,1#,2#,3#,5#; PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP),BLACK,TRIM0#,1#,2#,3#,5#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-0E100-A0i201909
WHITE NOVA GF.,083
main69210-0E100-A1i201510-201608
SONIC QUARTZ,085
main69210-0E100-B0i201909
MERCURY GRAY MC.,1H9
main69210-0E100-B1i201510-201909
PLATINUM SILVER ME.,1J4
main69210-0E100-B2i201608-201909
SONIC TITANIUM,1J7
main69210-0E100-C0i201510-201909
BLACK,212
main69210-0E100-C1i201510-201909
GRAPHITE BLACK GF.,223
main69210-0E100-D0i201510-201608
RED MC.CS.,3R1
main69210-0E100-E0i201510-201909
SLEEK ECRU ME.,4U7
main69210-0E100-E1i201510-201608
AMBER CS.,4X2
main69210-0E100-E2i201909-202108
ICE ECRU M.M.,4X8
main69210-0E100-G0i201909
TERRANE KHAKI M.M.,6X4
main69210-0E100-J0i201510-201608
DEEP BLUE MC.,8X5
main69210-0E100-J1i202008
CELESTIAL BLUE GF.,8Y6
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
main69217-0E100i201510-201909
BLACK MATERIAL
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69220-0E050-A0i201909
WHITE NOVA GF.,083
main69220-0E050-A1i201510-201608
SONIC QUARTZ,085
main69220-0E050-B0i201909
MERCURY GRAY MC.,1H9
main69220-0E050-B1i201510-201909
PLATINUM SILVER ME.,1J4
main69220-0E050-B2i201608-201909
SONIC TITANIUM,1J7
main69220-0E050-C0i201510-201909
BLACK,212
main69220-0E050-C1i201510-201909
GRAPHITE BLACK GF.,223
main69220-0E050-D0i201510-201608
RED MC.CS.,3R1
main69220-0E050-E0i201510-201909
SLEEK ECRU ME.,4U7
main69220-0E050-E1i201510-201608
AMBER CS.,4X2
main69220-0E050-E2i201909-202108
ICE ECRU M.M.,4X8
main69220-0E050-G0i201909
TERRANE KHAKI M.M.,6X4
main69220-0E050-J0i201510-201608
DEEP BLUE MC.,8X5
main69220-0E050-J1i202008
CELESTIAL BLUE GF.,8Y6
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
main69241-0E070i201510-201909
RH
main69242-0E080i201909
LH
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69241-0E080i201909
RH
main69242-0E090i201909
LH
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
main69283-0E030-C0i201909-202008
BLACK,TRIM00,02,04,1#,2#,3#,4#,5#,7#
main69283-0E030-E0i201510-201909
NOBLE BROWN,TRIM0#,5#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
main69284-0E030-C0i201510-201608
BLACK,TRIM1#,2#,4#
main69284-0E030-E0i201510-201608
NOBLE BROWN,TRIM0#,5#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
main69293-12030i201510-201608
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
main69293-12040i201510-201608
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-0E070i201510-201909
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-0E060i201510-201909
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-AA010×2i201510-201608
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-33030×2i201510-201608
69415BCOVER, DOOR LOCK STRIKER, FRONT
main69415-0E010×2i201510-201608
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-0E070i201510-201608
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-0E070i201510-201608
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-0E070i201510-201608
main69750-0E071i201909
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-0E070i201510-201608
main69750-0E071i201802-201909
69761ABEZEL, DOOR LOCK CONTROL KNOB, RH
main69761-0E030i201811-201909
main69761-48040i201802-201811
1 SET
69762ABEZEL, DOOR LOCK CONTROL KNOB, LH
main69761-0E030i201802-201811
4 SETS
main69761-48040i201802-201811
1 SET
692370T010RETAINER, DOOR OUTSIDE HANDLE
main69237-0T010
692390T010PIN, BACK DOOR OUTSIDE HANDLE
main69239-0T010
692960T010SCREW, DOOR INSIDE HANDLE
main69296-0T010
9014850003
main90148-50003
90148A0017
main90148-A0017
90148A0022
main90148-A0022
90167A0012
main90167-A0012
9017905114
main90179-05114
9018905003
main90189-05003

37 parts on this diagram · 1 diagram in section
