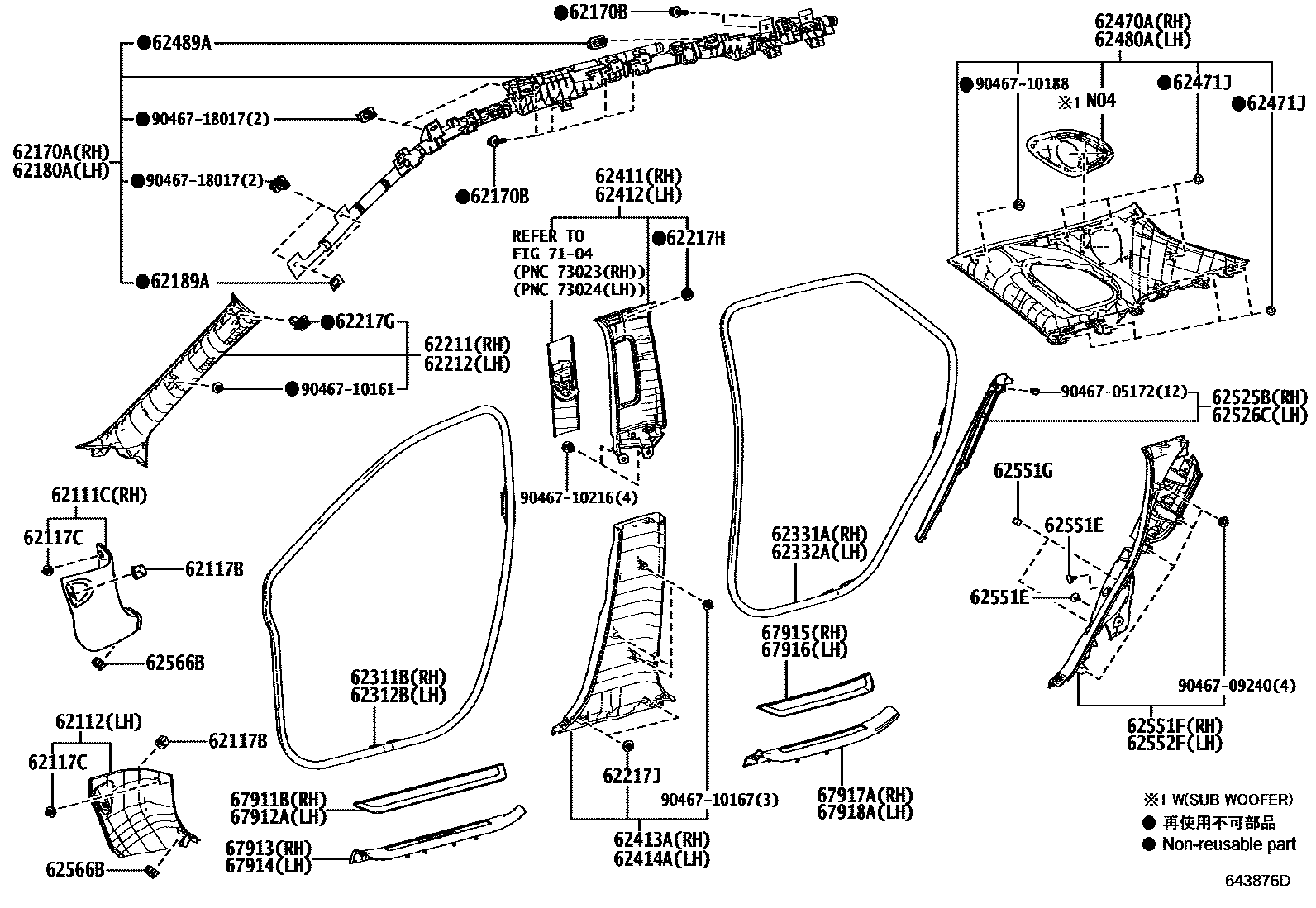

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM1#,2#,3#,4#
NOBLE BROWN,TRIM0#,5#
62112BOARD, COWL SIDE TRIM, LH
BLACK,TRIM0#,1#,2#,3#,4#,5#,7#
NOBLE BROWN,TRIM00,02,04
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
62211GARNISH, FRONT PILLAR, RH
ECRU,TRIM0#,5#
MOON STONE,TRIM1#,20,23,24,29,4#
BLACK,TRIM14,15,25,26,3#
62212GARNISH, FRONT PILLAR, LH
ECRU,TRIM0#,5#
MOON STONE,TRIM1#,2#,4#
BLACK,TRIM25,26,27,28,3#,7#
62217GCLIP, FRONT PILLAR GARNISH
62217HCLIP, CENTER PILLER GARNISH
62217JCLIP, CENTER PILLER GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62411GARNISH, CENTER PILLAR, RH
ECRU,TRIM0#,5#
MOON STONE,TRIM10,12,13,20,23,24,4#
BLACK,TRIM14,15,25,26,3#
62412GARNISH, CENTER PILLAR, LH
ECRU,TRIM0#,5#
MOON STONE,TRIM1#,2#,4#
BLACK,TRIM25,26,27,28,3#,7#
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM00,02,04,1#,2#,3#,4#,5#,7#
NOBLE BROWN,TRIM0#,5#
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM1#,2#,4#
NOBLE BROWN,TRIM0#,5#
62470AGARNISH ASSY, ROOF SIDE, INNER RH
SPEAKER-15SPEAKER & *MAR,ECRU,TRIM0#,5#
SPEAKER-15SPEAKER & *MAR,MOON STONE,TRIM1#,20,23,24,29,4#
SPEAKER-15SPEAKER & *MAR,BLACK,TRIM14,15,25,26,3#
62471JCLIP (FOR ROOF SIDE GARNISH)
62480AGARNISH ASSY, ROOF SIDE, INNER LH
SPEAKER-15SPEAKER & *MAR,ECRU,TRIM0#,5#
SPEAKER-15SPEAKER & *MAR,MOON STONE,TRIM1#,20,23,24,29,4#
SPEAKER-15SPEAKER & *MAR,BLACK,TRIM25,26,27,28,3#,7#
62489ACLIP, ROOF SIDE INNER GARNISH
62525BPAD, QUARTER TRIM, UPPER RH
BLACK,TRIM1#,2#,3#,4#
NOBLE BROWN,TRIM00,02,04
BLACK,TRIM0#,1#,2#,3#,5#,7#
62526CPAD, QUARTER TRIM, UPPER LH
BLACK,TRIM1#,2#,4#
NOBLE BROWN,TRIM0#,5#
BLACK,TRIM0#,1#,2#,3#,5#,7#
62551ECLIP(FOR REAR SEAT SIDE GARNISH)
BLACK,TRIM1#,2#,4#
BLACK
62551FGARNISH, REAR SEAT SIDE, RH
BLACK,TRIM00,02,04,1#,2#,3#,4#,5#,7#
NOBLE BROWN,TRIM00,02,04
BLACK,TRIM00,02,04,1#,2#,3#,4#,5#,7#
NOBLE BROWN,TRIM00,02,04
62551GCLIP
62552FGARNISH, REAR SEAT SIDE, LH
BLACK,TRIM0#,1#,2#,3#,4#,5#,7#
NOBLE BROWN,TRIM00,02,04
BLACK,TRIM1#,2#,4#
NOBLE BROWN,TRIM00,02,04
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
67913PLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM1#,2#,4#; DOOR SCUFF PLATE-W(FRONT:ILLUMINATED(LED)&REAR)&ACCESSORY,BLACK,TRIM1#,2#,3#,4#; DOOR SCUFF PLATE-W(FRONT:ILLUMINATED(LED)&REAR)&ACCESSORY,BLACK,TRIM1#,2#,4#
DOOR SCUFF PLATE-FRONT:ILLUMINATED(LED)&REAR&ACCESSORY,NOBLE BROWN,TRIM02,04; NOBLE BROWN,TRIM02,04
DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR),BLACK,TRIM1#,2#,3#,4#; DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR),BLACK,TRIM1#,2#,4#
DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR),NOBLE BROWN,TRIM0#,5#
DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS,BLACK,TRIM1#,2#,3#
67914PLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM1#,2#,4#; DOOR SCUFF PLATE-W(FRONT:ILLUMINATED(LED)&REAR)&ACCESSORY,BLACK,TRIM1#,2#,3#,4#; DOOR SCUFF PLATE-W(FRONT:ILLUMINATED(LED)&REAR)&ACCESSORY,BLACK,TRIM1#,2#,4#
DOOR SCUFF PLATE-FRONT:ILLUMINATED(LED)&REAR&ACCESSORY,NOBLE BROWN,TRIM02,04; NOBLE BROWN,TRIM02,04
DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR),BLACK,TRIM1#,2#,3#,4#; DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR),BLACK,TRIM1#,2#,4#
DOOR SCUFF PLATE-FRONT:ILLUMINATED(LED)&REAR,NOBLE BROWN,TRIM00
DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS,BLACK,TRIM1#,2#,3#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
67917APLATE, REAR DOOR SCUFF, RH
BLACK,TRIM1#,2#,4#
NOBLE BROWN,TRIM0#,5#
BLACK,TRIM00,02,04,1#,2#,3#,4#,5#,7#
NOBLE BROWN,TRIM00,02,04
67918APLATE, REAR DOOR SCUFF, LH
BLACK,TRIM1#,2#,3#,4#
NOBLE BROWN,TRIM0#,5#
BLACK,TRIM00,02,04,1#,2#,3#,4#,5#,7#
NOBLE BROWN,TRIM00,02,04
7104SEAT BELT & CHILD RESTRAINT SEAT
9046705172
main90467-05172
9046709240
main90467-09240
9046710161
main90467-10161
9046710167
main90467-10167
9046710188
main90467-10188
9046710216
main90467-10216
9046718017
main90467-18017
48 parts on this diagram · 1 diagram in section
