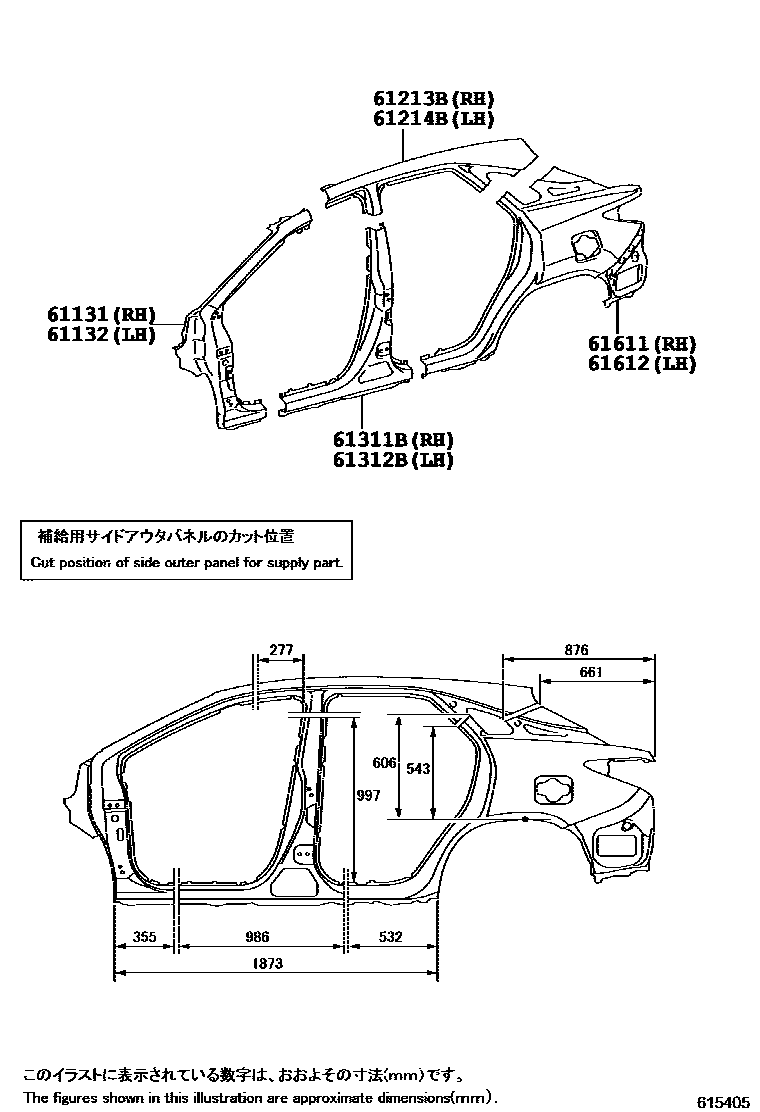

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-0E080iGYL20201510-201608

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-0E080iGYL20201510-201608

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-0E090iGGL2#,GYL25201909

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-0E090iGYL20201510-201608

61311BPILLAR, CENTER BODY, OUTER RH

main61311-0E070iGYL20201510-201608

61312BPILLAR, CENTER BODY, OUTER LH

main61312-0E070iGYL20201510-201608

61611PANEL, QUARTER, RH

main61601-0E050iGGL2#; GYL25201510-201701

LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)

main61601-0E051supersedes 61601-0E061iGYL25201701-201712

61612PANEL, QUARTER, LH

main61602-0E050iGGL2#; GYL25201510-201701

LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)

main61602-0E051supersedes 61602-0E061iGYL25201701-201712

8 parts on this diagram · 3 diagrams in section
