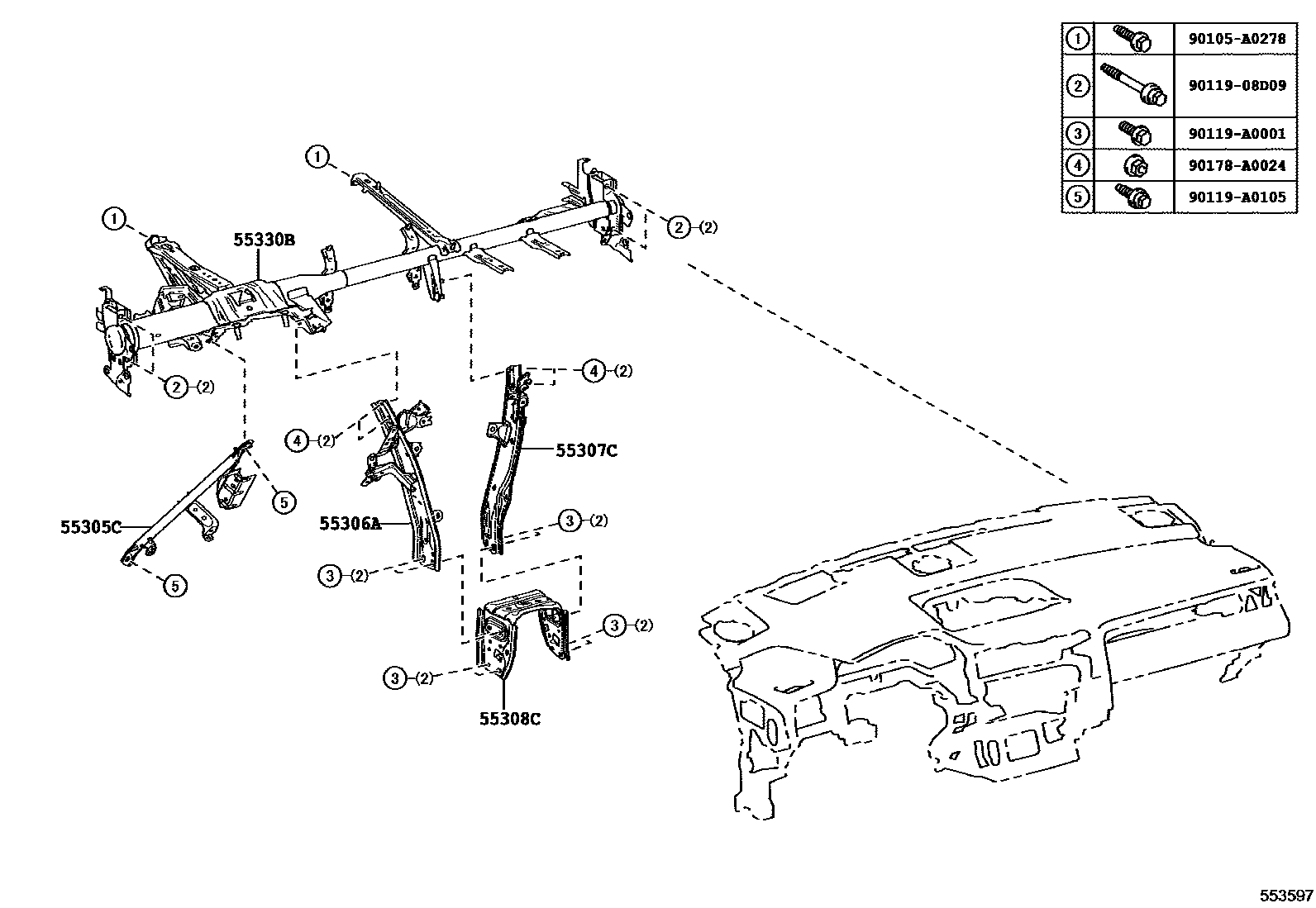

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1DRIVER SIDE 0006 1DRIVER SIDE 0007 1CENTER 0008 1CENTER 0009 1PASSENGER SIDE 0010 1PASSENGER SIDE

55305CREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL

main55305-0E010iGYL20201510-201608

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0E090iGGL2#,GYL25201909

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-0E090iGGL2#,GYL25201909

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-0E070iGGL2#,GYL25201909

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-0E090iGYL20201510-201608

main55330-0E180iGGL2#,GYL25201909

90105A0278

main90105-A0278

9011908D09

main90119-08D09

90119A0001

main90119-A0001

90119A0105

main90119-A0105

90178A0024

main90178-A0024

10 parts on this diagram · 10 diagrams in section
