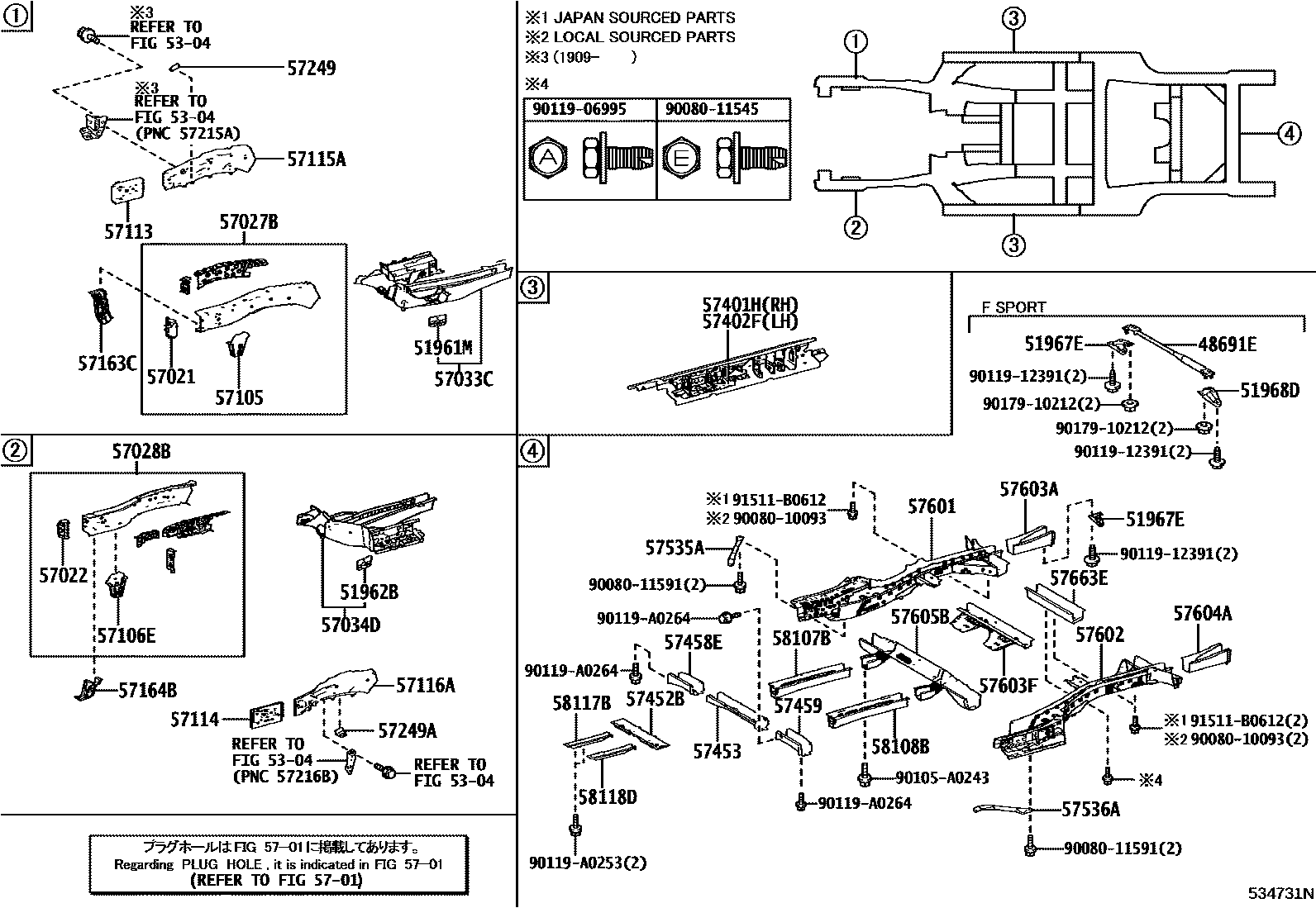

FLOOR SIDE MEMBER

48691EDAMPER, SUSPENSION TOWER

main48691-48060i201909

"F SPORT"*(F); F SPORT LO

51961MHOOK, FRONT RH

main51961-0E090i201510-201608

51962BHOOK, FRONT LH

main51961-0E090i201510-201608

51967EHOOK, TRANSPORT, REAR RH

main51967-0E020i201510-201909

TOWING HITCH-TOWING RECEIVE HITCH & WIRE

main51967-0E050supersedes 51967-0E020i201909

"F SPORT"*(F); F SPORT LO

51968DHOOK, TRANSPORT, REAR LH

main51968-0E070i201909

"F SPORT"*(F); F SPORT LO

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

5701HOLE PLUG

→ Go to FIG 57-01

57021BRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH

main57021-0E011i201510-201608

main57021-0E050i202002

57022BRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH

main57022-0E011i201510-201909

main57022-0E050i202002

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-0E050i201510-201608

main57027-0E051i202002

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-0E070i201510-201909

main57028-0E071i202002

57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH

main57033-0E070i201510-201608

main57033-0E071i201710-201909

57034DREINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH

main57034-0E070i201510-201608

main57034-0E071i201710-201909

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-06010i201510-201608

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-0E010i201510-201909

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-0E010i201510-201608

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-0E010i201510-201608

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-0E020i201510-201608

main57115-0E040i201909

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-0E021i201510-201608

57163CREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH

main57163-0E040i201510-201608

57164BREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH

main57164-0E040i201510-201608

57249BRACKET, FLEXIBLE HOSE, NO.1

main57249-0E010i201510-201608

57249ABRACKET, FREXIBLE HOUSE, NO.1, LH

main57249-0E010i201510-201608

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-0E071i201510-201608

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-0E071i201510-201608

57452BMEMBER, FRONT FLOOR CROSS, NO.2

main57452-0E014i201510-201608

57453MEMBER, FRONT FLOOR CROSS, NO.3

main57453-0E050i201510-201608

57458EMEMBER, FRONT FLOOR CROSS, NO.1

main57458-0E040i201510-201608

57459MEMBER, FRONT FLOOR CROSS, NO.2

main57459-0E040i201510-201608

57535ABRACE, FRONT FLOOR, RH

main57535-0E020i201510-201909

main57535-48070i201510-201909

57536ABRACE, FRONT FLOOR, LH

main57536-0E010i201909

main57536-48050i201510-201909

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-0E908i201510-201909

main57601-0E909i201911

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-0E908i201909-201911

main57602-0E909i201911

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57606-0E021i201510-201608

57603FGUSSET SUB-ASSY, REAR FLOOR CROSSEMEMBER

main57603-0E070i201510-201909

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57607-0E021i201510-201608

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-0E051i201909

main57605-0E061i201510-201608

57663EMEMBER, REAR FLOOR CROSS, CENTER

main57663-0E021i201510-201608

58107BREINFORCEMENT SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH

main58107-0E050i201510-201608

58108BREINFORCEMENT SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH

main58108-0E050i201510-201608

58117BREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-0E010i201510-201608

58118DREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-0E010i201510-201908

main58118-0E040i201909

9008010093

main90080-10093

9008011545

main90080-11545

9008011591

main90080-11591

90105A0243

main90105-A0243

9011906995

main90119-06995

9011912391

main90119-12391

90119A0253

main90119-A0253

90119A0264

main90119-A0264

9017910212

main90179-10212

91511B0612

main91511-B0612

52 parts on this diagram · 3 diagrams in section
