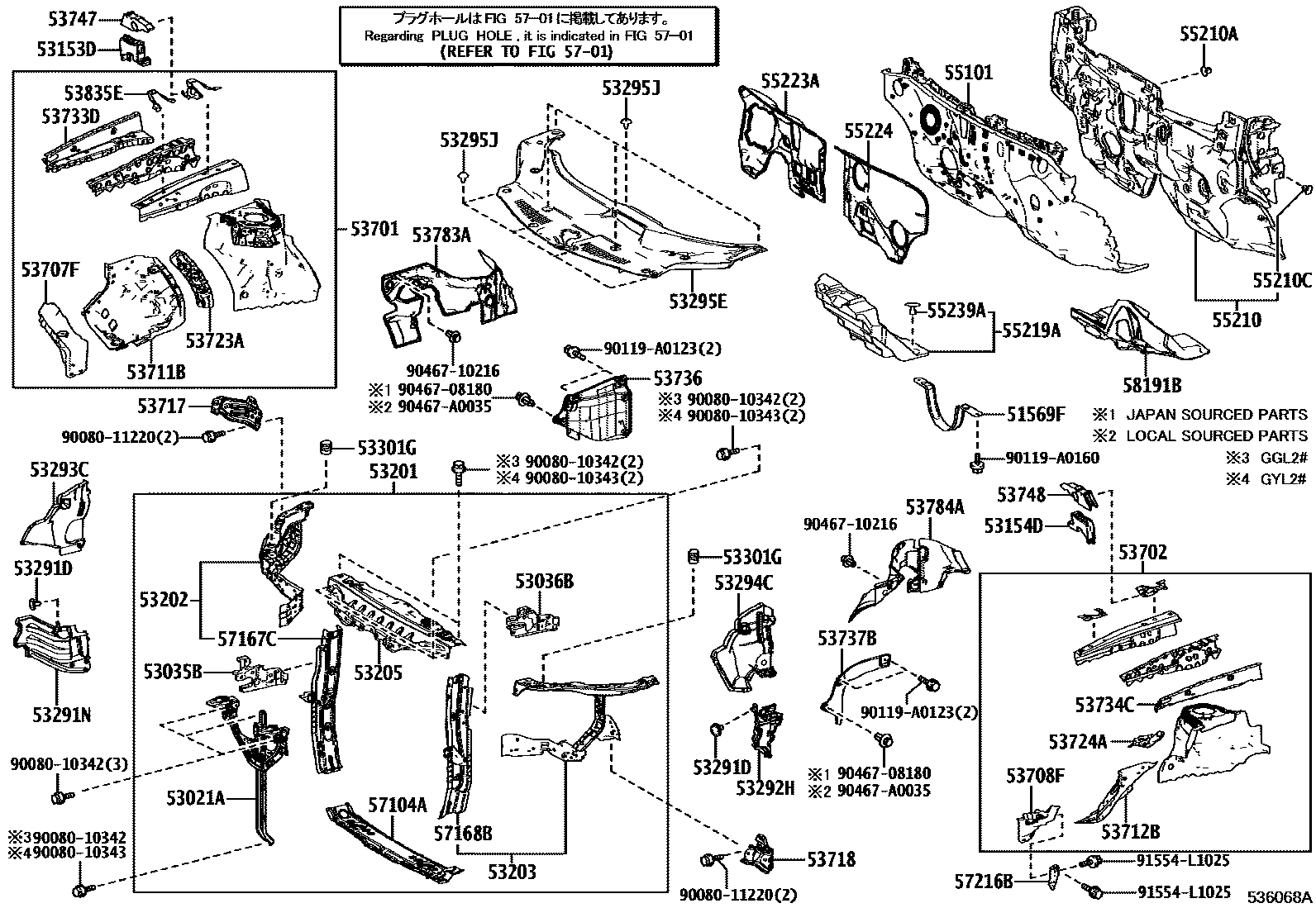

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

51569FGUARD, PROPELLER SHAFT

main51569-0E011iGGL25201909

53021AMOULDING SUB-ASSY, RADIATOR GRILLE

main53021-0E010iGGL2#,GYL25201909

53035BBRACKET SUB-ASSY, HEADLAMP MOUNTING, RH

main53035-0E010iGYL20201510-201608

main53035-0E020iGGL2#,GYL25201909

53036BBRACKET SUB-ASSY, HEADLAMP MOUNTING, LH

main53036-0E010iGGL2#,GYL25201510-201909

main53036-0E020iGGL2#,GYL25201909

53153DGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-0E040iGYL20201510-201608

53154DGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-0E040iGYL20201510-201608

53201SUPPORT SUB-ASSY, RADIATOR

main53201-0E110iGYL20201510-201608

main53201-0E130iGGL2#,GYL25201909

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-0E090iGYL20201510-201608

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-0E110iGYL20201510-201608

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-0E030iGYL20201510-201608

53291DCLIP, RADIATOR SUPPORT TO FRAME

main90467-07215×2iGYL20201510-201608

53291NSEAL, RADIATOR SUPPORT TO FRAME, RH

main53291-0E010iGYL20201510-201608

main53291-0E020iGGL2#,GYL25201909

53292HSEAL, RADIATOR SUPPORT TO FRAME, LH

main53292-0E010iGYL20201510-201608

main53292-0E020iGGL2#,GYL25201909

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-0E130iGGL2#,GYL25201510-201909

main53293-0E170iGGL2#,GYL25201909

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-0E120iGGL2#201510-201909

main53294-0E130iGYL20201510-201608

main53294-0E170iGGL2#201909

main53294-0E180iGYL25201909

53295ESEAL, COOL AIR INTAKE DUCT

main53295-0E090iGGL2#,GYL25201510-201909

main53295-0E130iGGL2#,GYL25201909

53295JCLIP, COOL AIR INTAKE DUCT SEAL

main90467-07217×9iGYL20201510-201608

53301GCUSHION, HOOD BUMPER

main90541-15004×2iGYL20201510-201608

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-0E081iGYL20201510-201608

main53701-0E110iGGL2#,GYL25201909

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-0E071iGYL20201510-201608

53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH

main53707-0E050iGGL2#,GYL25201909

main53707-0T010iGGL2#,GYL25201510-201909

53708FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH

main53708-0E010iGYL20201510-201608

53711BAPRON, FRONT FENDER, FRONT RH

main53711-0E050iGYL20201510-201608

53712BAPRON, FRONT FENDER, FRONT LH

main53712-0E050iGYL20201510-201608

53717PLATE, FENDER APRON, RH

main53717-0E090iGYL20201510-201608

53718PLATE, FENDER APRON, LH

main53718-0E090iGGL2#,GYL25201909

53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH

main53723-0E010iGGL2#,GYL2#201510-201909

53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH

main53724-0E010iGGL2#,GYL2#201510-201909

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-0E050iGGL2#,GYL25201909

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-0E050iGYL20201510-201608

53736SEAL, FRONT FENDER APRON, RH

main53736-0E020iGYL20201510-201608

53737BSEAL, FRONT FENDER APRON, LH

main53737-06040iGGL2#201909

main53737-0E060iGYL25201909

53747PLATE, AIR SEALED, RH

main53747-0E010iGYL20201510-201608

53748PLATE, AIR SEALED, LH

main53748-0E010iGYL20201510-201608

53783AINSULATOR, APRON FRONT FENDER, RH

main53783-0E040iGYL20201510-201608

53784AINSULATOR, APRON FRONT FENDER, LH

main53784-0E040iGYL20201510-201608

53835EBRACE, FRONT FENDER TO APRON, RH

main53835-0E070iGYL20201510-201608

55101PANEL SUB-ASSY, DASH

main55101-0E100iGGL2#201909-201910

main55101-0E101iGGL2#201911

main55101-0E110iGYL2#201510-201909

main55101-0E111iGYL25201911

55210INSULATOR ASSY, DASH PANEL

main55210-0E090iGYL20201510-201608

55210ACLIP

main90467-06197×4iGGL2#,GYL25201909

55210CCLIP

main90467-13079×2iGGL2#,GYL2#201510-201909

55219APACKING, DASH PANEL HOLE COVER

main55219-0E080iGYL20201510-201608

55223AINSULATOR, DASH PANEL, OUTER

main55223-0E090iGYL20201510-201608

55224INSULATOR, DASH PANEL, OUTER LH

main55224-0E010iGGL2#,GYL25201909

55239APLATE, DASH PANEL INSULATOR, NO.3

main55239-48020×2iGYL20201510-201608

5701HOLE PLUG

→ Go to FIG 57-01

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-0E050iGYL20201510-201608

57167CGUSSET, FRONT CROSSMEMBER SIDE, RH

main57167-0E070iGYL20201510-201608

57168BGUSSET, FRONT CROSSMEMBER SIDE, LH

main57168-0E070iGYL20201510-201608

57216BBRACKET, BODY MOUNTING, NO.3 LH

main57216-0E030iGYL20201510-201608

58191BFOOTREST, FRONT FLOOR

main58191-0E080iGYL20201510-201608

9008010342

main90080-10342

9008010343

main90080-10343

9008011220

main90080-11220

90119A0123

main90119-A0123

90119A0160

main90119-A0160

9046708180

main90467-08180

9046710216

main90467-10216

90467A0035

main90467-A0035

91554L1025

main91554-L1025

60 parts on this diagram · 2 diagrams in section
