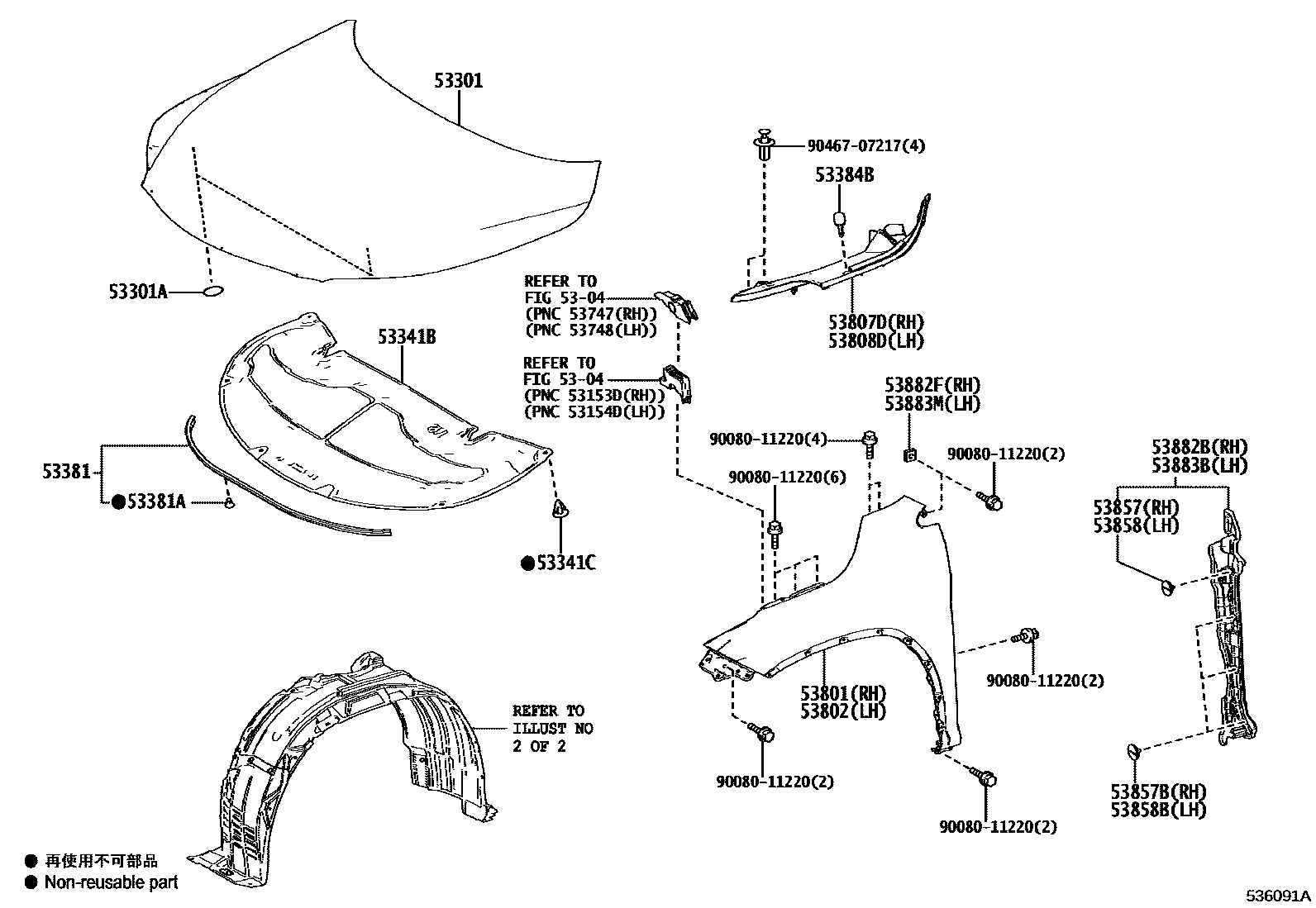

HOOD & FRONT FENDER

0001 1 0002 1

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

53301HOOD SUB-ASSY

main53301-0E150iGGL2#,GYL25201608-201909

main53301-0E160iGGL2#,GYL2#201510-201608

53301APLUG, HOLE(FOR HOOD)

main90950-06096×2iGYL20201510-201608

53341BINSULATOR, HOOD

main53341-0E110iGGL2#,GYL25201510-201909

53341CCLIP(FOR HOOD INSULATOR)

main90467-A0003×8iGYL20201510-201608

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-0E090iGYL20201510-201608

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90080-46010×10iGYL20201510-201608

53384BCUSHION, HOOD, CENTER

main53384-22070×2iGYL20201510-201608

53801FENDER SUB-ASSY, FRONT RH

main53801-0E020iGGL2#,GYL25201608-201909

main53801-0E150iGGL2#,GYL2#201510-201608

53802FENDER SUB-ASSY, FRONT LH

main53802-0E020iGGL2#,GYL25201608-201909

main53802-0E060iGGL2#,GYL2#201510-201608

53807DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH

main53807-0E080iGYL20201510-201608

main53807-0E100iGGL2#,GYL25201909

53808DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH

main53808-0E080iGYL20201510-201608

main53808-0E100iGGL2#,GYL25201909

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iGYL20201510-201608

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011×3iGYL20201510-201608

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iGYL20201510-201608

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011×3iGYL20201510-201608

53882BSEAL, FRONT FENDER, RH

main53882-0E070iGGL2#,GYL2#201510-201909

53882FSEAL, FRONT FENDER

main53882-33060iGGL2#,GYL2#201510-201909

53883BSEAL, FRONT FENDER, LH

main53883-0E060iGGL2#,GYL2#201510-201909

53883MSEAL, FRONT FENDER

main53882-33060iGGL2#,GYL2#201510-201909

9008011220

main90080-11220

9046707217

main90467-07217

22 parts on this diagram · 2 diagrams in section
