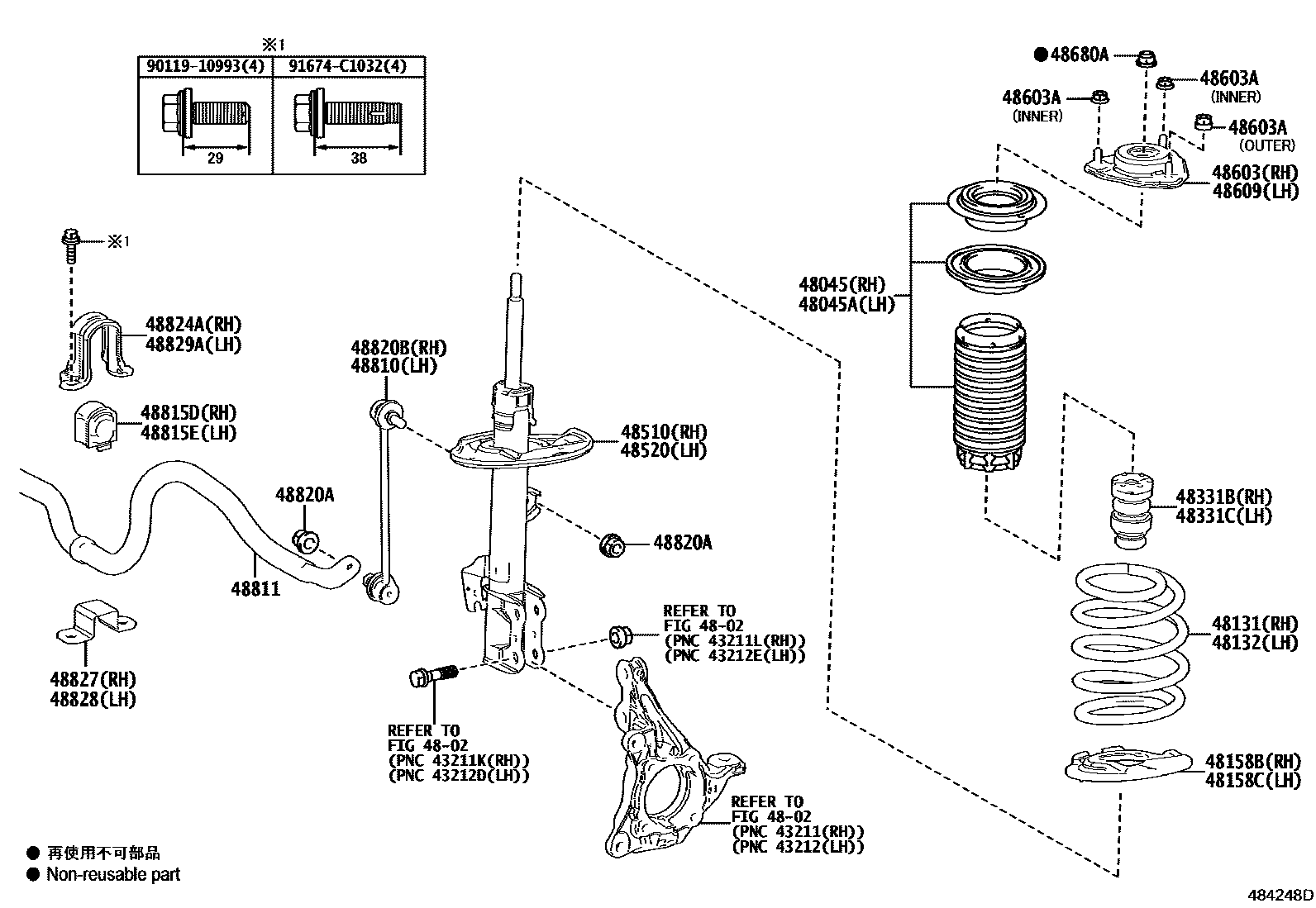

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1F SPORT

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

48045SEAT SUB-ASSY, FRONT SPRING RH, W/INSULATOR

main48045-0E020iGGL2#,GYL25201510-201909

48045ASEAT SUB-ASSY, FRONT SPRING LH, W/INSULATOR

main48045-0E020iGGL2#,GYL25201510-201909

48131SPRING, FRONT COIL, RH

main48131-0E270iGGL2#201510-201909

main48131-0E280iGYL25201510-201909

48132SPRING, FRONT COIL, LH

main48132-0E160iGGL2#201510-201909

main48132-0E170iGYL20201510-201909

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-0E100iGGL2#,GYL25201510-201909

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-0E110iGYL20201510-201909

48331BBUMPER, FRONT SPRING, RH

main48331-0E040iGGL2#,GYL2#201510-201608

main48331-0E070iGGL2#,GYL25201609-201909

48331CBUMPER, FRONT SPRING, LH

main48331-0E040iGGL2#,GYL2#201510-201608

main48331-0E070iGGL2#,GYL25201609-201909

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-8Z262iGYL20201510-201909

MARK 48510-0E260

main48510-8Z425iGGL2#,GYL25201909

MARK 48510-0E380

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-8Z122iGYL20201510-201909

MARK 48520-0E250

main48520-8Z279iGGL2#,GYL25201909

MARK 48520-0E380

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-0E060iGYL20201510-201909

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90080-17215iGGL2#,GYL25201510-201909

OUTER

main90178-A0060iGGL2#,GYL25201510-201909

INNER

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-0E060iGYL20201510-201909

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90080-17217iGYL20201510-201909

48810LINK ASSY, FRONT STABILIZER, LH

main48820-06040iGYL20201510-201909

48811BAR, STABILIZER, FRONT

main48811-0E110iGYL20201510-201909

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-0E040iGYL20201510-201909

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-0E040iGYL20201510-201909

48820ANUT(FOR FRONT STABILIZER LINK)

main90080-17224iGYL20201510-201909

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-06040iGYL20201510-201909

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-0E050iGYL20201510-201909

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48827-0E050iGYL20201510-201909

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48827-0E050iGYL20201510-201909

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-0E050iGYL20201510-201909

9011910993

main90119-10993

91674C1032

main91674-C1032

27 parts on this diagram · 2 diagrams in section
