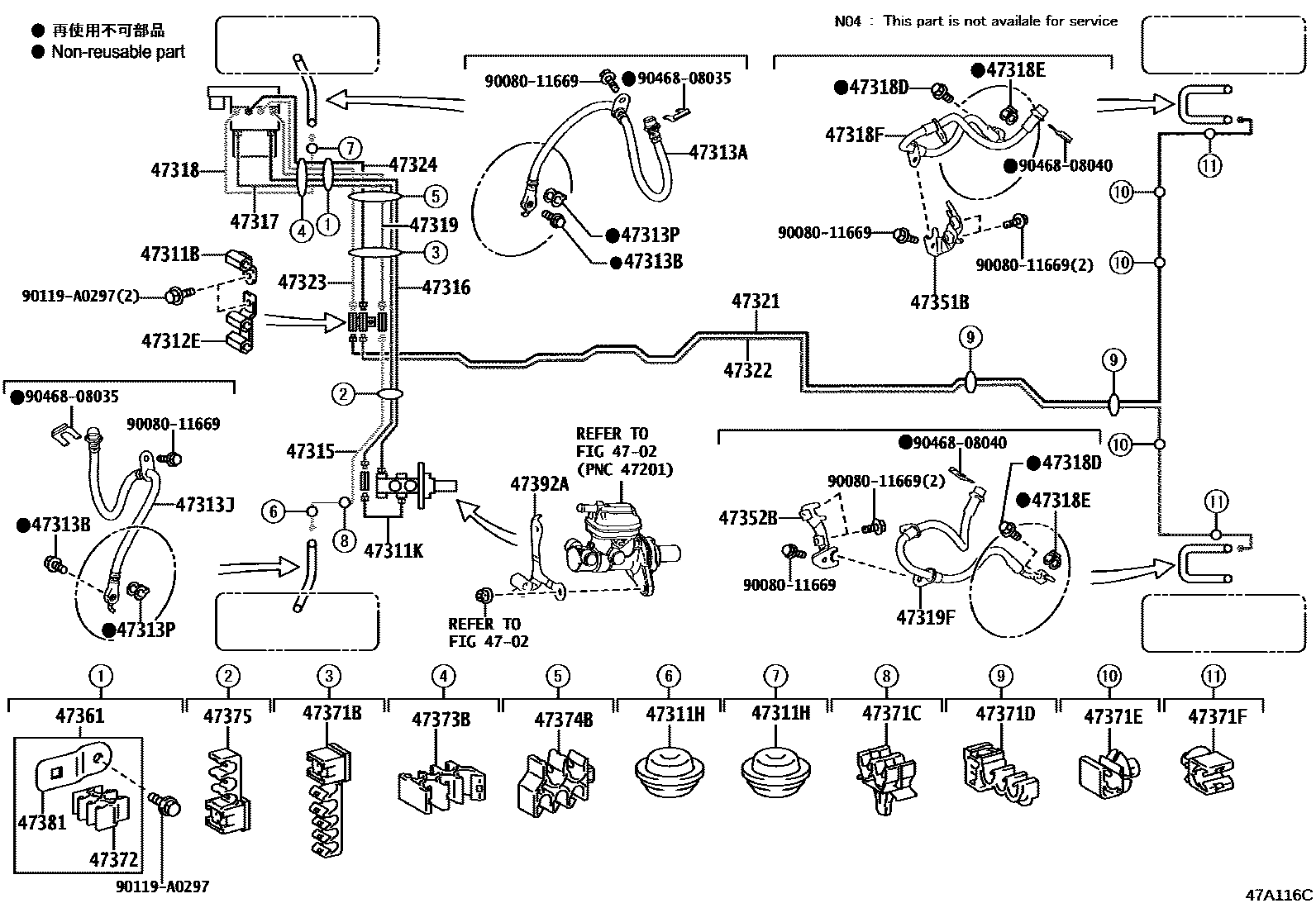

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10272iGGL2#201909

main90412-10293iGYL25201909

47311HGROMMET(FOR BRAKE TUBE)

main90480-25033×2iGYL20201510-201608

47311KTUBE, BRAKE MASTER CYLINDER TO WAY

main47311-48040iGGL2#201510-201909

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10293iGGL2#201909

main90412-10304iGYL20201510-201608

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-A2093iGYL20201510-201608

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iGYL20201510-201608

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-A2094iGYL20201510-201608

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iGYL20201510-201608

47315TUBE, FRONT BRAKE, NO.5

main47315-0E120iGGL2#201510-201609

main47315-0E121iGGL2#201909

main47315-0E130iGYL25201510-201609

main47315-0E131iGYL25201610-201909

47316TUBE, FRONT BRAKE, NO.6

main47316-0E111iGGL2#201909

main47316-0E120iGYL20201510-201608

47317TUBE, FRONT BRAKE, NO.7

main47317-0E111iGGL2#201909

main47317-0E120iGYL20201510-201608

47318TUBE, FRONT BRAKE, NO.8

main47318-0E110iGGL2#201510-201609

main47318-0E111iGGL2#201610-201909

main47318-0E120iGYL20201510-201608

main47318-0E121iGYL25201610-201909

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iGGL2#,GYL25201909

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iGYL20201510-201608

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-A2099iGGL2#,GYL25201909

47319TUBE, FRONT BRAKE, NO.9

main47319-0E130iGGL2#201510-201909

main47319-0E140iGYL20201510-201608

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-A2100iGGL2#,GYL25201909

47321TUBE, REAR BRAKE, NO.1

main47321-0E100iGGL2#201510-201909

main47321-0E110iGYL20201510-201608

47322TUBE, REAR BRAKE, NO.2

main47322-0E100iGGL2#201510-201909

main47322-0E110iGYL25201510-201909

47323TUBE, REAR BRAKE, NO.3

main47323-0E130iGGL2#201510-201909

main47323-0E140iGYL25201510-201909

47324TUBE, REAR BRAKE, NO.4

main47324-0E130iGGL2#201510-201909

main47324-0E140iGYL20201510-201608

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-48020iGYL20201510-201608

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-48020iGYL20201510-201608

47361CLAMP, TUBE

main47371-48140iGGL2#201510-201909

main47371-48150iGYL25201510-201909

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01D37iGYL25201909

main90949-A1019iGGL2#201909

47371CCLAMP, BRAKE TUBE, NO.7

main90949-01C00iGGL2#,GYL25201909

47371DCLAMP, BRAKE TUBE, NO.8

main47371-48170iGYL20201510-201608

main90949-01D05×2iGGL2#201510-201909

47371ECLAMP, BRAKE TUBE, NO.9

main90464-00904iGYL20201510-201608

main90949-01D17×3iGGL2#201909

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01D17×2iGYL25201909

main90949-01E01×2iGGL2#201909

47372CLAMP, BRAKE TUBE, NO.2

main90949-01C51iGYL25201510-201909

main90949-01D53iGGL2#201909

47373BCLAMP, BRAKE TUBE, NO.3

main90464-00904iGYL25201909

main90464-A0008iGGL2#201909

47374BCLAMP, BRAKE TUBE, NO.4

main90464-A0002×2iGYL20201510-201608

main90949-A1015iGGL2#201510-201909

47375CLAMP, BRAKE TUBE, NO.5

main90949-01D21iGYL25201510-201909

main90949-A1018iGGL2#201909

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-48150iGGL2#201909

47392AWAY, BRAKE TUBE, NO.2

main47392-48010iGGL2#201909

9008011669

main90080-11669

90119A0297

main90119-A0297

9046808035

main90468-08035

9046808040

main90468-08040

40 parts on this diagram · 4 diagrams in section
