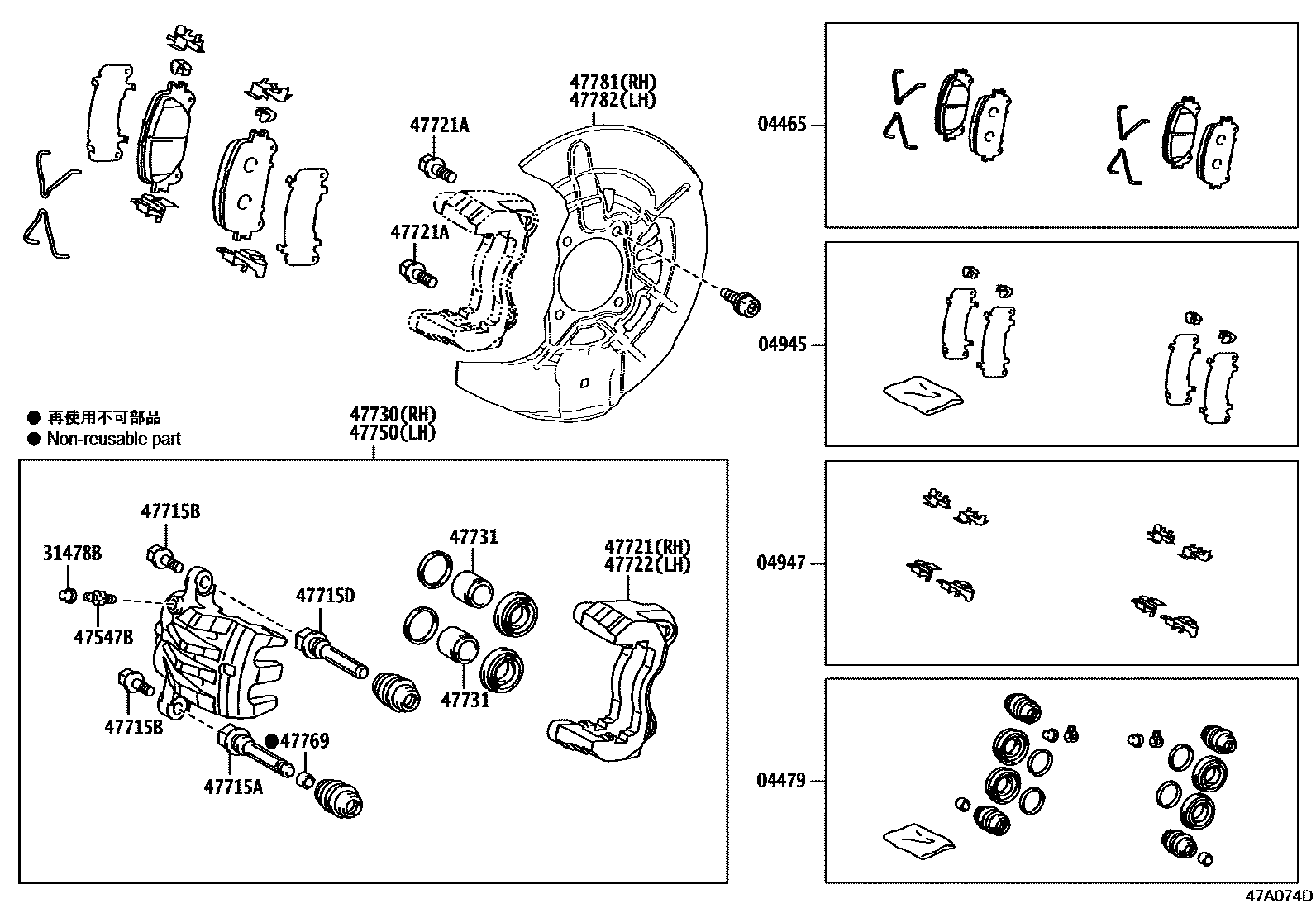

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-02500iGGL2#,GYL25201909

MARK ADVICS VC084H

main04465-0E040iGGL2#,GYL25201510-201909

MARK ADVICS PV565H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0E030iGGL2#,GYL25201510-201909

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-02280iGGL2#,GYL25201909

main04945-0E040iGYL20201510-201909

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0E010iGGL2#,GYL25201510-201909

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iGGL2#,GYL2#201510-201909

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iGGL2#,GYL2#201510-201909

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-33340iGGL2#,GYL2#201510-201909

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90016-AA103iGGL2#,GYL2#201510-201909

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-04080iGGL2#,GYL25201510-201909

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-0E060iGGL2#,GYL2#201510-201909

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-14196iGYL20201510-201909

*14-1.5PX29.5-23

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-0E060iGGL2#,GYL2#201510-201909

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0E060iGGL2#,GYL2#201510-201909

47731PISTON, FRONT DISC BRAKE

main47731-0E030iGGL2#,GYL2#201510-201909

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0E060iGGL2#,GYL2#201510-201909

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iGGL2#,GYL2#201510-201909

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0E050iGYL20201510-201909

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-0E050iGYL20201510-201909

18 parts on this diagram · 1 diagram in section
