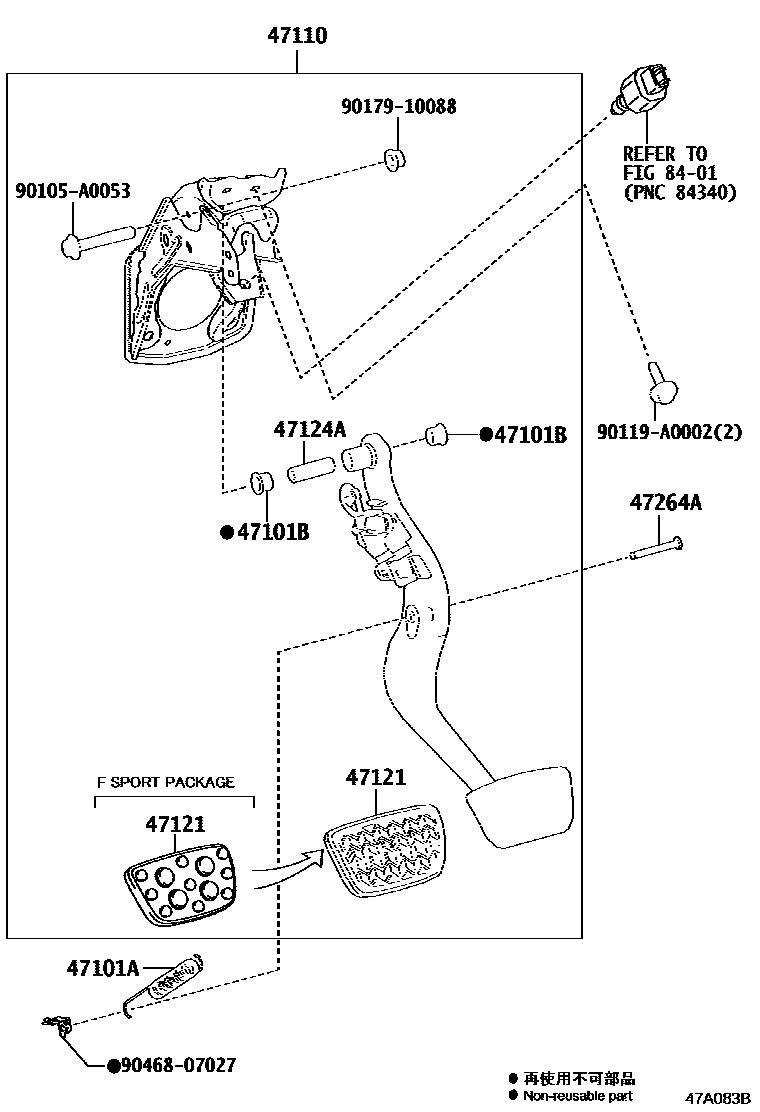

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15004iGGL2#201510-201909

main90507-15008iGYL25201909

47101BBUSH(FOR BRAKE PEDAL)

main90080-38144×2iGGL2#,GYL25201510-201909

47110SUPPORT ASSY, BRAKE PEDAL

main47110-0E120iGYL20201510-201608

main47110-0E110supersedes 47110-0E100iGGL2#201909

"F SPORT"*(F); F SPORT LO

main47110-0E130supersedes 47110-0E120iGYL25201909

"F SPORT"*(F); F SPORT LO

47121PAD, BRAKE PEDAL

main47121-48010iGYL20201510-201608

main47121-48020supersedes 47121-48010iGGL2#,GYL25201909

"F SPORT"*(F); F SPORT LO

47124SHAFT, BRAKE PEDAL

main90105-10563iGYL20201510-201608

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90080-38147iGGL2#201909

main90387-10105iGYL20201510-201608

47264APIN(FOR PUSH ROD)

main90080-24138iGGL2#201510-201909

main90249-08051iGYL25201909

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105A0053

main90105-A0053

90119A0002

main90119-A0002

9017910088

main90179-10088

9046807027

main90468-07027

12 parts on this diagram · 2 diagrams in section
