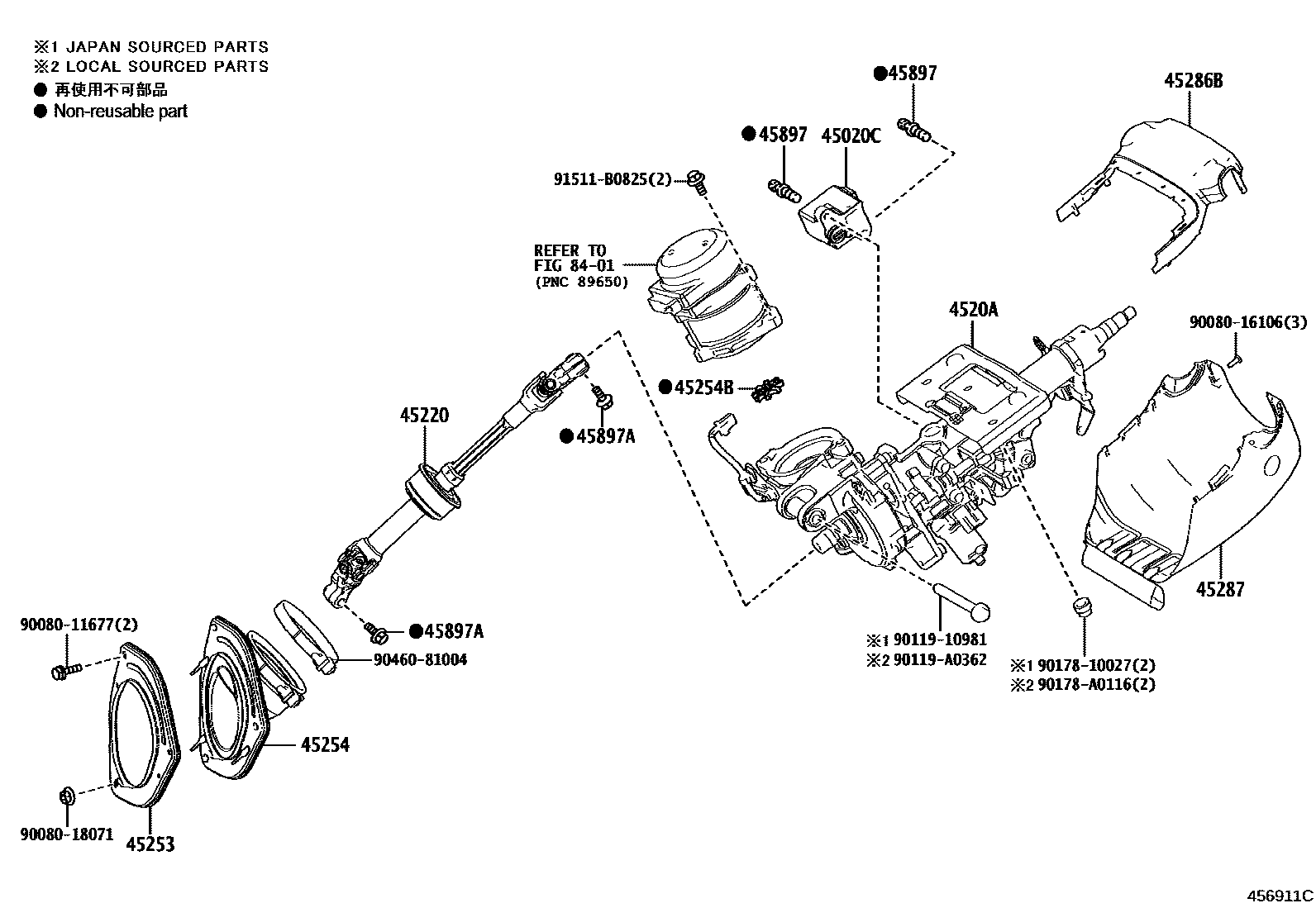

STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-0E060iGGL2#,GYL25201909

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-0E080iGGL2#,GYL25201909-202209

main4520A-48080iGGL2#,GYL25202210

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-0E110iGYL20201510-201608

45253COVER, STEERING COLUMN HOLE

main45253-0E020iGGL2#,GYL25201909

45254SHIELD, STEERING COLUMN HOLE

main45254-0E080iGYL20201510-201608

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iGYL20201510-201608

45286BCOVER, STEERING COLUMN, UPR

main45286-0E070-C0iGYL20201510-201608

BLACK,TRIM1#,2#,4#

main45286-0E070-E0iGYL20201510-201608

NOBLE BROWN,TRIM0#,5#

45287COVER, STEERING COLUMN, LWR

main45287-0E110-C0iGYL20201510-201608

BLACK,TRIM1#,2#,4#

main45287-0E110-E0iGYL20201510-201608

NOBLE BROWN,TRIM0#,5#

main45287-0E111-C0iGGL2#,GYL25202008

BLACK,TRIM0#,1#,2#,3#,4#,5#,7#

main45287-0E111-E0iGGL2#,GYL25201909-202008

NOBLE BROWN,TRIM00,02,04

45897BOLT, STEERING LOCK SET

main45897-12020×2iGYL20201510-201608

45897ABOLT, TILT STEERING PAWL SET

main90119-10985×2iGYL20201510-201608

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008011677

main90080-11677

9008016106

main90080-16106

9008018071

main90080-18071

9011910981

main90119-10981

90119A0362

main90119-A0362

9017810027

main90178-10027

90178A0116

main90178-A0116

9046081004

main90460-81004

91511B0825

main91511-B0825

20 parts on this diagram · 1 diagram in section
