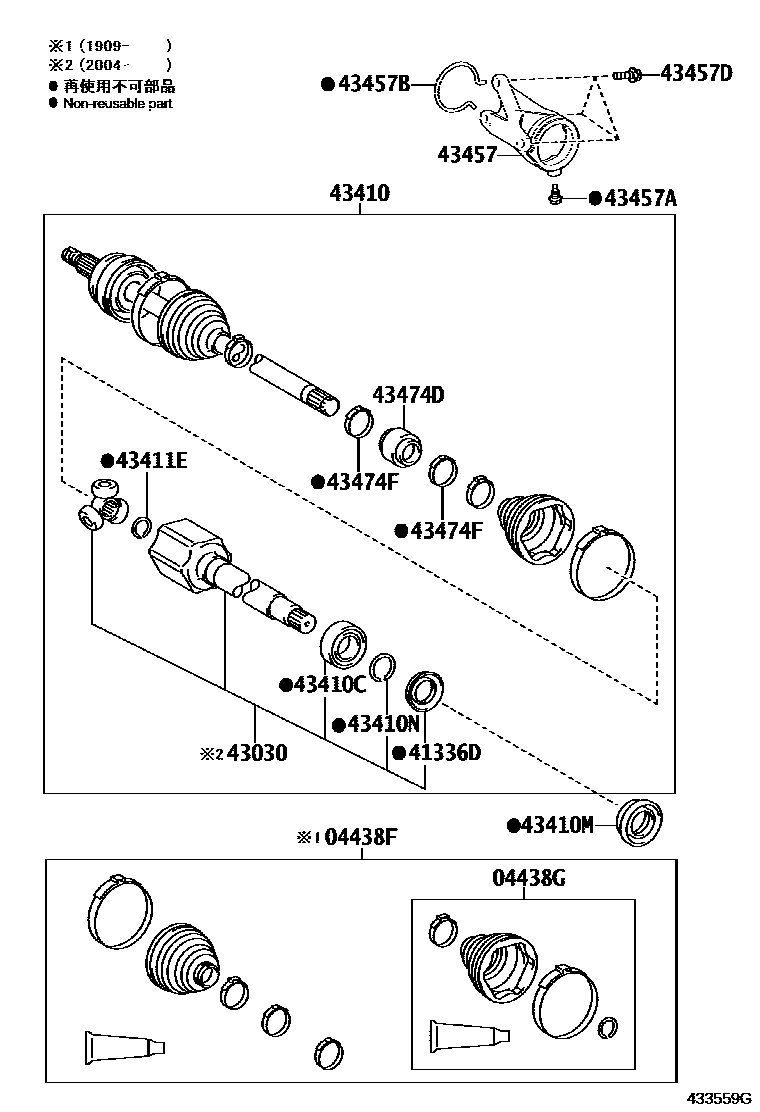

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1RH 0004 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04429-0E021iGGL20,GYL25201909

main04429-0E022iGGL25201909

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04439-0T041iGGL2#,GYL2#201510-201909

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-0E100iGGL20,GYL2#201510-201909

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-0E111iGGL20202004

main43030-0E121iGGL25202004

main43030-0E131iGYL25202004

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-0E160iGGL20201510-201909

main43410-0E170iGGL25201510-201909

main43410-0E180iGYL2#201510-201909

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-A0015iGGL25201510-201909

main90363-A0016iGGL20,GYL25201510-201909

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40038iGGL20201510-201909

main90311-40039iGYL20201510-201909

main90316-34001iGGL25201510-201909

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-0E200iGGL20,GYL2#201510-201909

main43425-0E210iGGL25201510-201909

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-0E190iGGL2#,GYL2#201510-201909

43457BRACKET, DRIVE SHAFT BEARING

main43457-07010iGGL20,GYL25201510-201909

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iGGL20,GYL25201510-201909

*10-1.25PX19.8-8.3

main90901-19060iGGL25201510-201909

*10-1.25PX28.5-14.8

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-73001iGGL25201510-201909

main90521-78002iGGL20,GYL2#201510-201909

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90080-10087iGGL20,GYL2#201510-201909

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-0E090iGGL20,GYL2#201510-201909

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-0E270iGGL20,GYL2#201510-201909

15 parts on this diagram · 4 diagrams in section
