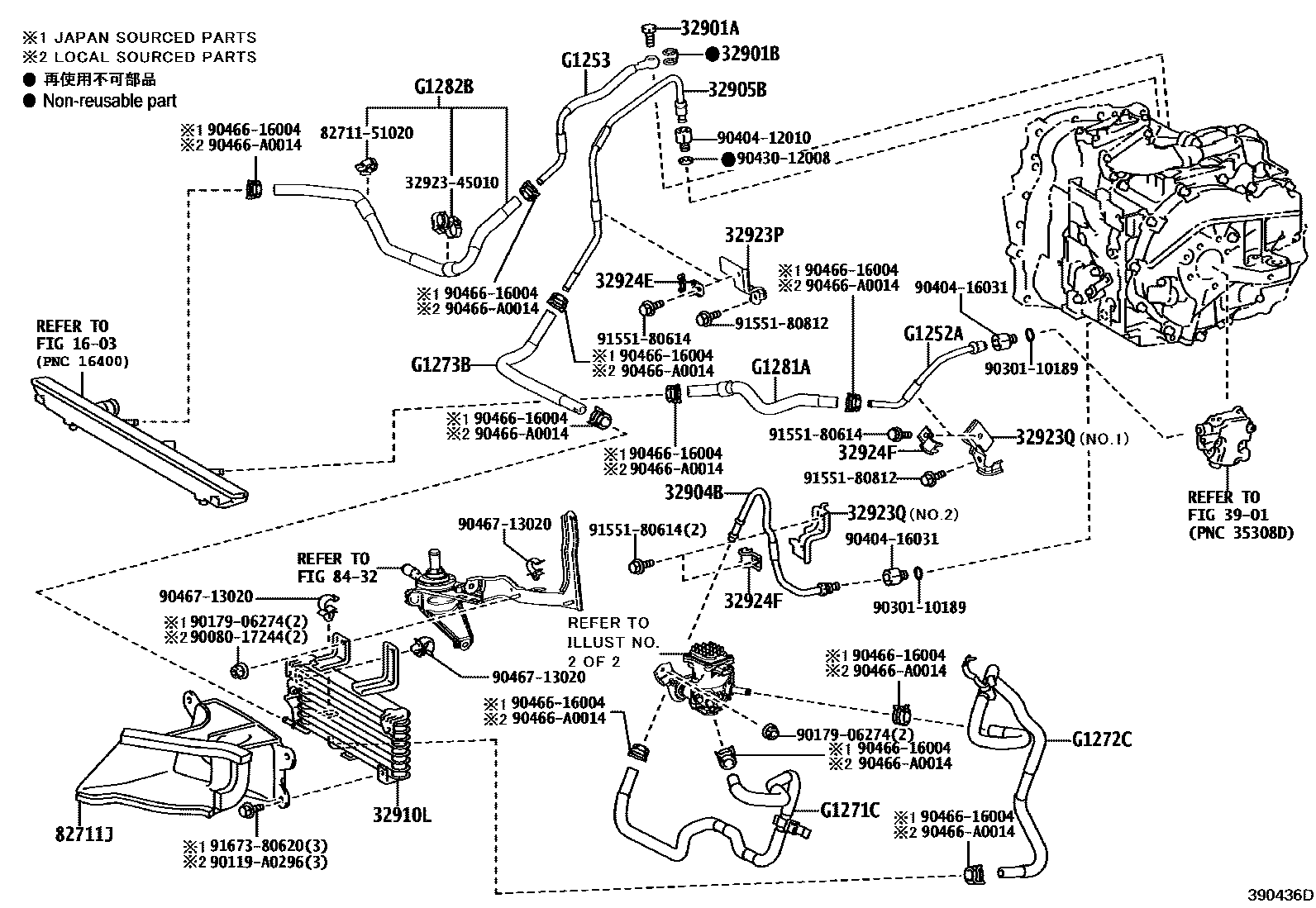

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

0001 1 0002 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iGYL20201510-201608

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iGYL20201510-201608

32904BTUBE SUB-ASSY, OIL COOLER INLET

main32904-48160iGYL20201510-201608

32905BTUBE SUB-ASSY, OIL COOLER OUTLET

main32905-0E080iGYL20201510-201608

32910LCOOLER ASSY, OIL

main32910-0E030iGYL20201510-201608

main32910-0E100iGYL25201909

32923PCLAMP, OIL COOLER TUBE, NO.1

main32923-48080iGYL20201510-201608

32923QCLAMP, OIL COOLER TUBE

main32923-48050iGYL20201510-201608

NO.2

main32923-48090iGYL20201510-201608

NO.1

32924ECLAMP, OIL COOLER TUBE, NO.2

main32929-30170iGYL20201510-201608

32924FCLAMP, OIL COOLER TUBE, NO.2

main32924-48010iGYL20201510-201608

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

82711JDUCT, AIR

main32917-0E030iGYL20201510-201608

main32917-0E090iGYL25201909

8432INVERTER COOLING

→ Go to FIG 84-32

G1252APIPE, MOTOR COOLING, NO.2

mainG125248010iGYL20201510-201608

G1253PIPE, MOTOR COOLING, NO.3

mainG125348010iGYL20201510-201608

G1271CHOSE, MOTOR COOLING, NO.1

mainG12710E020iGYL20201510-201608

mainG12710E040iGYL25201909

G1272CHOSE, MOTOR COOLING, NO.2

mainG12720E030iGYL20201510-201608

mainG12720E040iGYL25201909

G1273BHOSE, MOTOR COOLING, NO.3

mainG12730E020iGYL20201510-201608

mainG12730E040iGYL25201909

G1281AHOSE, MOTOR INLET

mainG128148010iGYL20201510-201608

G1282BHOSE, MOTOR OUTLET

mainG128248010iGYL20201510-201608

3292345010CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-45010

8271151020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-51020

9008017244

main90080-17244

90119A0296

main90119-A0296

9017906274

main90179-06274

9030110189

main90301-10189

9040412010

main90404-12010

9040416031

main90404-16031

9043012008

main90430-12008

9046616004

main90466-16004

90466A0014

main90466-A0014

9046713020

main90467-13020

9155180614

main91551-80614

9155180812

main91551-80812

9167380620

main91673-80620

35 parts on this diagram · 3 diagrams in section
