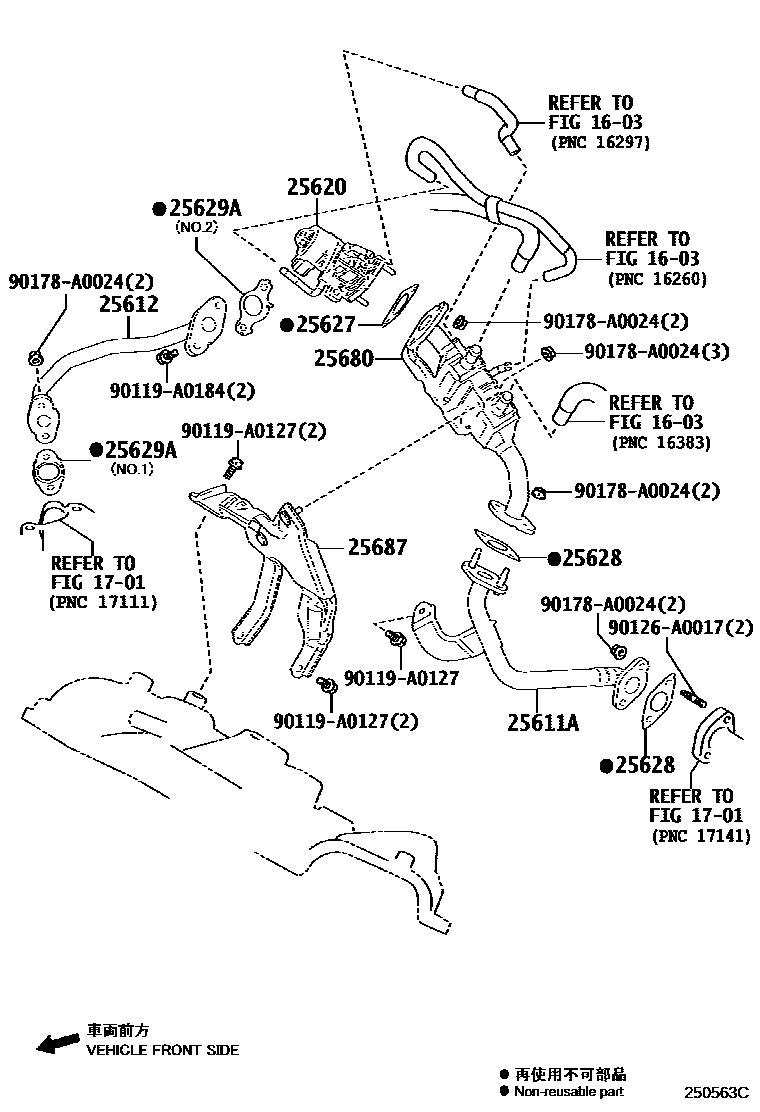

EXHAUST GAS RECIRCULATION SYSTEM

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

25611APIPE, EGR, NO.1

main25611-31060i2GRFXS..GYL25201510-201909

25612PIPE, EGR, NO.2

main25612-31040i2GRFXS..GYL20201510-201608

25620VALVE ASSY, EGR

main25620-31080i2GRFXS..GYL20201510-201608

25627GASKET, EGR VALVE

main25627-31040i2GRFXS..GYL20201510-201608

25628GASKET, EGR INLET

main25628-31030×2i2GRFXS..GYL25201510-201909

25629AGASKET, EGR PIPE, NO.2

main25629-31040i2GRFXS..GYL20201510-201608

NO.1

main25629-36020i2GRFXS..GYL20201510-201608

NO.2

25680COOLER ASSY, EGR

main25680-31050i2GRFXS..GYL20201510-201608

25687BRACKET, EGR COOLER, NO.1

main25687-31020i2GRFXS..GYL20201510-201608

90119A0127

main90119-A0127

90119A0184

main90119-A0184

90126A0017

main90126-A0017

90178A0024

main90178-A0024

14 parts on this diagram · 1 diagram in section
