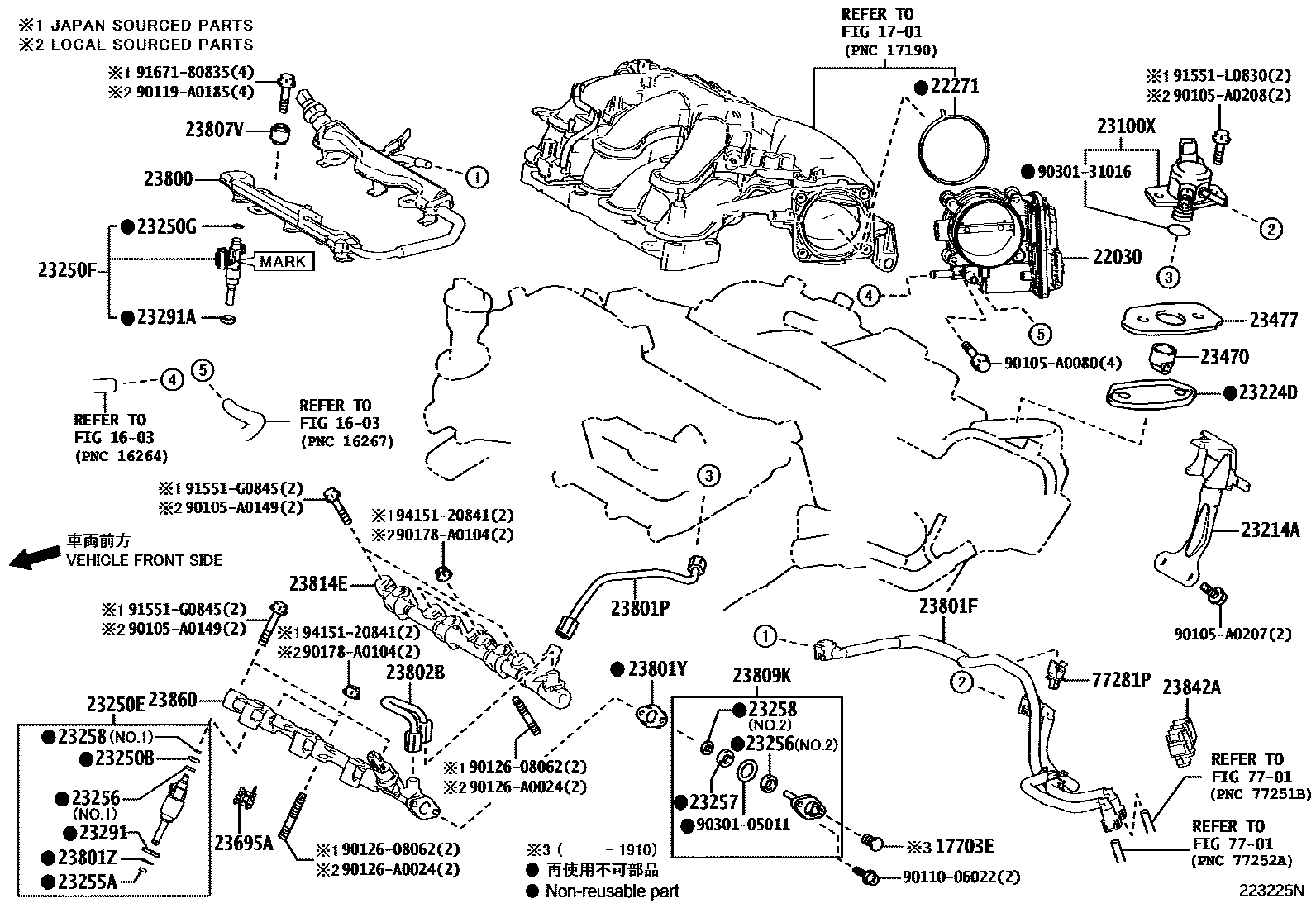

FUEL INJECTION SYSTEM
1603RADIATOR & WATER OUTLET
1701MANIFOLD
17703ECAP SUB-ASSY, DUST
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
(L)
(J)
23214APROTECTOR, FUEL PUMP
23224DGASKET, FUEL PUMP SPACER
(L)
(L)
(J)
(J)
23250BRING, O(FOR FUEL INJECTOR)
NOK
(J),DENSO
(L),DENSO
23250EINJECTOR ASSY, FUEL(FOR DIRECT)
MARK 1,(L)
MARK 2,(L)
MARK 3,(L)
MARK 6,(J)
MARK 7,(J)
MARK 8,(J)
MARK 1
MARK 2
MARK 3
23250FINJECTOR ASSY, FUEL(FOR PORT)
MARK=23250-0P100
MARK=23250-31140
MARK=23250-31230
23250GRING, O, NO.2(FOR FUEL INJECTOR)
(L)
23255ASEAL, FUEL INJECTOR
NOK
NOK
DENSO
23256RING, FUEL INJECTOR BACK-UP, NO.1
NO.1
NO.1,NOK; NO.2
NO.1,DENSO
23257RING, FUEL INJECTOR BACK-UP, NO.2
23258RING, FUEL INJECTOR BACK-UP, NO.3
NO.2
NO.1
NO.1
23291INSULATOR, INJECTOR VIBRATION
(L)
(J)
23291AINSULATOR, INJECTOR VIBRATION
23470LIFTER ASSY, FUEL PUMP
(J)
23477GUIDE, FUEL PUMP LIFTER
23695ACLAMP, NOZZLE HOLDER
23800PIPE ASSY, FUEL DELIVERY W/SENSOR
(L)
(J)
(J)
23801FHOSE, FUEL, NO.1
23801PPIPE SUB-ASSY, FUEL, NO.1
23801YGASKET
23801ZRING, SNAP(FOR FUEL PIPE)
(J)
(L)
23802BPIPE SUB-ASSY, FUEL, NO.2
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23809KPLUG SUB-ASSY, FUEL PIPE
23814EPIPE, FUEL DELIVERY, RH
(L)
(J)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23860PIPE ASSY, FUEL DELIVERY W/SENSOR, LH
(L)
(J)
7701FUEL TANK & TUBE
77281PCLAMP, FUEL HOSE
NO.2
90105A0080
main90105-A0080
90105A0149
main90105-A0149
90105A0207
main90105-A0207
90105A0208
main90105-A0208
9011006022
main90110-06022
90119A0185
main90119-A0185
9012608062
main90126-08062
90126A0024
main90126-A0024
90178A0104
main90178-A0104
9030105011
main90301-05011
9030131016
main90301-31016
91551G0845
main91551-G0845
91551L0830
main91551-L0830
9167180835
main91671-80835
9415120841
main94151-20841
49 parts on this diagram · 2 diagrams in section
