VACUUM PUMP

0001 1ENGINE NO.=AXXXXXX-CXXXXXX 0002 1ENGINE NO.=MXXXXXX

1708VACUUM PIPING

→ Go to FIG 17-08

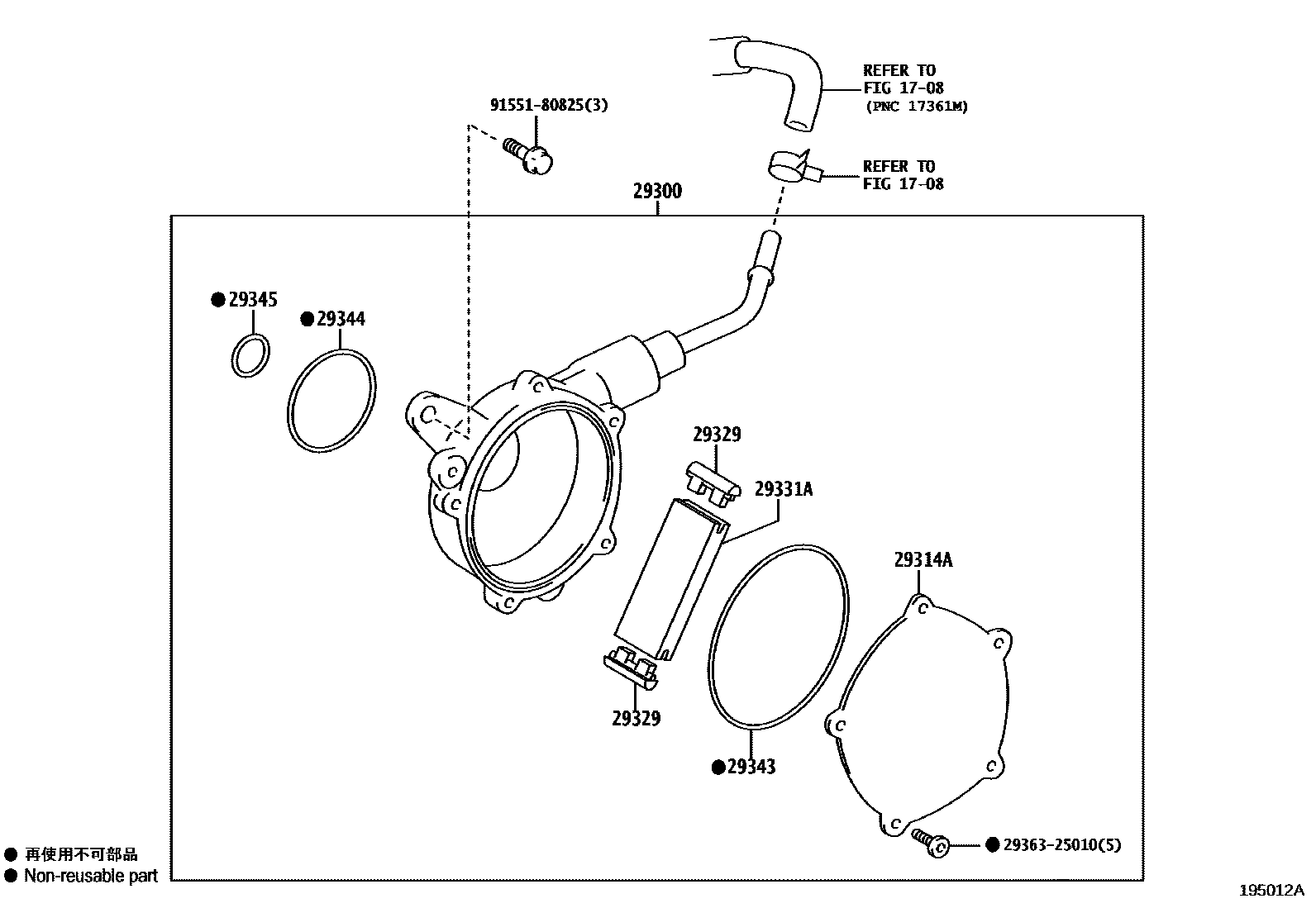

29300PUMP ASSY, VACUUM

main29300-0P010i2GRFKS..GGL2#201510-201706

(L)

main29300-0P011i2GRFKS..GGL2#201909

(L)

main29300-31010i2GRFKS..GGL2#201510-201708

(J)

main29300-31011i2GRFKS..GGL2#201909

(J)

29314ACOVER, END

main29314-31010i2GRFKS..GGL2#201510-201909

29329CAP, VACUUM PUMP VANE

main29329-37010×2i2GRFKS..GGL2#201510-201909

29331AVANE, VACUUM PUMP

main29331-36010i2GRFKS..GGL2#201510-201909

main29331-36011i2GRFKS..GGL2#201909-202210

29343RING, O VACUUM PUMP, NO.1

main29343-36010i2GRFKS..GGL2#201510-201909

29344RING, O VACUUM PUMP, NO.2

main29344-0P010i2GRFKS..GGL2#201909

(L)

main29344-22011i2GRFKS..GGL2#201909

(J)

29345RING, O VACUUM PUMP, NO.3

main29345-0P010i2GRFKS..GGL2#201510-201909

(L)

main29345-22011i2GRFKS..GGL2#201510-201909

(J)

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010

9155180825

main91551-80825

10 parts on this diagram · 2 diagrams in section
