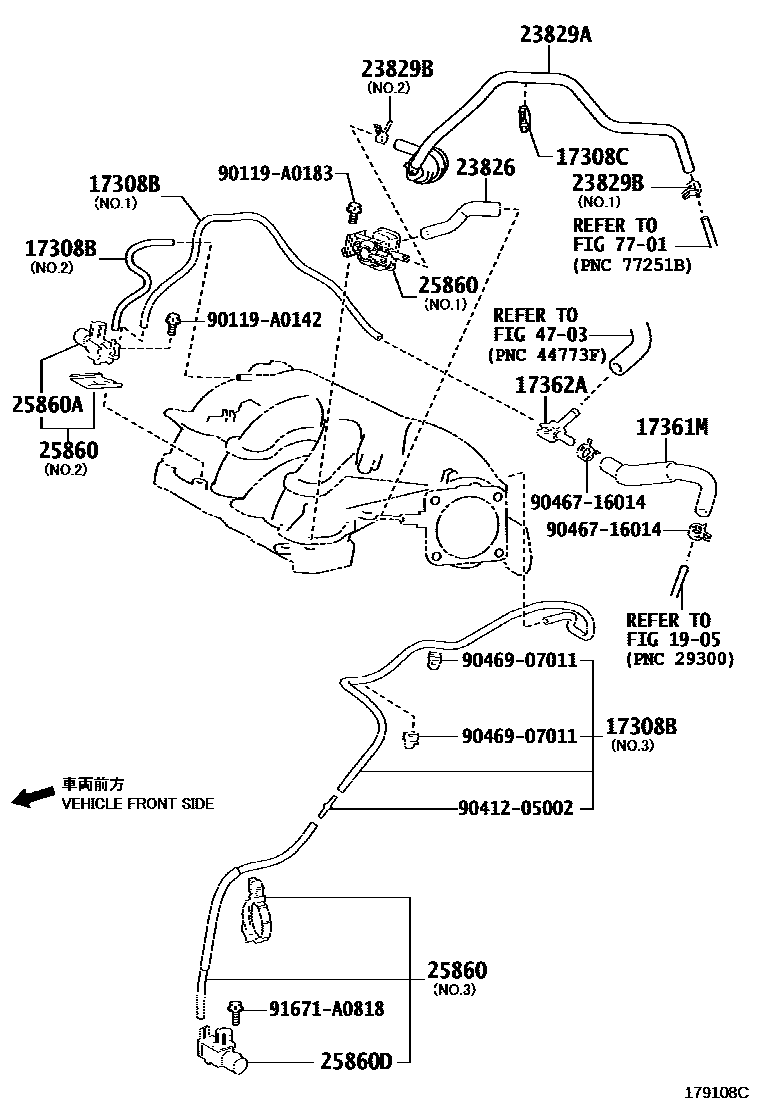

VACUUM PIPING
17308BHOSE SUB-ASSY, VACUUM
NO.3
NO.1
NO.2
17308CCLAMP(FOR VACUUM HOSE)
17361MTUBE, AIR
17362ATUBE, AIR, NO.2
1905VACUUM PUMP
23826HOSE, FUEL VAPOR FEED, NO.1
23829AHOSE, FUEL VAPOR FEED
(L)
(J)
23829BCLIP(FOR FUEL VAPOR FEED HOSE)
NO.2,TYPE A:REF ILL.
NO.2,TYPE B:REF ILL.
NO.2,(L)
NO.1
NO.1
NO.2,(J)
25860VALVE ASSY, VACUUM SWITCHING, NO.1
NO.3
(L),NO.1
NO.1
NO.2
25860AVALVE, VACUUM SWITCHING, NO.1
25860DVALVE ASSY, VACUUM SWITCHING, NO.2
4703BRAKE BOOSTER & VACUUM TUBE
7701FUEL TANK & TUBE
90119A0142
main90119-A0142
90119A0183
main90119-A0183
9041205002
main90412-05002
9046716014
main90467-16014
9046907011
main90469-07011
91671A0818
main91671-A0818
19 parts on this diagram · 2 diagrams in section
