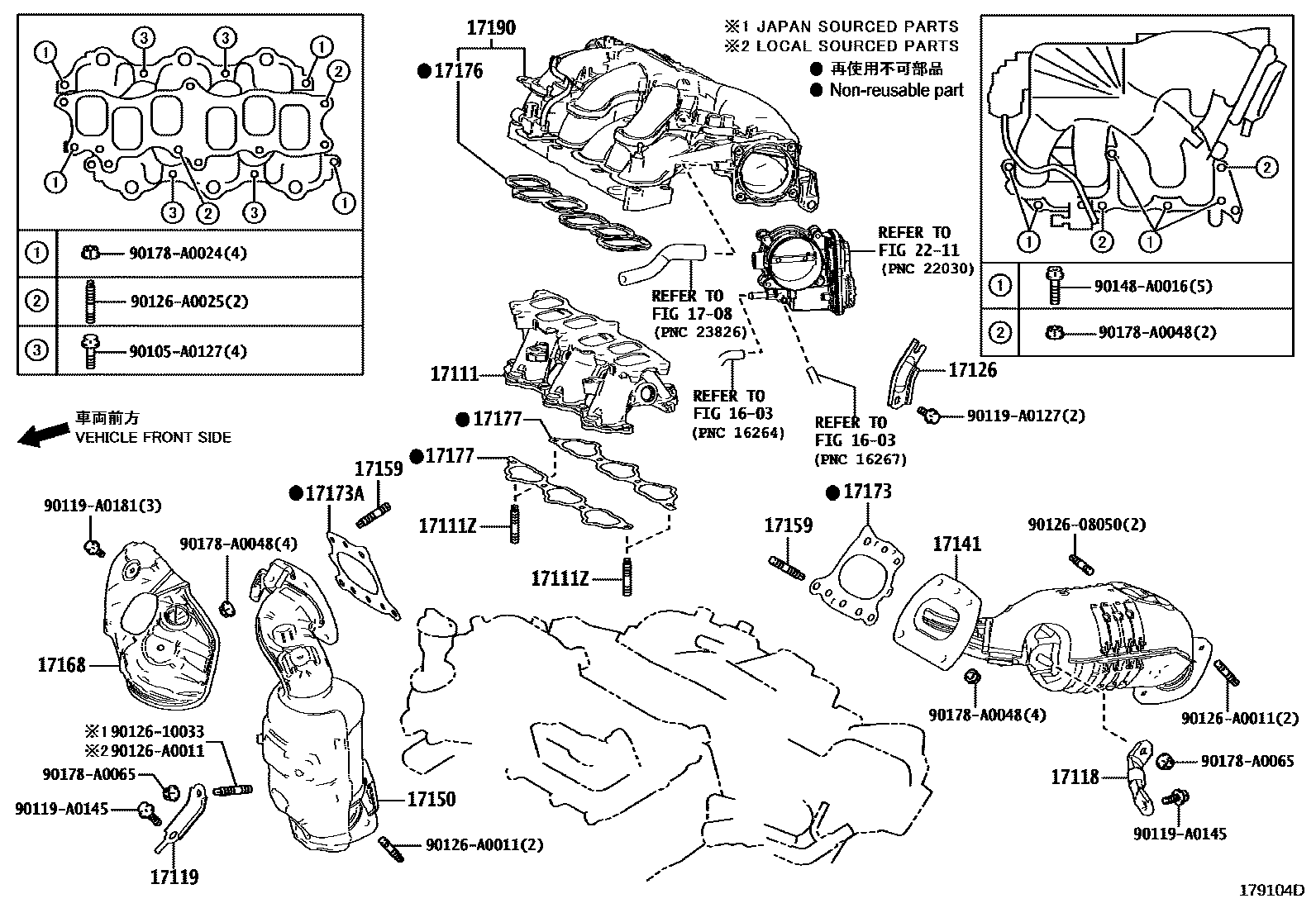

MANIFOLD
1603
1708
17111MANIFOLD, INTAKE
(L)
(J)
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
(J)
(L)
17118STAY, MANIFOLD
17119STAY, MANIFOLD, NO.2
17126STAY, SURGE TANK, NO.2
17141MANIFOLD, EXHAUST
*114=TOYOTA/R0P331/Y
*114=TOYOTA/R31390/Y
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
(J)
(L)
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
(L)
(J)
17190TANK ASSY, INTAKE AIR SURGE
2211
90105A0127
main90105-A0127
90119A0127
main90119-A0127
90119A0145
main90119-A0145
90119A0181
main90119-A0181
9012608050
main90126-08050
9012610033
main90126-10033
90126A0011
main90126-A0011
90126A0025
main90126-A0025
90148A0016
main90148-A0016
90178A0024
main90178-A0024
90178A0048
main90178-A0048
90178A0065
main90178-A0065
29 parts on this diagram · 2 diagrams in section
