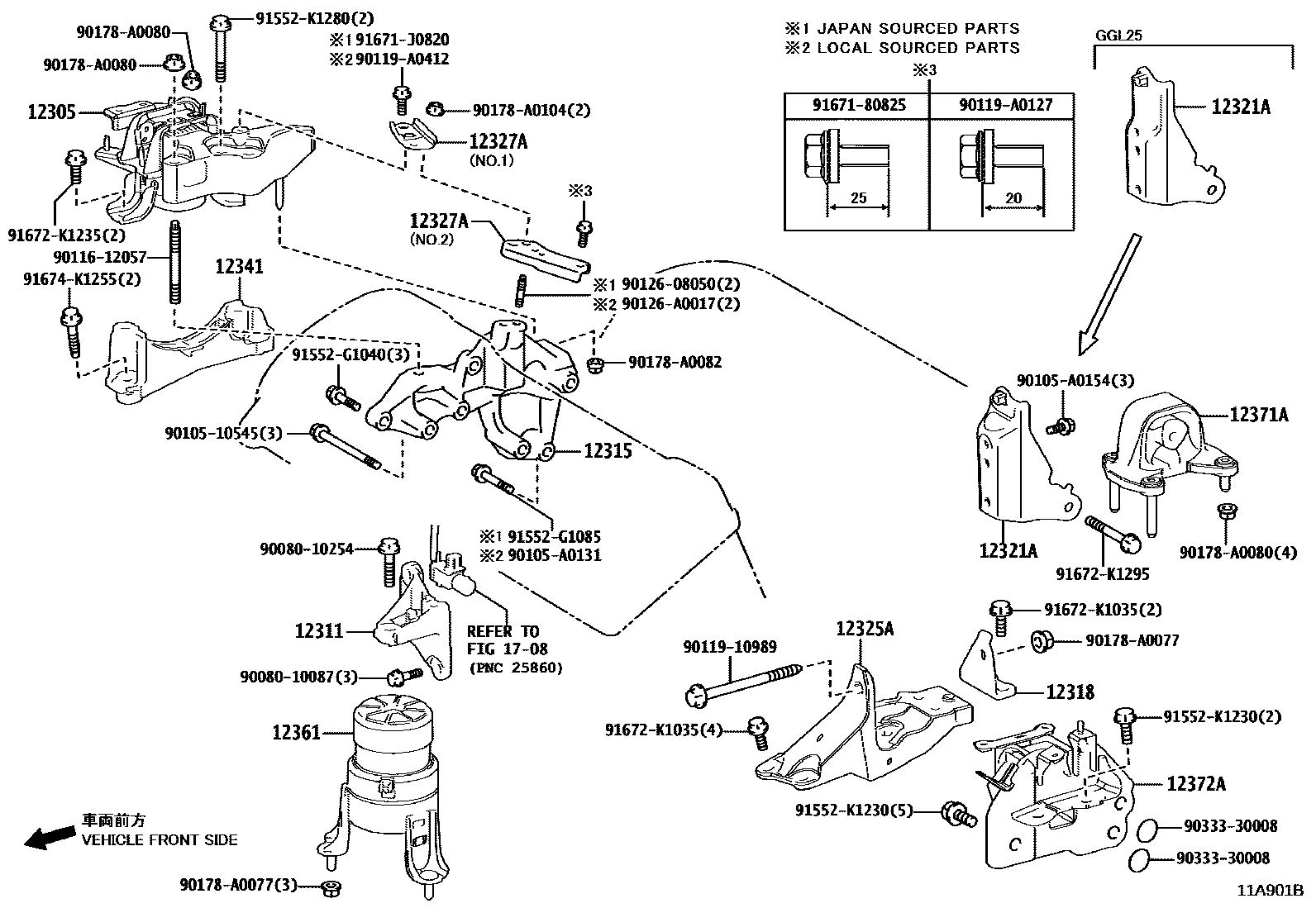

MOUNTING

0001 1 0002 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-0P010i2GRFKS..GGL2#201909

main12305-0P020i2GRFXS..GYL25201510-201909

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-0P130i2GRFKS..GGL2#201510-201909

main12311-0P140i2GRFXS..GYL25201909

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-0P080i2GRFKS..GGL2#201909

(L)

main12315-31160i2GR#..GGL2#,GYL25201510-201909

(J)

12318STAY, ENGINE MOUNTING, LH

main12318-0P010i2GRFKS..GGL2#201510-201909

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-0P080i2GRFKS..GGL20201909

main12321-0P090i2GRFKS..GGL25201510-201909

main12321-0P100i2GRFXS..GYL20201510-201608

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-0P030i2GRFKS..GGL2#201909

12327ASTAY, ENGINE MOUNTING, NO.2 RH

main12327-0P070i2GRFXS..GYL20201510-201608

main12327-0P080i2GRFKS..GGL2#201510-201909

(L),NO.2

main12327-31120i2GR#..GGL2#,GYL25201909

(J),NO.2

12341SPACER, ENGINE MOUNTING

main12341-0P010i2GRFXS..GYL20201510-201608

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-0P190i2GRFKS..GGL2#201510-201909

main12361-0P200i2GRFXS..GYL25201510-201909

main12361-0P240i2GRFXS..GYL25201909

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-0P270i2GRFKS..GGL2#201909

main12371-0P320i2GRFXS..GYL2#201510-201909

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0P060i2GRFKS..GGL2#201510-201909

main12372-0P070i2GRFXS..GYL25201909

1708VACUUM PIPING

→ Go to FIG 17-08

9008010087

main90080-10087

9008010254

main90080-10254

9010510545

main90105-10545

90105A0131

main90105-A0131

90105A0154

main90105-A0154

9011612057

main90116-12057

9011910989

main90119-10989

90119A0127

main90119-A0127

90119A0412

main90119-A0412

9012608050

main90126-08050

90126A0017

main90126-A0017

90178A0077

main90178-A0077

90178A0080

main90178-A0080

90178A0082

main90178-A0082

90178A0104

main90178-A0104

9033330008

main90333-30008

91552G1040

main91552-G1040

91552G1085

main91552-G1085

91552K1230

main91552-K1230

91552K1280

main91552-K1280

9167180825

main91671-80825

91671J0820

main91671-J0820

91672K1035

main91672-K1035

91672K1235

main91672-K1235

91672K1295

main91672-K1295

91674K1255

main91674-K1255

38 parts on this diagram · 2 diagrams in section
