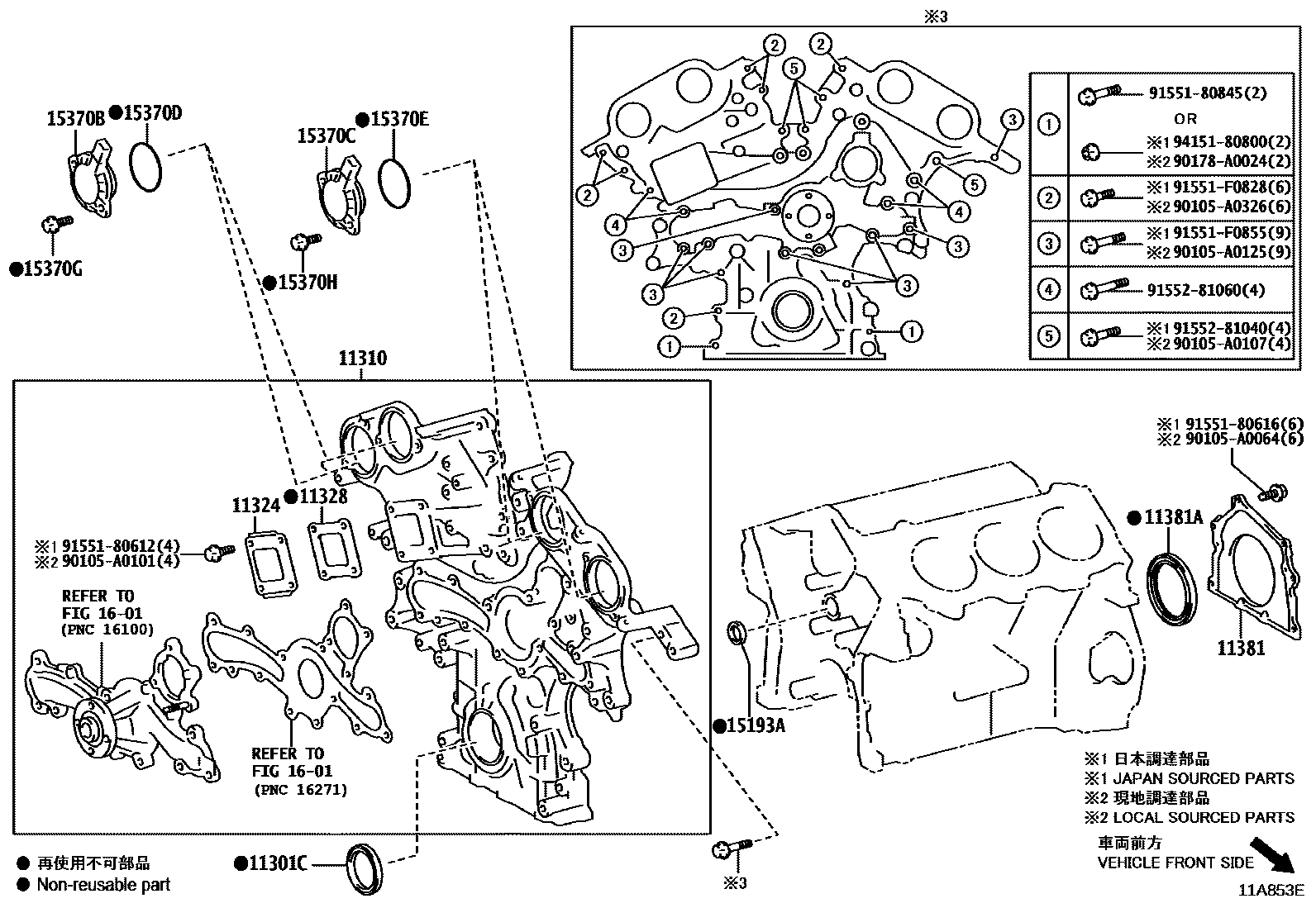

TIMING GEAR COVER & REAR END PLATE
11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
(J)
(L)
11310COVER ASSY, TIMING CHAIN
(L)
(J)
11324PLATE, TIMING CHAIN COVER
(L)
(J)
11328GASKET, TIMING GEAR OR CHAIN COVER
(L)
(J)
11381RETAINER, ENGINE REAR OIL SEAL
(L)
(J)
11381ASEAL, ENGINE REAR OIL
*251 OR *252
*371
15193AGASKET, OIL PUMP
(L)
(J)
15370BSOLENOID ASSY, CAM TIMING OIL CONTROL, RH
(L)
(J)
15370CSOLENOID ASSY, CAM TIMING OIL CONTROL, LH
(L)
(J)
15370DRING, O(FOR CAM TIMING OIL CONTROL SOLENOID RH)
15370ERING, O(FOR CAM TIMING OIL CONTROL SOLENOID LH)
15370GBOLT(FOR CAM TIMING OIL CONTROL SOLENOID RH)
(L)
(J)
15370HBOLT(FOR CAM TIMING OIL CONTROL SOLENOID LH)
(L)
(J)
1601
90105A0064
main90105-A0064
90105A0101
main90105-A0101
90105A0107
main90105-A0107
90105A0125
main90105-A0125
90105A0326
main90105-A0326
90178A0024
main90178-A0024
9155180612
main91551-80612
9155180616
main91551-80616
9155180845
main91551-80845
91551F0828
main91551-F0828
91551F0855
main91551-F0855
9155281040
main91552-81040
9155281060
main91552-81060
9415180800
main94151-80800
28 parts on this diagram · 2 diagrams in section
