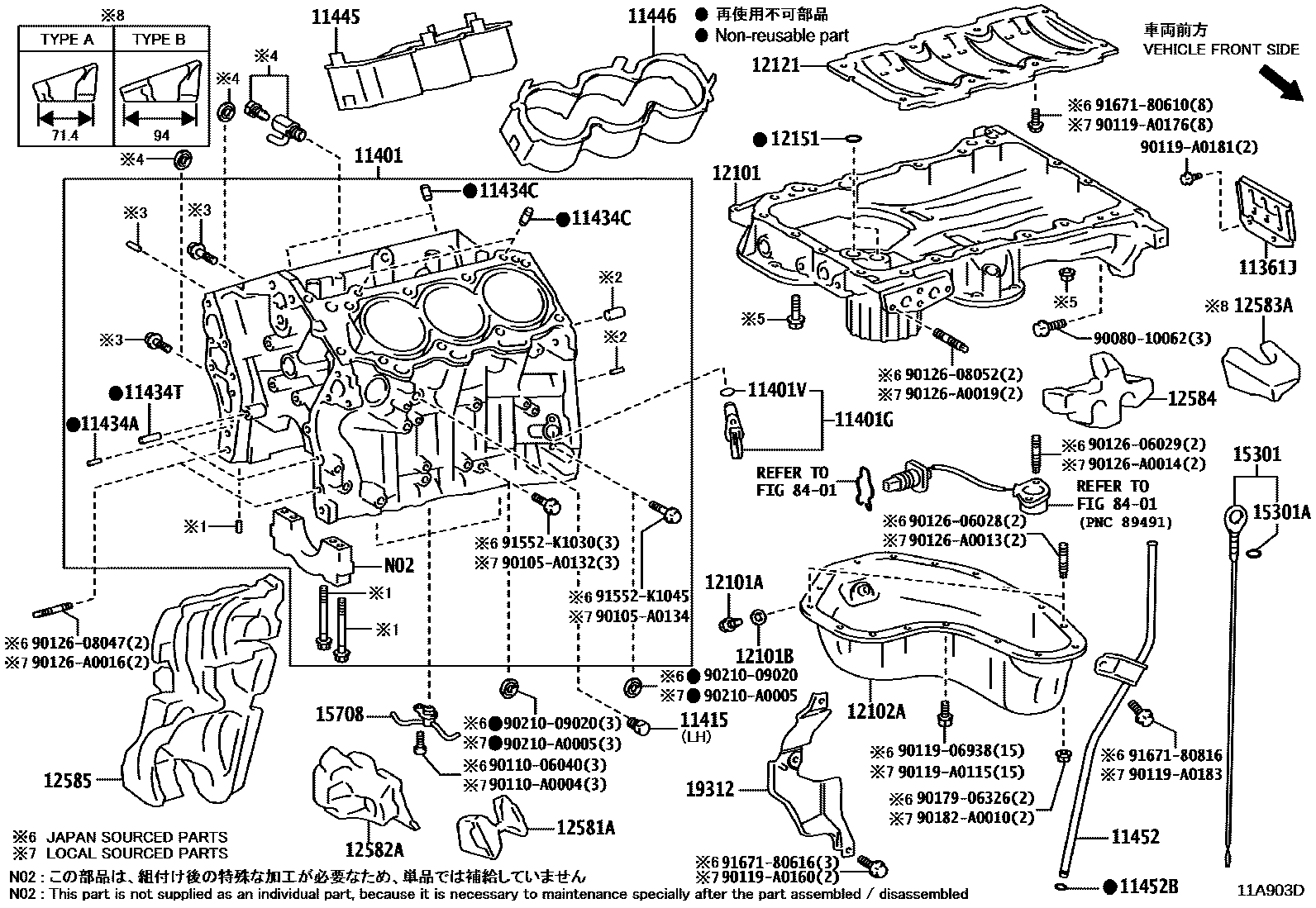

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-0P020i201510-201608

main11361-0P030i201612-201909

11401BLOCK SUB-ASSY, CYLINDER

main11401-09A10i201510-201803

(L)

main11401-09A11i201803-201909

(L)

main11401-80037i201510-201608

(J)

main11401-80062i202112

(J)

11401GSENSOR, CRANK POSITION

main90919-05090i201510-201909

11401VO-RING, CRANK POSITION SENSOR

main90301-14016i201510-201909

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90345-52001i201510-201909

(J),LH

main90345-A0001i201510-201712

(L),LH

main90910-09129i201510-201909

RH

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097×2i201510-201608

L=12,OD=4.0

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120×4i201510-201608

L=18,OD=8

11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)

main90250-10030i201909

(J)

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-0P020i201909

(L)

main11445-31050i201510-201608

(J)

11446SPACER, CYLINDER BLOCK WATER JACKET, LH

main11446-0P020i201510-201909

(L)

main11446-31050i201510-201608

(J)

11452GUIDE, OIL LEVEL GAGE

main11452-0P030i201510-201909

(L)

main11452-31140i201510-201909

(J)

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-A0062i201510-201909

(L)

main96721-19010i201909

(J)

12101PAN SUB-ASSY, OIL

main12100-31050i201510-201608

(J)

main12100-31040supersedes 12100-31051i201909

TOWING PACKAGE-3500LBS,(J)

main12101-0P050supersedes 12111-0P070i201510-201909

TOWING PACKAGE-3500LBS,(L)

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i201510-201608

(J)

main90341-A0007i201909

(L)

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i201909

(J)

main90430-A0006i201909

(L)

12102APAN SUB-ASSY, OIL, NO.2

main12102-0P040i201510-201511

(L)

main12102-0P041i201512-201909

(L)

main12102-31100i201510-201512

(J)

main12102-31101i201601-201909

(J)

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-0P040i201510-201909

(L)

main12121-31120i201510-201608

(J)

12151GASKET, OIL PAN

main12151-0P010×2i201510-201909

(L)

main12151-31010×2i201510-201608

(J)

12581AINSULATOR, CYLINDER BLOCK, NO.1

main12581-0P010i201510-201909

TOWING PACKAGE-3500LBS,(L)

main12581-31010i201510-201909

TOWING PACKAGE-3500LBS,(J)

12582AINSULATOR, CYLINDER BLOCK, NO.2

main12582-0P010i201510-201909

TOWING PACKAGE-3500LBS,(L)

main12582-31010i201510-201909

TOWING PACKAGE-3500LBS,(J)

12583AINSULATOR, CYLINDER BLOCK, NO.3

main12583-0P010i201510-201909

TOWING PACKAGE-3500LBS,(L),TYPE A:REF ILL.

main12583-31010i201510-201906

TOWING PACKAGE-3500LBS,(J),TYPE A:REF ILL.

main12583-31011i201906-201909

TOWING PACKAGE-3500LBS,(J),TYPE B:REF ILL.

12584INSULATOR, CYLINDER BROCK, NO.4

main12584-0P010i201510-201909

TOWING PACKAGE-3500LBS

12585INSULATOR, CYLINDER BROCK, NO.5

main12585-0P010i201909

TOWING PACKAGE-3500LBS,(L)

main12585-31010i201510-201909

TOWING PACKAGE-3500LBS,(J)

main12585-31020i201909

TOWING PACKAGE-3500LBS,(J)

15301GAGE SUB-ASSY, OIL LEVEL

main15301-0P040i201909

(L)

main15301-31070i201909

(J)

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i201510-201608

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-31050×3i201510-201608

19312PROTECTOR, CRANK POSITION SENSOR

main19312-0P010i201510-201909

(L)

main19312-31010i201510-201608

(J)

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008010062

main90080-10062

90105A0132

main90105-A0132

90105A0134

main90105-A0134

9011006040

main90110-06040

90110A0004

main90110-A0004

9011906938

main90119-06938

90119A0115

main90119-A0115

90119A0160

main90119-A0160

90119A0176

main90119-A0176

90119A0181

main90119-A0181

90119A0183

main90119-A0183

9012606028

main90126-06028

9012606029

main90126-06029

9012608047

main90126-08047

9012608052

main90126-08052

90126A0013

main90126-A0013

90126A0014

main90126-A0014

90126A0016

main90126-A0016

90126A0019

main90126-A0019

9017906326

main90179-06326

90182A0010

main90182-A0010

9021009020

main90210-09020

90210A0005

main90210-A0005

91552K1030

main91552-K1030

91552K1045

main91552-K1045

9167180610

main91671-80610

9167180616

main91671-80616

9167180816

main91671-80816
