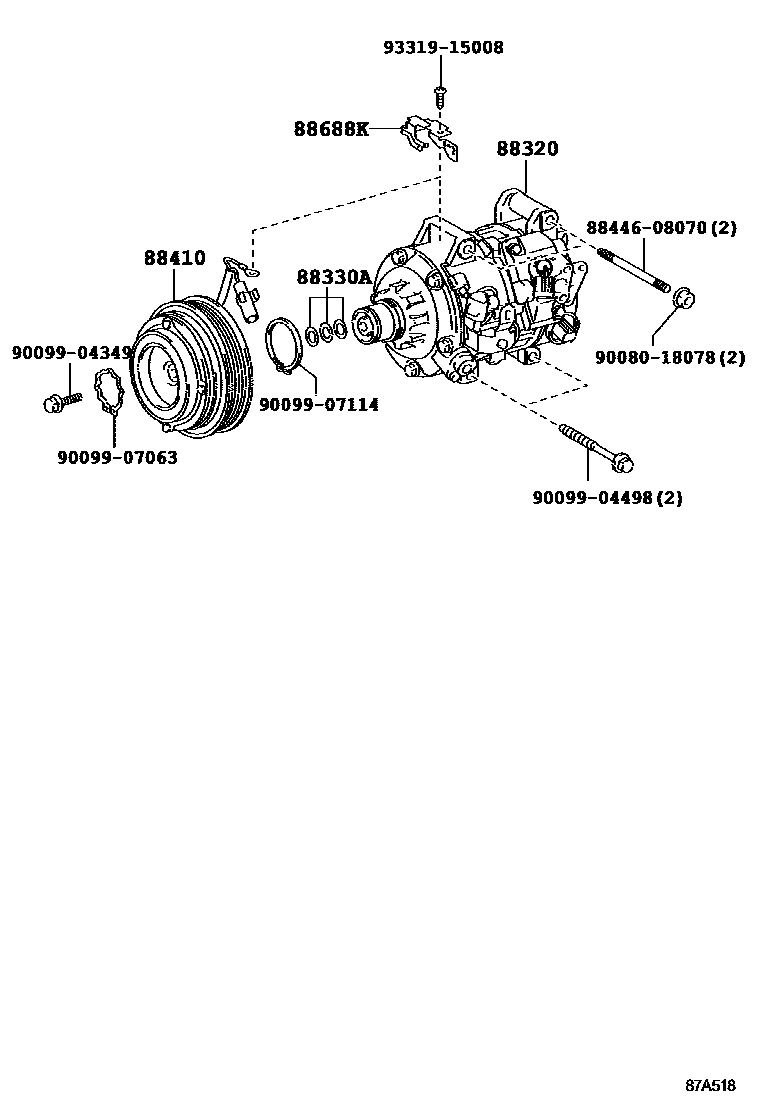

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88320COMPRESSOR ASSY, COOLER

main88320-0E050iGGL1#..NAP201204-201208

main88320-0E090iGGL1#..NAP201208-201210

main88320-48170iGGL1#..NAP200901-201009

main88320-48280iGGL1#..NAP201210

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iGGL1#..NAP200901-201204

88410CLUTCH ASSY, MAGNET

main88410-33180iGGL1#..NAP201208-201404

main88410-33190iGGL1#..NAP201404

main88410-48100iGGL1#..NAP201204-201208

88688KBRACKET, COOLER COMPRESSOR

main88688-33570iGGL1#..NAP201208

main88688-48250iGGL1#..NAP200901-201204

8844608070BOLT, IDLE PULLEY

main88446-08070

9008018078

main90080-18078

9009904349

main90099-04349

9009904498

main90099-04498

9009907063

main90099-07063

9009907114

main90099-07114

9331915008

main93319-15008

11 parts on this diagram · 2 diagrams in section
