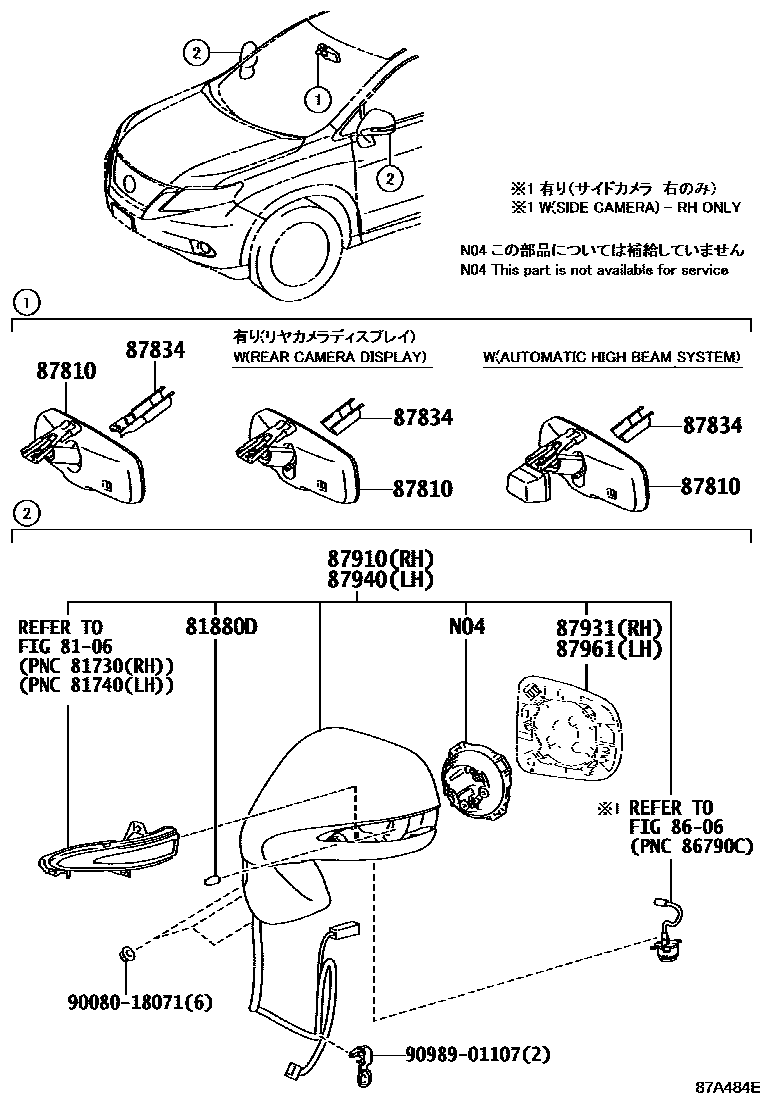

MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

81880DBULB, OUTER MIRROR LAMP ASSY

main99132-12050×2i201204

12V 5W

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-0E040supersedes 87810-0E030i200901-201204

INSIDE REAR VIEW MIRROR-WITH(REAR CAMERA DISPLAY)

main87810-0E050supersedes 87810-0E030i200901-201204

HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM

main87810-0E060supersedes 87810-0E030i200901-201204

HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM&INSIDE REAR VIEW MIRROR-WITH(REAR CAMERA DISPLAY)

main87810-0E100i201008-201204

HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE

main87810-0W170i201008-201204

INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE

main87810-0WB00i201204-201402

INSIDE REAR VIEW MIRROR-*218 & *GDO & BACK MONITOR

main87810-0WB01i201403-201510

INSIDE REAR VIEW MIRROR-*218 & *GDO & BACK MONITOR

main87810-0WC50supersedes 87810-0WC40i201204-201510

INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & *GDO

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87818-04010supersedes 87818-06020i200901-201204

HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM; HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM&INSIDE REAR VIEW MIRROR-WITH(REAR CAMERA DISPLAY); INSIDE REAR VIEW MIRROR-WITH(REAR CAMERA DISPLAY)

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-0E021-A0supersedes 87910-0E101-A0i200901-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,WHITE PEARL CS.,077

main87910-0E021-B0supersedes 87910-0E101-B0i200901-201109

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,DK.GRAY MC.,1G0

main87910-0E021-B2supersedes 87910-0E101-B2i200901-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,SILVER M.M.,1G1

main87910-0E021-B3supersedes 87910-0E101-B3i201109-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,MERCURY GRAY MC.,1H9

main87910-0E021-C0supersedes 87910-0E101-C0i200901-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,BLACK,212

main87910-0E021-C1supersedes 87910-0E101-C1i201008-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,STARLIGHT BLACK GF.,217

main87910-0E021-D0supersedes 87910-0E101-D0i200901-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,RED MC.CS.,3R1

main87910-0E021-E0supersedes 87910-0E101-E0i200901-201008

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,BEIGE ME.,4T1

main87910-0E021-E1supersedes 87910-0E101-E1i200901-201008

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,SABLE M.M.,4T5

main87910-0E021-E2supersedes 87910-0E101-E2i201008-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,SLEEK ECRU ME.,4U7

main87910-0E021-J0supersedes 87910-0E101-J0i200901-201008

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,DK.BLUE MC. CC.,8U0

main87910-0E021-J1supersedes 87910-0E101-J1i200901-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,SILVERY BLUE ME.,8U9

main87910-0E041-A0supersedes 87910-0E101-A0i200901-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & WITH(SIDE CAMERA),WHITE PEARL CS.,077

main87910-0E041-B0supersedes 87910-0E101-B0i200901-201109

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & WITH(SIDE CAMERA),DK.GRAY MC.,1G0

main87910-0E041-B2supersedes 87910-0E101-B2i200901-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & WITH(SIDE CAMERA),SILVER M.M.,1G1

main87910-0E041-B3supersedes 87910-0E101-B3i201109-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & WITH(SIDE CAMERA),MERCURY GRAY MC.,1H9

main87910-0E041-C0supersedes 87910-0E101-C0i200901-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & WITH(SIDE CAMERA),BLACK,212

main87910-0E041-C1supersedes 87910-0E101-C1i201008-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & WITH(SIDE CAMERA),STARLIGHT BLACKGF.,217

main87910-0E041-D0supersedes 87910-0E101-D0i200901-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & WITH(SIDE CAMERA),RED MC.CS.,3R1

main87910-0E041-E0supersedes 87910-0E101-E0i200901-201008

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & WITH(SIDE CAMERA),BEIGE ME.,4T1

main87910-0E041-E1supersedes 87910-0E101-E1i200901-201008

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & WITH(SIDE CAMERA),SABLE M.M.,4T5

main87910-0E041-E2supersedes 87910-0E101-E2i201008-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & WITH(SIDE CAMERA),SLEEK ECRU ME.,4U7

main87910-0E041-J0supersedes 87910-0E101-J0i200901-201008

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & WITH(SIDE CAMERA),DK.BLUE MC. CC.,8U0

main87910-0E041-J1supersedes 87910-0E101-J1i200901-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & WITH(SIDE CAMERA),SILVERY BLUE ME.,8U9

main87910-0E110-A0supersedes 87910-0E102-A0i201204-201510

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,WHITE PEARL CS.,077

main87910-0E110-A1supersedes 87910-0E102-A1i201309-201510

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,WHITE NOVA GF.,083

main87910-0E110-B1supersedes 87910-0E102-B3i201204-201510

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,MERCURY GRAY MC.,1H9

main87910-0E110-B2supersedes 87910-0E102-B4i201204-201510

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,PLATINUM SILVER ME.,1J4

main87910-0E110-C0supersedes 87910-0E102-C0i201204-201510

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,BLACK,212

main87910-0E110-C1supersedes 87910-0E102-C1i201204-201510

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,STARLIGHT BLACK GF.,217

main87910-0E110-D0supersedes 87910-0E102-D1i201204-201510

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,GARNET RED MC.,3S0

main87910-0E110-E0supersedes 87910-0E102-E2i201204-201510

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,SLEEK ECRU ME.,4U7

main87910-0E110-E1supersedes 87910-0E102-E3i201204-201403

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,FIRE AGATE M.M.,4V3

main87910-0E110-J0supersedes 87910-0E102-J2i201204-201510

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,LAPIS LAZULI MC.,8V3

main87910-0E120-A0supersedes 87910-0E102-A0i201204-201510

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,WHITE PEARL CS.,077

main87910-0E120-A1supersedes 87910-0E102-A1i201309-201510

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,WHITE NOVA GF.,083

main87910-0E120-B0supersedes 87910-0E102-B3i201204-201510

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,MERCURY GRAY MC.,1H9

main87910-0E120-B1supersedes 87910-0E102-B4i201204-201510

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,PLATINUM SILVER ME.,1J4

main87910-0E120-C0supersedes 87910-0E102-C0i201204-201510

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,BLACK,212

main87910-0E120-C1supersedes 87910-0E102-C1i201204-201510

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,STARLIGHT BLACK GF.,217

main87910-0E120-D0supersedes 87910-0E102-D1i201204-201510

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,GARNET RED MC.,3S0

main87910-0E120-E0supersedes 87910-0E102-E2i201204-201510

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,SLEEK ECRU ME.,4U7

main87910-0E120-E1supersedes 87910-0E102-E3i201204-201403

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,FIRE AGATE M.M.,4V3

main87910-0E120-J0supersedes 87910-0E102-J2i201204-201510

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,LAPIS LAZULI MC.,8V3

87931OUTER MIRROR, RH

main87931-48420supersedes 87931-0E100i200901-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & WITH(SIDE CAMERA)

main87931-48421supersedes 87931-0E100i201204

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY

main87931-48590supersedes 87931-0E100i201204

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-0E021-A0supersedes 87940-0E091-A0i200901-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,WHITE PEARL CS.,077

main87940-0E021-B0supersedes 87940-0E091-B0i200901-201109

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,DK.GRAY MC.,1G0

main87940-0E021-B2supersedes 87940-0E091-B2i200901-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,SILVER M.M.,1G1

main87940-0E021-B3supersedes 87940-0E091-B3i201109-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,MERCURY GRAY MC.,1H9

main87940-0E021-C0supersedes 87940-0E091-C0i200901-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,BLACK,212

main87940-0E021-C1supersedes 87940-0E091-C1i201008-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,STARLIGHT BLACK GF.,217

main87940-0E021-D0supersedes 87940-0E091-D0i200901-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,RED MC.CS.,3R1

main87940-0E021-E0supersedes 87940-0E091-E0i200901-201008

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,BEIGE ME.,4T1

main87940-0E021-E1supersedes 87940-0E091-E1i200901-201008

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,SABLE M.M.,4T5

main87940-0E021-E2supersedes 87940-0E091-E2i201008-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,SLEEK ECRU ME.,4U7

main87940-0E021-J0supersedes 87940-0E091-J0i200901-201008

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,DK.BLUE MC. CC.,8U0

main87940-0E021-J1supersedes 87940-0E091-J1i200901-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,SILVERY BLUE ME.,8U9

main87940-0E031-A0supersedes 87940-0E091-A0i200901-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & WITH(SIDE CAMERA),WHITE PEARL CS.,077

main87940-0E031-B0supersedes 87940-0E091-B0i200901-201109

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & WITH(SIDE CAMERA),DK.GRAY MC.,1G0

main87940-0E031-B2supersedes 87940-0E091-B2i200901-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & WITH(SIDE CAMERA),SILVER M.M.,1G1

main87940-0E031-B3supersedes 87940-0E091-B3i201109-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & WITH(SIDE CAMERA),MERCURY GRAY MC.,1H9

main87940-0E031-C0supersedes 87940-0E091-C0i200901-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & WITH(SIDE CAMERA),BLACK,212

main87940-0E031-C1supersedes 87940-0E091-C1i201008-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & WITH(SIDE CAMERA),STARLIGHT BLACKGF.,217

main87940-0E031-D0supersedes 87940-0E091-D0i200901-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & WITH(SIDE CAMERA),RED MC.CS.,3R1

main87940-0E031-E0supersedes 87940-0E091-E0i200901-201008

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & WITH(SIDE CAMERA),BEIGE ME.,4T1

main87940-0E031-E1supersedes 87940-0E091-E1i200901-201008

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & WITH(SIDE CAMERA),SABLE M.M.,4T5

main87940-0E031-E2supersedes 87940-0E091-E2i201008-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & WITH(SIDE CAMERA),SLEEK ECRU ME.,4U7

main87940-0E031-J0supersedes 87940-0E091-J0i200901-201008

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & WITH(SIDE CAMERA),DK.BLUE MC. CC.,8U0

main87940-0E031-J1supersedes 87940-0E091-J1i200901-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & WITH(SIDE CAMERA),SILVERY BLUE ME.,8U9

main87940-0E100-A0supersedes 87940-0E092-A0i201204-201510

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,WHITE PEARL CS.,077

main87940-0E100-A1supersedes 87940-0E092-A1i201309-201510

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,WHITE NOVA GF.,083

main87940-0E100-B1supersedes 87940-0E092-B3i201204-201510

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,MERCURY GRAY MC.,1H9

main87940-0E100-B2supersedes 87940-0E092-B4i201204-201510

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,PLATINUM SILVER ME.,1J4

main87940-0E100-C0supersedes 87940-0E092-C0i201207-201510

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,BLACK,212 ,2MH

main87940-0E100-C1supersedes 87940-0E092-C1i201204-201510

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,STARLIGHT BLACK GF.,217

main87940-0E100-D0supersedes 87940-0E092-D1i201204-201510

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,GARNET RED MC.,3S0

main87940-0E100-E0supersedes 87940-0E092-E2i201204-201510

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,SLEEK ECRU ME.,4U7

main87940-0E100-E1supersedes 87940-0E092-E3i201204-201403

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,FIRE AGATE M.M.,4V3

main87940-0E100-J0supersedes 87940-0E092-J2i201204-201510

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,LAPIS LAZULI MC.,8V3

main87940-0E110-A0supersedes 87940-0E092-A0i201204-201510

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,WHITE PEARL CS.,077

main87940-0E110-A1supersedes 87940-0E092-A1i201309-201510

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,WHITE NOVA GF.,083

main87940-0E110-B0supersedes 87940-0E092-B3i201204-201510

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,MERCURY GRAY MC.,1H9

main87940-0E110-B1supersedes 87940-0E092-B4i201204-201510

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,PLATINUM SILVER ME.,1J4

main87940-0E110-C0supersedes 87940-0E092-C0i201204-201510

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,BLACK,212

main87940-0E110-C1supersedes 87940-0E092-C1i201204-201510

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,STARLIGHT BLACK GF.,217

main87940-0E110-D0supersedes 87940-0E092-D1i201204-201510

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,GARNET RED MC.,3S0

main87940-0E110-E0supersedes 87940-0E092-E2i201204-201510

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,SLEEK ECRU ME.,4U7

main87940-0E110-E1supersedes 87940-0E092-E3i201204-201403

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,FIRE AGATE M.M.,4V3

main87940-0E110-J0supersedes 87940-0E092-J2i201204-201510

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,LAPIS LAZULI MC.,8V3

87961MIRROR OUTER, LH

main87961-48400supersedes 87961-0E090i200901-201204

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & WITH(SIDE CAMERA)

main87961-48401supersedes 87961-48520i201204

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY

main87961-48610supersedes 87961-48520i201204

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION

9008018071

main90080-18071

9098901107

main90989-01107

11 parts on this diagram · 2 diagrams in section
