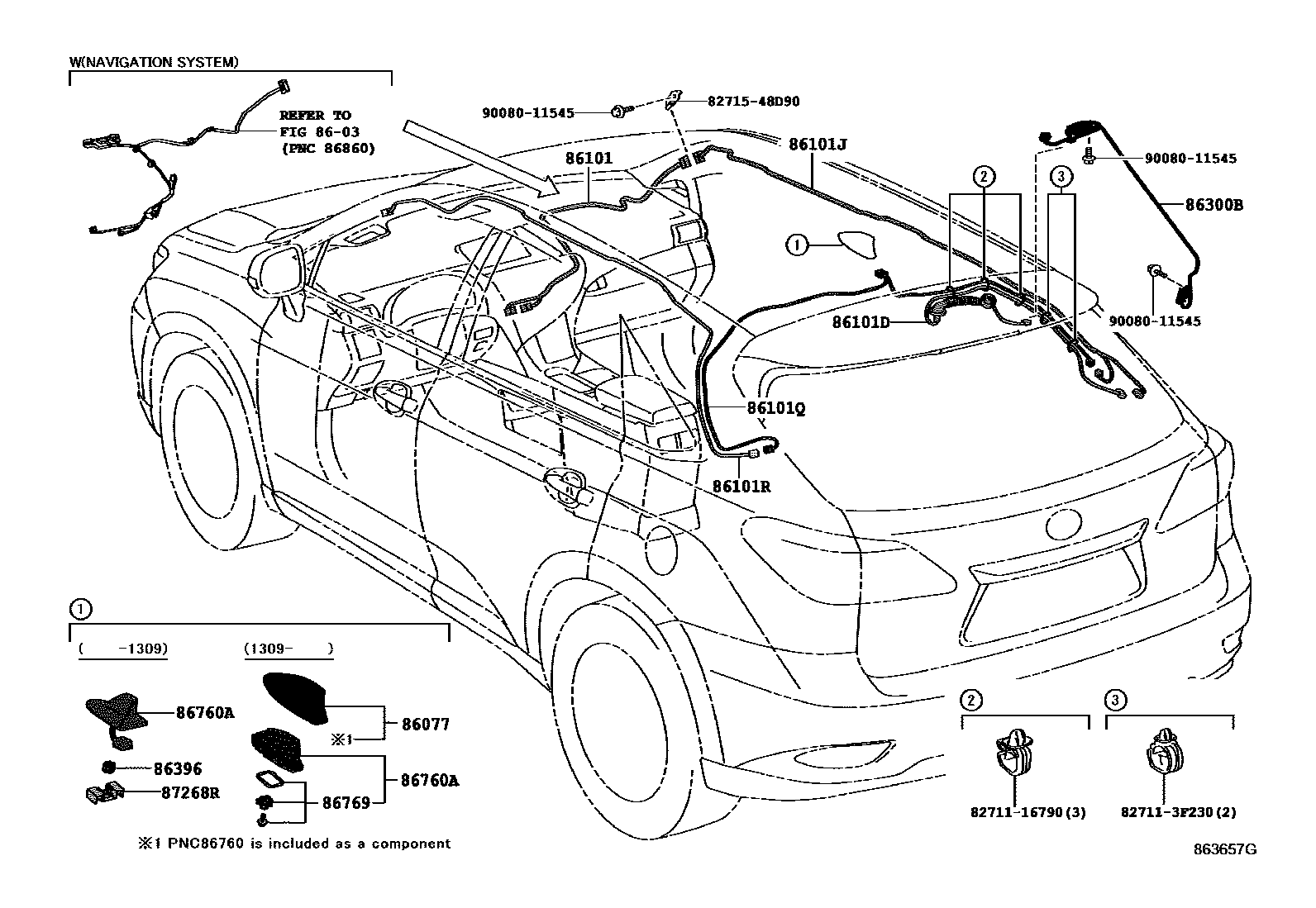

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86077COVER KIT, ANTENNA

main86077-76010-A0i201309

WHITE PEARL CS.,077

main86077-76010-A1i201309

WHITE NOVA GF.,083; WHITE NOVA GF.,083 ,2MH

main86077-76010-B0i201309

MERCURY GRAY MC.,1H9

main86077-76010-B1i201309

PLATINUM SILVER ME.,1J4

main86077-76010-C0i201309

BLACK,212

main86077-76010-C2i201309

STARLIGHT BLACK GF.,217

main86077-76010-D2i201309

GARNET RED MC.,3S0

main86077-76010-E0i201309-201403

FIRE AGATE M.M.,4V3

main86077-76010-E1i201309

SLEEK ECRU ME.,4U7

main86077-76010-J1i201309

LAPIS LAZULI MC.,8V3

86101CORD SUB-ASSY, ANTENNA

main86101-0E100i200901-201204

EMV & NAVIGATION SYSTEM-WITH

main86101-0E180i201204

EMV & NAVIGATION SYSTEM-WITH

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-0E090i200901-201204

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-0E080i200901-201204

main86101-0E400i201204

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86101-0E270supersedes 86101-0E110i200901-200908

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT)

main86101-0E271supersedes 86101-0E110i200908-201204

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT)

main86101-0E420supersedes 86101-0E410i201204-201309

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT)

main86101-0E670supersedes 86101-0E660i201309

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT)

86101RCORD SUB-ASSY, ANTENNA, NO.5

main86101-0E280i200901-200908

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT)

main86101-0E281i200908-201204

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT)

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-48280i200901-201204

main86300-48330i201204-201510

86396NUT, ANTENNA

main86396-30050i200901-201011

main86396-47010i201011-201204

86760AANTENNA ASSY, TELEPHONE

main86760-0E010supersedes 86760-0E020i201309

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT)

main86760-48050-A0supersedes 86760-48030-A0i201204-201309

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT),WHITE PEARL CS.,077

main86760-48050-B0supersedes 86760-48030-B0i200901-201108

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT),DK.GRAY MC.,1G0

main86760-48050-B1supersedes 86760-48030-B2i200901-201204

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT),SILVER M.M.,1G1

main86760-48050-B2supersedes 86760-48030-B3i201204-201309

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT),MERCURY GRAY MC.,1H9

main86760-48050-B3supersedes 86760-48030-B4i201204-201309

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT),PLATINUM SILVER ME.,1J4

main86760-48050-C0supersedes 86760-48030-C0i200901-201204

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT),BLACK,212

main86760-48050-C2supersedes 86760-48030-C2i201204-201309

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT),STARLIGHT BLACK GF.,217

main86760-48050-D0supersedes 86760-48030-D0i200901-201204

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT),RED MC.CS.,3R1

main86760-48050-D1supersedes 86760-48030-D1i201204-201309

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT),GARNET RED MC.,3S0

main86760-48050-E0supersedes 86760-48030-E0i200901-201008

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT),BEIGE ME.,4T1

main86760-48050-E1supersedes 86760-48030-E1i200901-201008

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT),SABLE M.M.,4T5

main86760-48050-E2supersedes 86760-48030-E2i201204-201309

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT),SLEEK ECRU ME.,4U7

main86760-48050-E3supersedes 86760-48030-E3i201204-201309

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT),FIRE AGATE M.M.,4V3

main86760-48050-J0supersedes 86760-48030-J0i200901-201008

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT),DK.BLUE MC. CC.,8U0

main86760-48050-J1supersedes 86760-48030-J1i200901-201204

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT),SILVERY BLUE ME.,8U9

main86760-48050-J2supersedes 86760-48030-J2i201204-201309

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT),LAPIS LAZULI MC.,8V3

86769HOUSING, ROOF ANTENNA

main86769-53010i201309

87268RPROTECTOR, TELEPHONE ANTENNA

main87268-48020supersedes 87268-50021i200901-201009

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT)

main87268-48021supersedes 87268-50021i201010-201204

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT)

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

827113F230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F230

8271548D90BRACKET,WIRING HARNESS CLAMP

main82715-48D90

9008011545

main90080-11545
