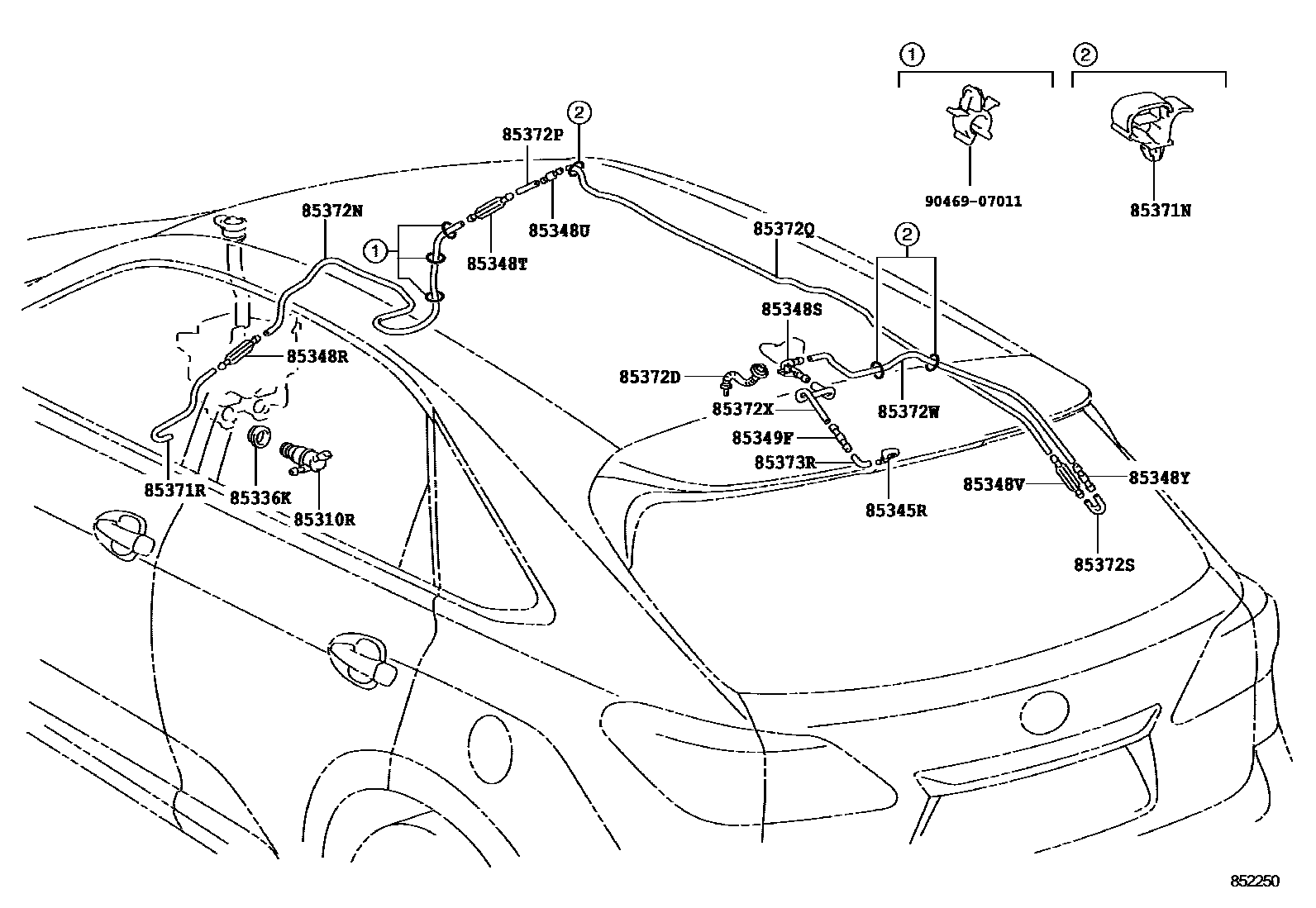

REAR WASHER
85310RMOTOR ASSY, REAR WASHER
85336KPROTECTOR, WASHER JAR
85345RNOZZLE, REAR WASHER
sub85391-52170
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85349FJOINT, REAR WASHER HOSE, NO.1
85371NCLAMP, REAR WASHER HOSE
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=280
L=280,CANADA SPEC
L=280,CANADA SPEC&ULTRA PREMIUM PACKAGE
L=280,ULTRA PREMIUM PACKAGE
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=2100
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=90
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=2550
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
L=770
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
L=1450(*H,L=290)
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
9046907011
main90469-07011
21 parts on this diagram · 1 diagram in section
