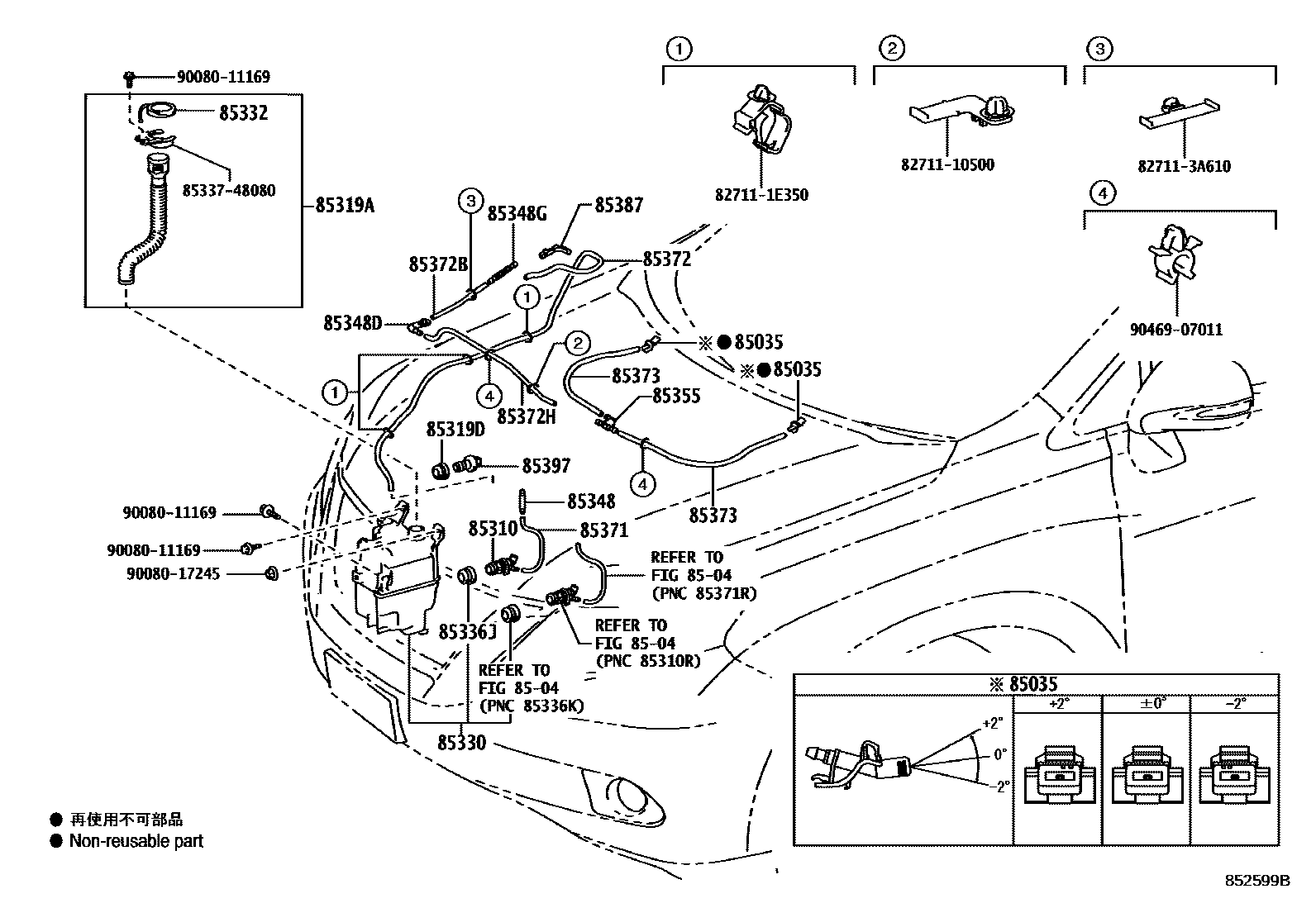

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE 0
ANGLE -2
ANGLE +2
8504
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85319DPACKING, FRONT WASHER
85330JAR ASSY, WINDSHIELD WASHER
85332CAP, WINDSHIELD WASHER JAR
85336JPROTECTOR, WASHER JAR
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85355VALVE, WINDSHIELD WASHER HOSE
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=280,CANADA SPEC&ULTRA PREMIUM PACKAGE
L=280,ULTRA PREMIUM PACKAGE
L=280
L=280,CANADA SPEC
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1340
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=200
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=700
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85397SWITCH ASSY,LEVEL WARNING
8271110500WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10500
827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E350
827113A610WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A610
8533748080CASE, LEVEL WARNING SWITCH
main85337-48080
9008011169
main90080-11169
9008017245
main90080-17245
9046907011
main90469-07011
26 parts on this diagram · 4 diagrams in section
