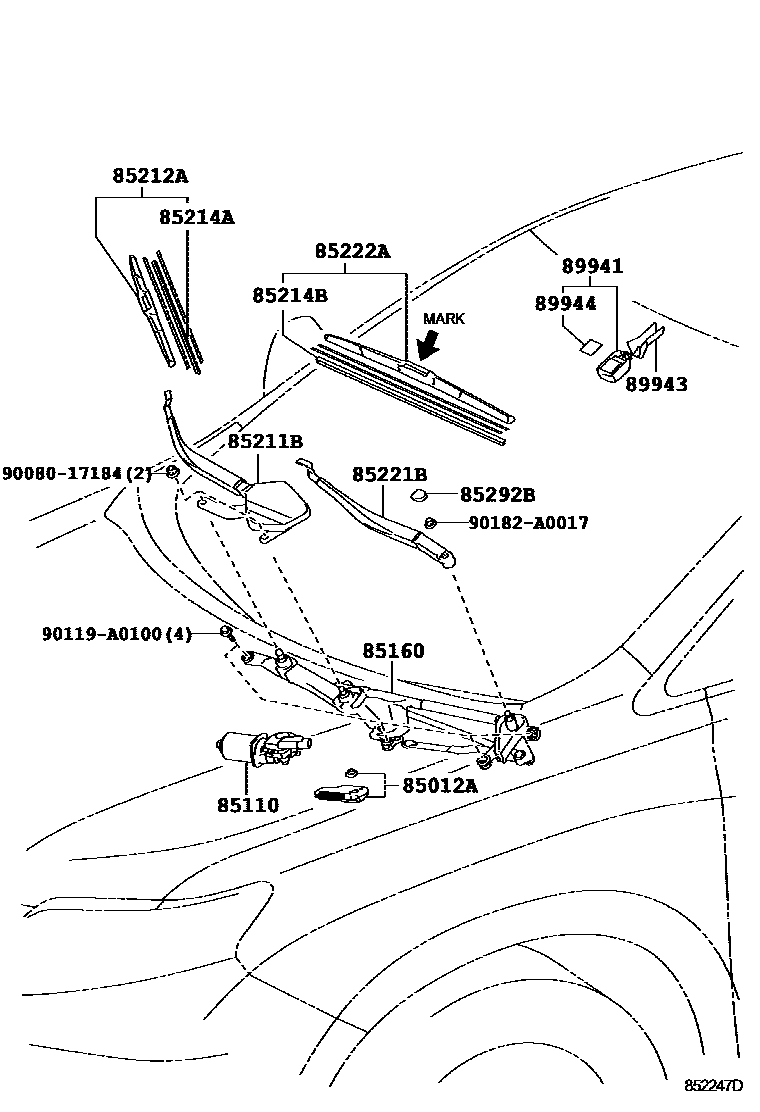

WINDSHIELD WIPER

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-0E010iGGL1#..NAP200901-201204

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0E020iGGL1#..NAP200901-201204

85160LINK ASSY, WINDSHIELD WIPER

main85150-0E020iGGL1#..NAP200901-201204

85211BARM, FRONT WIPER, RH

main85211-0E020iGGL1#..NAP200901-201204

85212ABLADE, FR WIPER, RH

main85212-0E020iGGL1#..NAP200901-201204

85214ARUBBER, WIPER, RH

main85214-0E030iGGL1#..NAP200901-201204

85214BRUBBER, WIPER, LH

main85214-0E040iGGL1#..NAP200901-201204

BLADE MARK = LB2

main85214-0T050iGGL1#..NAP201111-201204

BLADE MARK = LB0

85221BARM, FRONT WIPER, LH

main85221-0E020iGGL1#..NAP200901-201204

85222ABLADE, FR WIPER, LH

main85222-0E020iGGL1#,GYL1#..NAP201204

MARK : LB2

main85222-0T030iGGL1#,GYL1#..NAP201204

MARK : LB0

85292BCAP, FRONT WIPER ARM HEAD

main85292-AA010iGGL1#..NAP200901-201204

89941SENSOR, RAIN

main89941-30020iGGL1#..NAP200901-201007

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main89941-48070iGGL1#..NAP201008-201102

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main89941-48071iGGL1#..NAP201103-201108

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main89941-48072iGGL1#..NAP201109-201204

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

89943COVER, RAIN SENSOR

main89943-22030iGGL1#..NAP200901-201204

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

89944TAPE, RAIN SENSOR

main89944-42010iGGL1#..NAP200901-201204

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

9008017184

main90080-17184

90119A0100

main90119-A0100

90182A0017

main90182-A0017

16 parts on this diagram · 1 diagram in section
