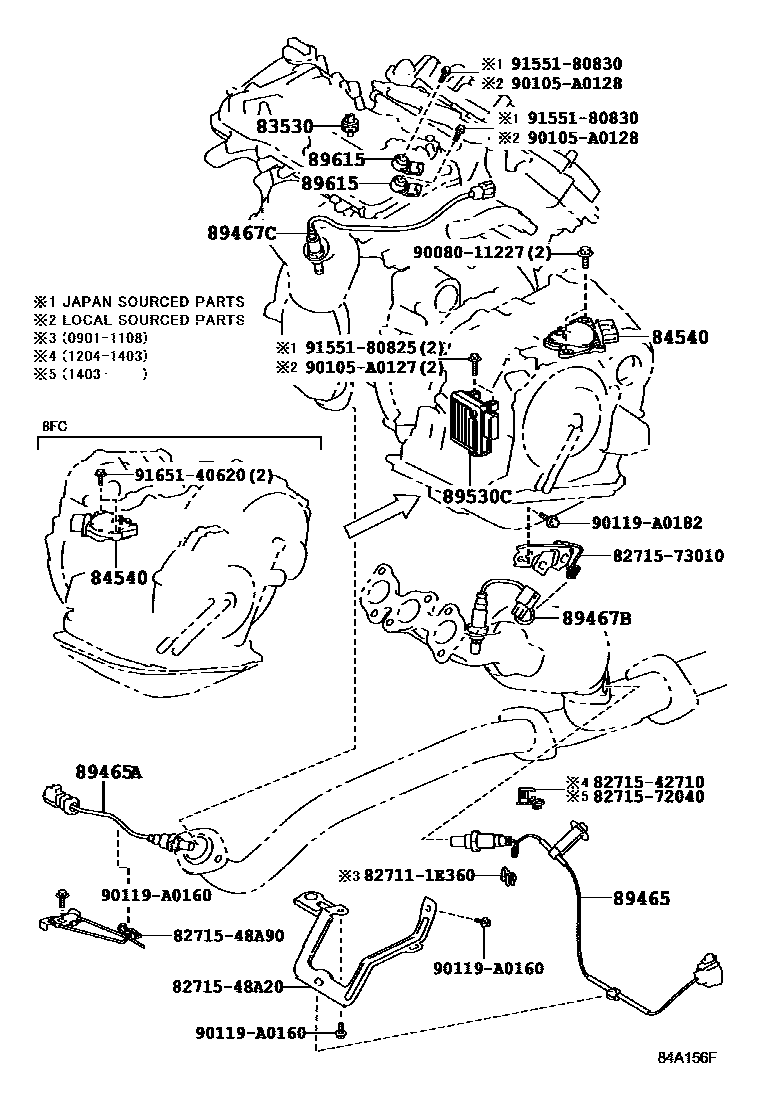

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-0E010iGGL1#,GYL1#..NAP200901-201204

(L)

main83530-28020iGGL1#..NAP200901-201204

(J)

84540SWITCH ASSY, NEUTRAL START

main84540-07010iGGL1#..NAP200901-201510

main84540-48030iGGL15..NAP..8FC201207-201510

89465SENSOR, OXYGEN

main89465-0E050iGGL1#..NAP200901-201403

main89465-0E130iGGL1#..NAP201403

main89465-0E150iGYL1#..NAP201403

89465ASENSOR, OXYGEN NO.2

main89465-08120iGGL1#..NAP201403

main89465-0E040iGGL1#..NAP200901-201403

main89465-0E240iGYL1#..NAP201411

main89465-48350iGYL1#..NAP201403-201410

89467BSENSOR, AIR FUEL RATIO

main89467-0E030iGGL1#..NAP201002-201010

main89467-0E040iGGL1#..NAP200901-201001

main89467-0E140iGGL1#..NAP201010-201403

main89467-0E200iGGL1#..NAP201403

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-0E110iGGL1#..NAP200901-201001

sub89467-0E120

main89467-0E120iGGL1#..NAP201002-201010

main89467-0E130iGGL1#..NAP201010-201403

main89467-0E190iGGL1#..NAP201403

89530CCOMPUTER ASSY, TRANSMISSION CONTROL

main89530-0E010iGGL1#..NAP200901-201007

sub89530-0E050

main89530-0E050iGGL1#..NAP201008-201109

main89530-0E060iGGL1#..NAP201109-201210

sub89530-0E061

main89530-0E061iGGL1#..NAP..6FC201211-201403

main89530-0E090iGGL1#..NAP..6FC201403

main89535-48010iGGL15..NAP..8FC201207-201307

sub89535-48011

main89535-48011iGGL15..NAP..8FC201308-201309

sub89535-48012

main89535-48012iGGL15..NAP..8FC201309

89615SENSOR, KNOCK CONTROL

main89615-06010iGGL1#..NAP200901-201204

(L)

main89615-20090iGYL1#..NAP201403

main89615-20090iGGL1#..NAP200901-201204

(J)

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

8271542710BRACKET,WIRING HARNESS CLAMP

main82715-42710

8271548A20BRACKET,WIRING HARNESS CLAMP

main82715-48A20

8271548A90BRACKET,WIRING HARNESS CLAMP

main82715-48A90

8271572040BRACKET,WIRING HARNESS CLAMP

main82715-72040

8271573010BRACKET,WIRING HARNESS CLAMP

main82715-73010

9008011227

main90080-11227

90105A0127

main90105-A0127

90105A0128

main90105-A0128

90119A0160

main90119-A0160

90119A0182

main90119-A0182

9155180825

main91551-80825

9155180830

main91551-80830

9165140620

main91651-40620
