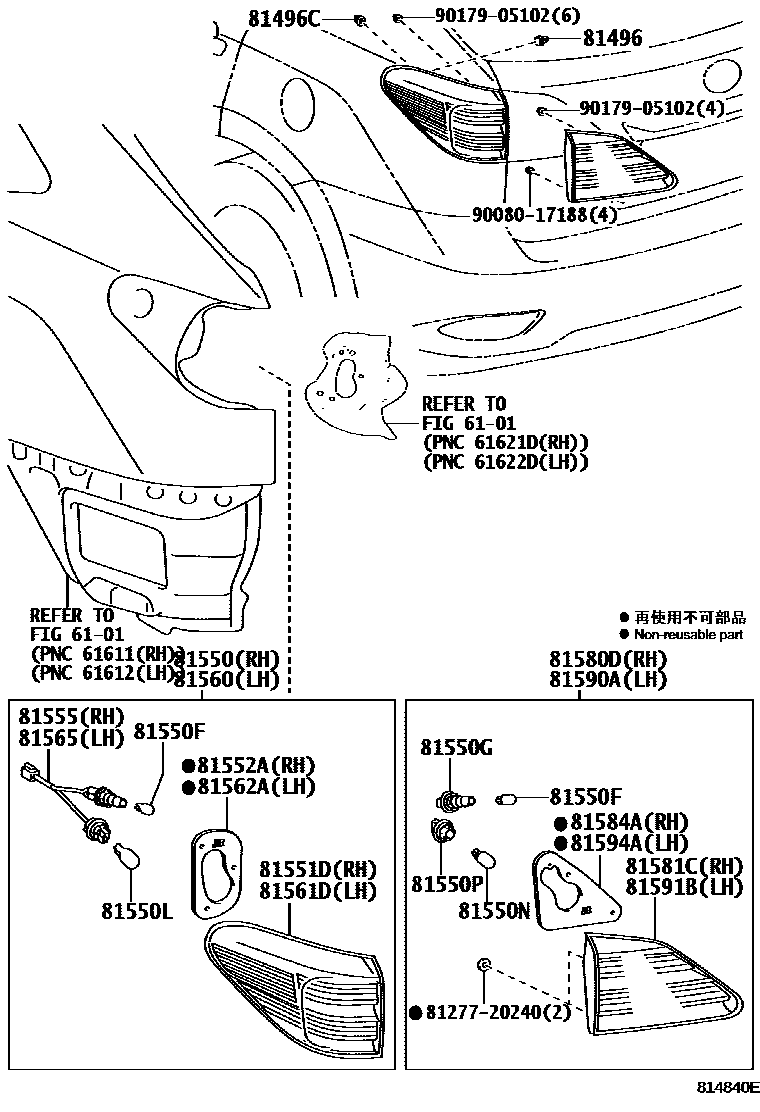

REAR COMBINATION LAMP
6101SIDE MEMBER
81496GUIDE, REAR COMBINATION LAMP
81496CGUIDE, REAR COMBINATION LAMP, NO.2
(L)
(J)
81550LAMP ASSY, REAR COMBINATION, RH
81550FBULB, TAILLAMP
81550GSOCKET, TAILLAMP
81550LBULB, REAR TURN SIGNAL LAMP
81550NBULB, BACK UP LAMP
81550PSOCKET, BACK UP LAMP
81551DLENS & BODY, REAR COMBINATION LAMP, RH
81552AGASKET, REAR COMBINATION LAMP, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81560LAMP ASSY, REAR COMBINATION, LH
81561DLENS & BODY, REAR COMBINATION LAMP, LH
81562AGASKET, REAR COMBINATION LAMP, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81580DLAMP ASSY, REAR, RH
81581CLENS AND BODY, REAR LAMP, RH
81584AGASKET, REAR LAMP RH
81590ALAMP ASSY, REAR, LH
81591BLENS AND BODY, REAR LAMP, LH
81594AGASKET, REAR LAMP LH
8127720240SPACER, LICENSE PLATE LAMP RIM AND LENS
main81277-20240
9008017188
main90080-17188
9017905102
main90179-05102
25 parts on this diagram · 2 diagrams in section
