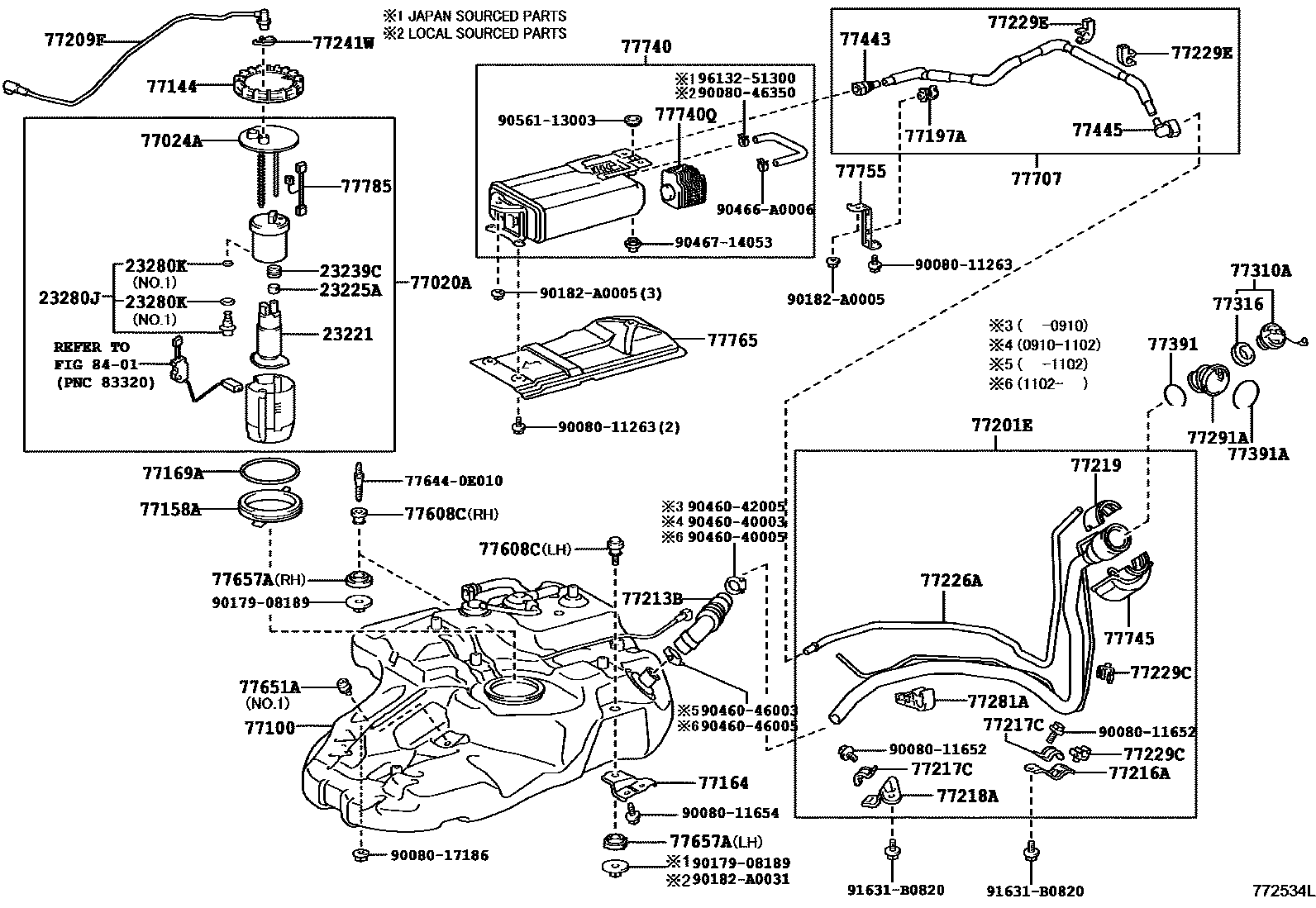

FUEL TANK & TUBE
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
23239CSEAL, FUEL PUMP FILTER
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1
NO.2
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77100TANK ASSY, FUEL
77144RETAINER, FUEL PUMP GAUGE
77158ASUPPORT, TANK SUCTION TUBE
77164BRACKET, FUEL TANK, REAR LH
77169AGASKET, FUEL SUCTION TUBE SET
77197ACLAMP, EVAPORATION VENT TUBE, NO.2
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77219COVER, FUEL TANK FILLER PIPE
77226ATUBE, FUEL TANK BREATHER, NO.6
77229CCLAMP, BREATHER TUBE
77229ECLAMP, BREATHER TUBE
77281ACLAMP, FUEL FILLER PIPE
NO.1
NO.2
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77443CONNECTOR, FUEL TANK VENT
77445CONNECTOR, FUEL TANK VENT, NO.2
77608CCUSHION SET, FUEL TANK
RH
LH
77651ACUSHION, FUEL TANK, NO.1
NO.1
NO.2
77657ACUSHION, FUEL TANK, NO.5
RH
LH
77707TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET
77740QLEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER
77745FILTER, CHARCOAL CANISTER, NO.1
77755BRACKET, CHARCOAL CANISTER OUTLET HOSE
77765PROTECTOR, CHARCOAL CANISTER
8401SWITCH & RELAY & COMPUTER
776440E010BOLT, FUEL TANK
main77644-0E010
9008011263
main90080-11263
9008011652
main90080-11652
9008011654
main90080-11654
9008017186
main90080-17186
9008046350
main90080-46350
9017908189
main90179-08189
90182A0005
main90182-A0005
90182A0031
main90182-A0031
9046040003
main90460-40003
9046040005
main90460-40005
9046042005
main90460-42005
9046046003
main90460-46003
9046046005
main90460-46005
90466A0006
main90466-A0006
9046714053
main90467-14053
9056113003
main90561-13003
91631B0820
main91631-B0820
9613251300
main96132-51300
62 parts on this diagram · 6 diagrams in section
