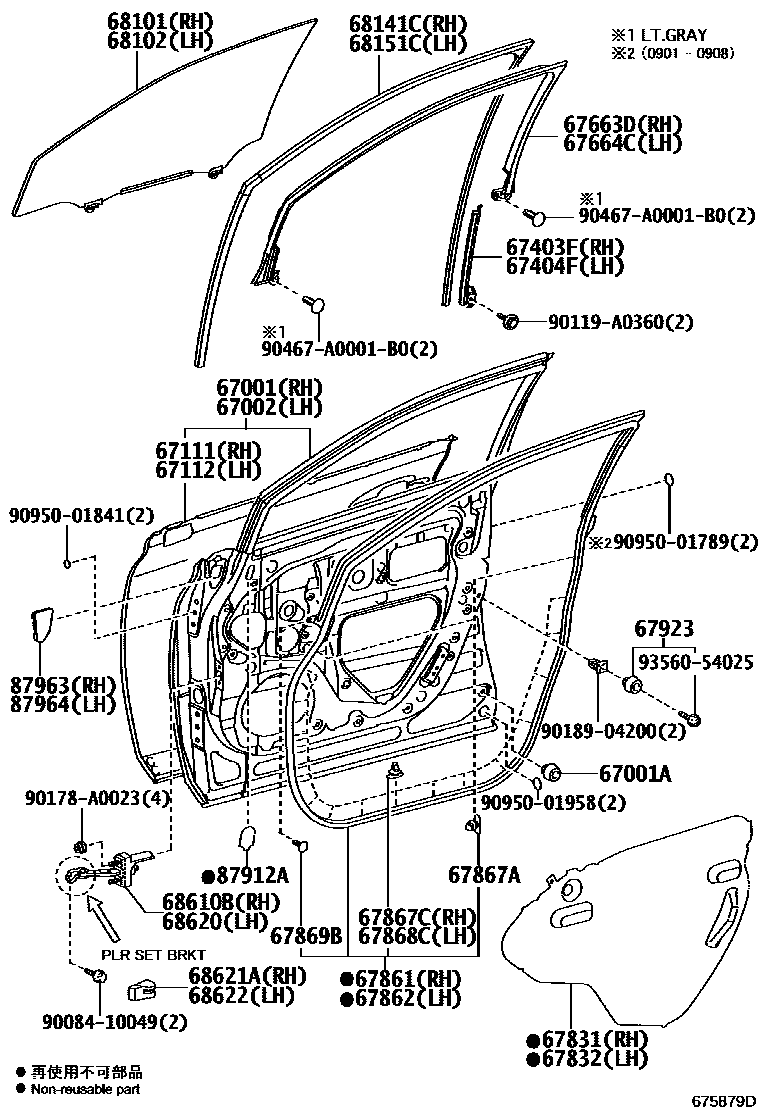

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM 0003 1TRIM CODE

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0E070iGGL1#..NAP200901-201204

67001ACUSHION, FRONT DOOR PANEL

main90541-09069×2iGGL1#..NAP200901-201204

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0E070iGGL1#..NAP200901-201204

67111PANEL, FRONT DOOR, OUTER RH

main67111-0E020iGGL1#..NAP200901-201204

67112PANEL, FRONT DOOR, OUTER LH

main67112-0E020iGGL1#..NAP200901-201204

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0E021iGGL1#..NAP200901-201204

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0E021iGGL1#..NAP200901-201204

67663DGARNISH, DOOR FRAME, RH

main67663-0E020iGGL1#..NAP200901-201204

67664CGARNISH, DOOR FRAME, LH

main67664-0E020iGGL1#..NAP200901-201204

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0E050iGGL1#..NAP200901-201204

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0E050iGGL1#,GYL1#..NAP201204

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0E030iGGL1#..NAP200901-201204

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0E030iGGL1#..NAP200901-201204

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main90467-04034×4iGGL1#..NAP200901-201204

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×15iGGL1#..NAP200901-201204

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×15iGGL1#..NAP200901-201204

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67868-30030×2iGGL1#..NAP200901-201204

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-48060×2iGGL1#..NAP200901-201204

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0E020iGGL1#..NAP200901-200906

*HSEA,T=5.0,GREEN

main68101-0E050iGGL1#..NAP200906-201109

*LAM,T=5.16,GREEN

main68101-0E051iGGL1#..NAP201109-201204

*LAM,T=5.16,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0E020iGGL1#..NAP200901-200906

*HSEA,T=5.0,GREEN

main68102-0E050iGGL1#..NAP200906-201109

*LAM,T=5.16,GREEN

main68102-0E051iGGL1#..NAP201109-201204

*LAM,T=5.16,GREEN

68141CRUN, FRONT DOOR GLASS, RH

main68141-0E020iGGL1#..NAP200901-201204

68151CRUN, FRONT DOOR GLASS, LH

main68151-0E020iGGL1#..NAP200901-201204

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0E020iGGL1#..NAP200901-201004

PLR SET BRKT:BLACK

main68610-0E021iGGL1#..NAP201004-201204

PLR SET BRKT:SILVER

main68610-0E050iGGL1#,GYL1#..NAP201204

68620CHECK ASSY, FRONT DOOR, LH

main68620-0E020iGGL1#..NAP200901-201004

PLR SET BRKT:BLACK

main68620-0E021iGGL1#..NAP201004-201204

PLR SET BRKT:SILVER

main68620-0E050iGGL1#,GYL1#..NAP201204

68621ACOVER, FRONT DOOR CHECK, RH

main68621-0E010iGGL1#..NAP200901-201204

68622COVER, FRONT DOOR CHECK, LH

main68622-0E010iGGL1#..NAP200901-201204

87912APROTECTOR, OUTER MIRROR

main87912-0E010×2iGGL1#..NAP200901-201204

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-0E010iGGL1#..NAP200901-201204

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-0E010iGGL1#..NAP200901-201204

9008410049

main90084-10049

90119A0360

main90119-A0360

90178A0023

main90178-A0023

9018904200

main90189-04200

90467A0001B0

main90467-A0001B0

9095001789

main90950-01789

9095001841

main90950-01841

9095001958

main90950-01958

9356054025

main93560-54025

38 parts on this diagram · 3 diagrams in section
