INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

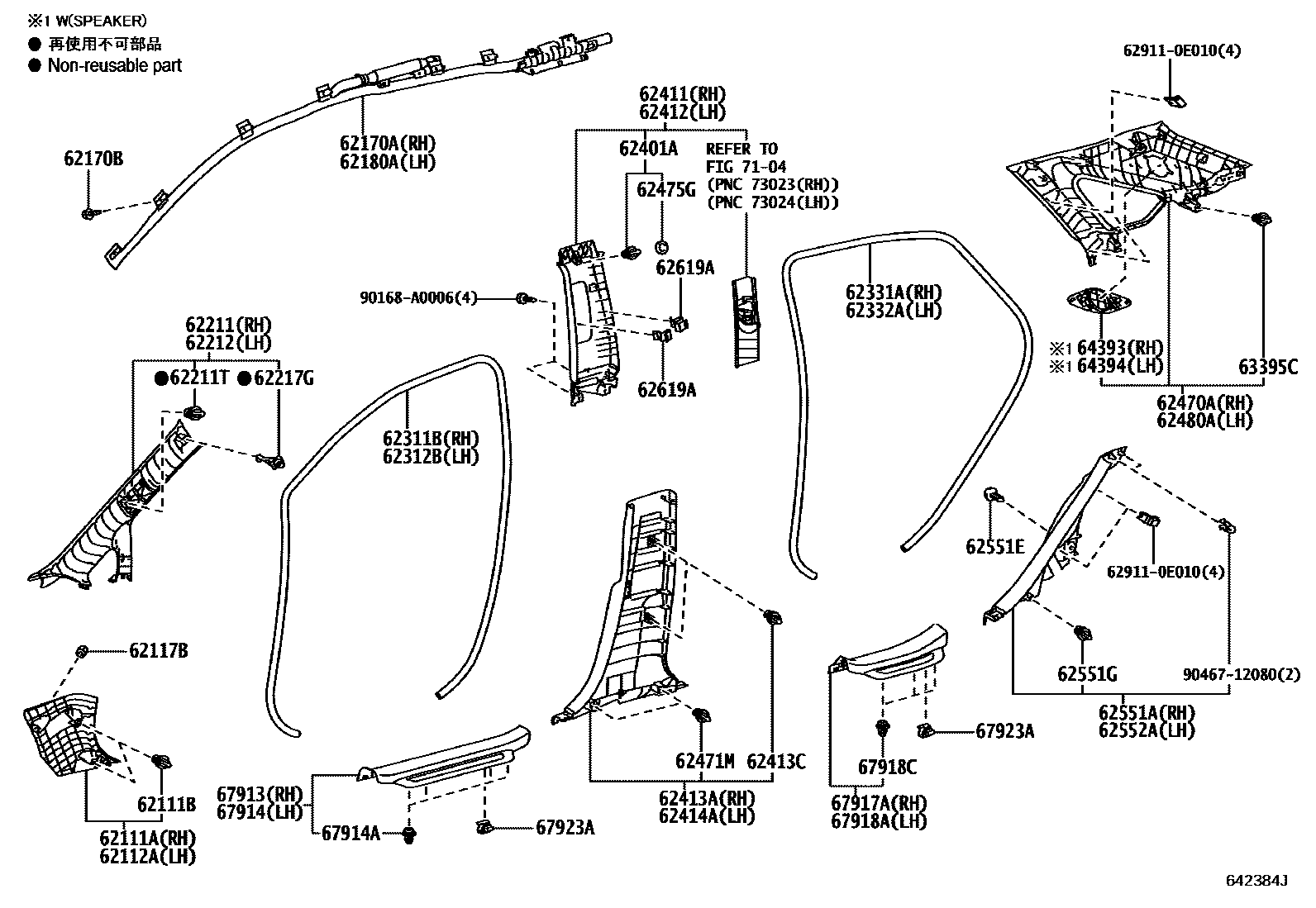

Parts diagram
62111ATRIM SUB-ASSY, COWL SIDE, RH
main62101-0E020-A0i200901-201204
IVORY,TRIM0#
main62101-0E020-B0i200901-201204
LT.GRAY,TRIM1#
main62101-0E020-C0i200901-201204
BLACK,TRIM2#
62111BCLIP(FOR COWL SIDE TRIM)
main90467-A0006×4i201204
62112ATRIM SUB-ASSY, COWL SIDE, LH
main62102-0E020-A0i200901-201204
IVORY,TRIM0#
main62102-0E020-B0i200901-201204
LT.GRAY,TRIM1#
main62102-0E020-C0i200901-201204
BLACK,TRIM2#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
main90467-06147×2i201203-201204
main90467-06193-A2×2i200901-201203
IVORY,TRIM0#
main90467-06193-B5×2i200901-201203
LT.GRAY,TRIM1#
main90467-06193-C0×2i200901-201203
BLACK,TRIM2#
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
main62170-0E020i200901-201204
main62170-0E060i201204-201403
main62170-0E080i201403
62170BBOLT, W/WASHER
main90080-11628×20i201204-201205
(L)
main90119-06869×20i201205-201403
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
main62180-0E020i200901-201204
main62180-0E060i201204-201403
main62180-0E080i201403
62211GARNISH, FRONT PILLAR, RH
main62210-0E020-A1i200901-201204
IVORY,TRIM0#
main62210-0E020-B1i201204-201310
LT. GRAY,TRIM1#,2#,4#
main62210-0E020-C0i201207-201310
BLACK,TRIM2#
main62210-0E081-A0i201310-201406
IVORY,TRIM0#
main62210-0E081-B0i201310-201406
LT.GRAY,TRIM1#,2#,4#
main62210-0E081-C0i201310-201406
BLACK,TRIM2#,3#
main62210-0E082-A0i201406
IVORY,TRIM0#
main62210-0E082-B0i201406
LT.GRAY,TRIM1#,2#,4#
main62210-0E082-C0i201406
BLACK,TRIM2#,3#
62211TCLIP(FOR FRONT PILLAR GARNISH)
main90467-10188×2i201204
main90950-08005×2i200901-201204
62212GARNISH, FRONT PILLAR, LH
main62220-0E020-A1i200901-201204
IVORY,TRIM0#
main62220-0E020-B1i201204-201310
LT. GRAY,TRIM1#,2#,4#
main62220-0E020-C0i201207-201310
BLACK,TRIM2#
main62220-0E081-A0i201310-201406
IVORY,TRIM0#
main62220-0E081-B0i201310-201406
LT.GRAY,TRIM1#,2#,4#
main62220-0E081-C0i201310-201406
BLACK,TRIM2#,3#
main62220-0E082-A0i201406
IVORY,TRIM0#
main62220-0E082-B0i201406
LT.GRAY,TRIM1#,2#,4#
main62220-0E082-C0i201406
BLACK,TRIM2#,3#
main62220-0E091-A0i201406
IVORY,TRIM0#
main62220-0E091-B0i201406
LT.GRAY,TRIM1#,2#,4#
main62220-48141-A1i201403-201406
IVORY,TRIM0#
main62220-48141-B1i201403-201406
LT.GRAY,TRIM1#,2#,4#
62217GCLIP, FRONT PILLAR GARNISH
main62217-48030i201403-201406
RH
main90950-08005×2i200901-201204
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-0E020i200901-201204
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-0E020i200901-201204
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-0E020i200901-201204
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-0E020i200901-201204
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
main62707-48010×2i200901-201204
62411GARNISH, CENTER PILLAR, RH
main62410-0E020-A0i201204-201310
IVORY,TRIM0#
main62410-0E020-B0i201204-201207
LT.GRAY,TRIM1#,2#,3#,4#
main62410-0E020-C0i201207-201310
BLACK,TRIM21; BLACK,TRIM21,22
main62410-0E080-A0i201310
IVORY,TRIM0#
main62410-0E080-B0i201310
LT.GRAY,TRIM1#,2#,4#
main62410-0E080-C0i201310
BLACK,TRIM2#,3#
62412GARNISH, CENTER PILLAR, LH
main62420-0E020-A0i200901-201204
IVORY,TRIM0#
main62420-0E020-B0i201204-201207
LT.GRAY,TRIM1#,2#,3#,4#
main62420-0E020-C0i201207-201310
BLACK,TRIM21; BLACK,TRIM21,22
main62420-0E080-A0i201310
IVORY,TRIM0#
main62420-0E080-B0i201310
LT.GRAY,TRIM1#,2#,4#
main62420-0E080-C0i201310
BLACK,TRIM2#,3#
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-0E020-A0i201204
IVORY,TRIM0#
main62413-0E020-B0i200901-201204
LT.GRAY,TRIM1#
main62413-0E020-C0i201204
BLACK,TRIM1#,2#,3#,4#
62413CCLIP (FOR CENTER LOWER GARNISH)
main90467-A0006×6i201204
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-0E020-A0i201204
IVORY,TRIM0#
main62414-0E020-B0i200901-201204
LT.GRAY,TRIM1#
main62414-0E020-C0i201204
BLACK,TRIM1#,2#,3#,4#
62470AGARNISH ASSY, ROOF SIDE, INNER RH
main62470-0E080-A1supersedes 62470-0E070-A0i200901-201204
AUDIO-DVD CHANGER,MARK LEVINSON 15SPEAKER,IVORY,TRIM0#
main62470-0E080-B1supersedes 62470-0E070-B0i201207
AUDIO-DVD,15SPEAKER,MARK LEVINSON,LT.GRAY,TRIM1#,20,3#,40; AUDIO-DVD,15SPEAKER,MARK LEVINSON,LT.GRAY,TRIM1#,20,30,4#
main62470-0E080-C0supersedes 62470-0E070-C0i201207
AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM21; AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM21,22,31,32
62471MCLIP
main90467-10167×4i200901-201204
62475GSEAL, ROOF SIDE, INNER
main62475-48060×2i201204
62480AGARNISH ASSY, ROOF SIDE, INNER LH
main62480-0E050-A0supersedes 62480-0E040-A0i201204
AUDIO-DVD,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#,40
main62480-0E050-B0supersedes 62480-0E040-B0i201207
AUDIO-DVD,15SPEAKER,MARK LEVINSON,LT.GRAY,TRIM1#,20,3#,40; AUDIO-DVD,15SPEAKER,MARK LEVINSON,LT.GRAY,TRIM1#,20,30,4#
main62480-0E050-C0supersedes 62480-0E040-C0i201207
AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM21; AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM21,22,31,32
62551ACOVER, REAR SEAT SIDE, RH
main62551-0E060-A0i200901-201204
IVORY,TRIM0#
main62551-0E060-B0i200901-201204
LT.GRAY,TRIM1#
main62551-0E060-C0i201204
BLACK,TRIM1#,2#,3#,4#
62551ECLIP(FOR REAR SEAT SIDE GARNISH)
main90467-A0001-A1×4i200901-201204
IVORY,TRIM0#
main90467-A0001-B0×4i200901-201204
LT.GRAY,TRIM1#
main90467-A0001-C0×4i200901-201204
BLACK,TRIM2#
62551GCLIP
main62489-0E010×2i201204
main63395-12150×2i200901-200906
62552ACOVER, REAR SEAT SIDE, LH
main62552-0E030-A0i200901-201204
IVORY,TRIM0#
main62552-0E030-B0i200901-201204
LT.GRAY,TRIM1#
main62552-0E030-C0i200901-201204
BLACK,TRIM2#
62619APLATE, SIDE TRIM SET
main62619-0E020×4i200901-201204
63395CCLIP(FOR ROOF SIDE INNER GARNISH)
main63395-12150×16i201204
64393GRILLE, REAR SPEAKER, NO.2 RH
main64393-0E010-A1i200901-201204
AUDIO-DVD CHANGER,MARK LEVINSON 15SPEAKER,IVORY,TRIM0#
main64393-0E010-B1i201204-201207
AUDIO-DVD,15SPEAKER,MARK LEVINSON,LT.GRAY,TRIM1#,2#,3#,40
main64393-0E010-C0i201207
AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM21; AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM21,22,31,32
64394GRILLE, REAR SPEAKER, NO.2 LH
main64394-0E010-A0i201207
AUDIO-DVD,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main64394-0E010-B0i201207
AUDIO-DVD,15SPEAKER,MARK LEVINSON,LT.GRAY,TRIM1#,20,3#,40; AUDIO-DVD,15SPEAKER,MARK LEVINSON,LT.GRAY,TRIM1#,20,30,4#
main64394-0E010-C0i201207
AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM21; AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM21,22,31,32
67913PLATE, FRONT DOOR SCUFF, RH
main67910-0E020-A0i201204
IVORY,TRIM0#
main67910-0E020-C0i201403
BLACK,TRIM1#,2#,4#
main67910-0E050-C0i201207
BLACK,TRIM1#,2#,3#,4#
main67910-0E030-A0supersedes 67910-0E020-A0i200901-201204
ULTRA PREMIUM PACKAGE,IVORY,TRIM0#
main67910-0E030-B0supersedes 67910-0E020-B0i200901-201204
ULTRA PREMIUM PACKAGE,LT.GRAY,TRIM1#
main67910-0E030-C0supersedes 67910-0E020-C0i201204
ULTRA PREMIUM PACKAGE,BLACK,TRIM1#,2#,3#,4#
main67910-0E060-A0i201403
ULTRA PREMIUM PACKAGE,IVORY,TRIM0#
main67910-0E060-C0i201403
ULTRA PREMIUM PACKAGE,BLACK,TRIM1#,2#,4#
67914PLATE, FRONT DOOR SCUFF, LH
main67920-0E020-A0i201204
IVORY,TRIM0#
main67920-0E020-C0i201403
BLACK,TRIM1#,2#,4#
main67920-0E050-C0i201207
BLACK,TRIM1#,2#,3#,4#
main67920-0E030-A0supersedes 67920-0E020-A0i200901-201204
ULTRA PREMIUM PACKAGE,IVORY,TRIM0#
main67920-0E030-B0supersedes 67920-0E020-B0i200901-201204
ULTRA PREMIUM PACKAGE,LT.GRAY,TRIM1#
main67920-0E030-C0supersedes 67920-0E020-C0i201204
ULTRA PREMIUM PACKAGE,BLACK,TRIM1#,2#,3#,4#
main67920-0E060-A0i201403
ULTRA PREMIUM PACKAGE,IVORY,TRIM0#
main67920-0E060-C0i201403
ULTRA PREMIUM PACKAGE,BLACK,TRIM1#,2#,4#
67914ACLIP(FOR SCUFF PLATE)
main63395-12150×8i200901-201204
67917APLATE, REAR DOOR SCUFF, RH
main67930-0E020-A0i201204
IVORY,TRIM0#
main67930-0E020-B0i200901-201204
LT.GRAY,TRIM1#
main67930-0E020-C0i200901-201204
BLACK,TRIM2#
67918APLATE, REAR DOOR SCUFF, LH
main67940-0E020-A0i200901-201204
IVORY,TRIM0#
main67940-0E020-B0i200901-201204
LT.GRAY,TRIM1#
main67940-0E020-C0i201204
BLACK,TRIM1#,2#,3#,4#
67918CCLIP(FOR REAR SCUFF PLATE)
main90467-10167×6i200901-201204
67923ACLAMP, DOOR SCUFF PLATE, NO.1
main67923-30030×4i200901-201204
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
629110E010WEATHERSTRIP, CENTER FRONT SIDE WINDOW, CENTER
main62911-0E010
90168A0006
main90168-A0006
9046712080
main90467-12080

44 parts on this diagram · 2 diagrams in section
